Especificações Técnicas

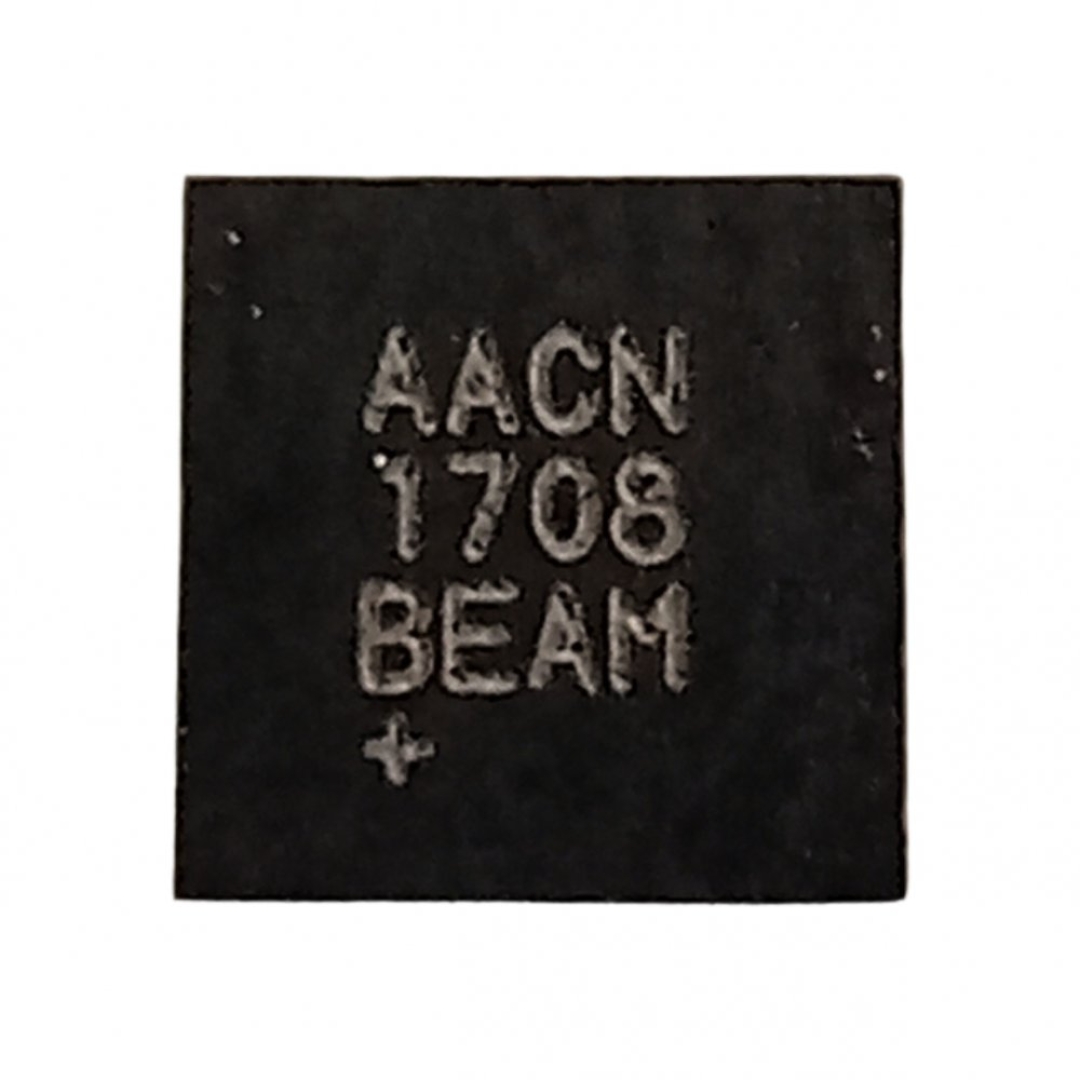

ATENÇÃO: ESTE CI TEM CÓDIGO MARCADO NO COMPONENTE COMO: AACN 1708 BEAM (VOCÊ NÃO ENCONTRARÁ O CÓDIGO MAX5535 NO COMPONENTE) GENERAL DESCRIPTION DIGITAL TO ANALOG CONVERTER  DAC DUAL, ULTRALOWPOWER, 12BIT, VOLTAGEOUTPUT DACS THE MAX5532MAX5535 ARE DUAL, 12BIT, ULTRALOWPOWER, VOLTAGEOUTPUT, DIGITALTOANALOG CONVERTERS (DACS) OFFERING RAILTORAIL BUFFERED VOLTAGE OUTPUTS. THE DACS OPERATE FROM A 1.8V TO 5.5V SUPPLY AND CONSUME LESS THAN 5A, MAKING THE DEVICES SUITABLE FOR LOWPOWER AND LOWVOLTAGE APPLICATIONS. A SHUTDOWN MODE REDUCES OVERALL CURRENT, INCLUDING THE REFERENCE INPUT CURRENT, TO JUST 0.18A. THE MAX5532MAX5535 USE A 3WIRE SERIAL INTERFACE THAT IS COMPATIBLE WITH SPI, QSPI, AND MICROWIRE. - UPON POWERUP, THE MAX5532MAX5535 OUTPUTS ARE DRIVEN TO ZERO SCALE, PROVIDING ADDITIONAL SAFETY FOR APPLICATIONS THAT DRIVE VALVES OR FOR OTHER TRANSDUCERS THAT NEED TO BE OFF DURING POWERUP. THE ZEROSCALE OUTPUTS ENABLE GLITCHFREE POWERUP. APPLICATIONS PORTABLE BATTERYPOWERED DEVICES INSTRUMENTATION AUTOMATIC TRIMMING AND CALIBRATION IN FACTORY OR FIELD PROGRAMMABLE VOLTAGE AND CURRENT SOURCES INDUSTRIAL PROCESS CONTROL AND REMOTE INDUSTRIAL DEVICES REMOTE DATA CONVERSION AND MONITORING CHEMICAL SENSOR CELL BIAS FOR GAS MONITORS PROGRAMMABLE LCD BIAS   MANUFACTURER: ANALOG DEVICES INC. PRODUCT CATEGORY: DIGITAL TO ANALOG CONVERTERS DAC ROHS:   SERIES: MAX5535 RESOLUTION: 12 BIT NUMBER OF CHANNELS: 2 CHANNEL INTERFACE TYPE: 3WIRE, MICROWIRE, QSPI, SPI MINIMUM OPERATING TEMPERATURE: 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: TQFNEP12 PACKAGING: REEL BRAND: ANALOG DEVICES / MAXIM INTEGRATED DEVELOPMENT KIT: MAX5535EVKIT HEIGHT: 0.73 MM NUMBER OF CONVERTERS: 2 CONVERTER OPERATING SUPPLY VOLTAGE: 2.5 V, 3.3 V, 5 V PRODUCT TYPE: DACS DIGITAL TO ANALOG CONVERTERS MAX5535ETC+T MAX5535 DIGITAL TO ANALOG CONVERTER DAC 12BIT MAIORES DETALHES DE MAX5535ETC+T NO SITE DO FABRICANTE: HTTPS://WWW.ANALOG.COM/MEDIA/EN/TECHNICAL-DOCUMENTATION/DATA-SHEETS/MAX5532-MAX5 TAGS DE MAX5535ETC+T: 5535, MAX5535, MAX5532, MAX5533, MAX5535ETC+T, MAX5535ETC, MAX5535ETC+, MAX5535, MAX5532, AACN 1708 BEAM +, MAX5532EUA, MAX5534ETC, MAX5533EUA
