Especificações Técnicas

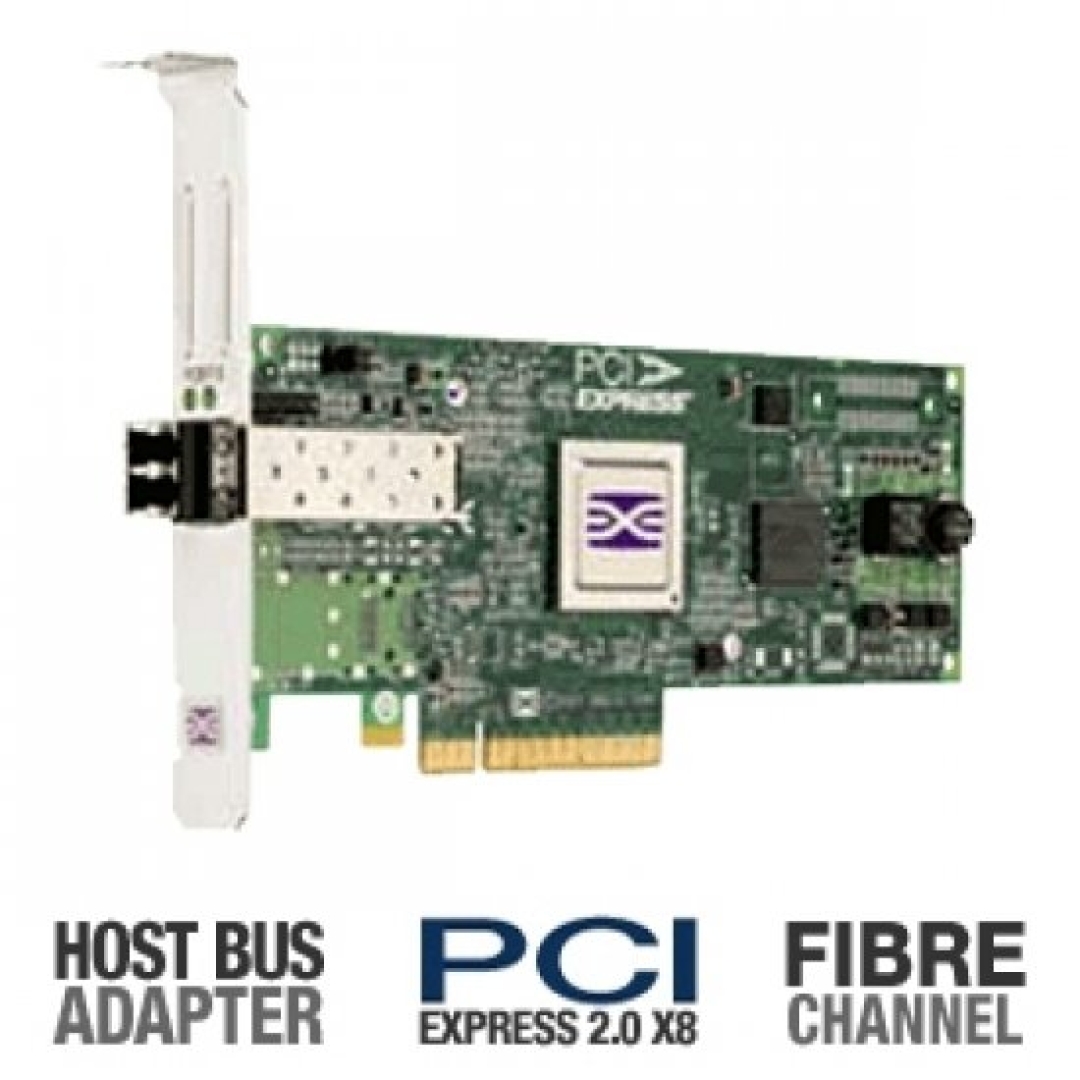

  PRODUCT NAME SINGLE PORT 8GB FC PCI-EXPRESS PRODUCT TYPE FIBRE CHANNEL HOST BUS ADAPTER FIBRE CHANNEL CLASS SUPPORTED CLASS 2 CLASS 3 FORM FACTOR SHORT LENGTH LOW-PROFILE MD2 HOT-PLUGGABLE DATA TRANSFER RATE 8 GBPS FIBRE CHANNEL DIMENSIONS 2.7 HEIGHT X 6.6 WIDTH PRODUCT LINE LIGHTPULSE PORTS/CHANNELS 1 X LC FIBRE CHANNEL HOST INTERFACE PCI EXPRESS 2.0 CONNECTIVITY MEDIA MULTI-MODE GREEN COMPLIANT YES GREEN COMPLIANCE CERTIFICATE/AUTHORITY ROHS CERTIFICATIONS E STANDARDS CLASS 1 LASER PRODUCT PER DHHS 21CFR (J) EN60825-1 UL 60950-1 CSA22.2 NO. 60950-1-03 EN60950-1 FCC RULES PART 15, CLASS AICES-003, CLASS A EN55022, CLASS A EN55024 AS/NZS CISPR22, CLASS A VCCI (JAPAN), CLASS A MIC (KOREA), CLASS A BSMI (TAIWAN), CLASS A DISTANCE SUPPORTED 164 FT 50/125 M FIBER 492 FT 50/125 M FIBER PROTOCOLS FC-SP FC-PLDA FC-TAPE FC-HBA NUMBER OF PORTS/CHANNELS 1 ADDITIONAL INFORMATION PHP HOT-SWAPPABLE BLOCKGUARD READY ENSURES END-TO-END DATA INTEGRITY LPE12000-E EMC LSI LIGHTPULSE HBA 8GB 1X FC MULTIMODE PCIE X8 2 TAGS DE LPE12000-E: LPE12000-E, LPE12002-E, R710, LPE12002, PLACA HBA, FIBRE CHANNEL, LPE 12000E, 12000E, CONTROLADORA HBA, CONTROLADORA DE BACKUP

Informações Adicionais
