Especificações Técnicas

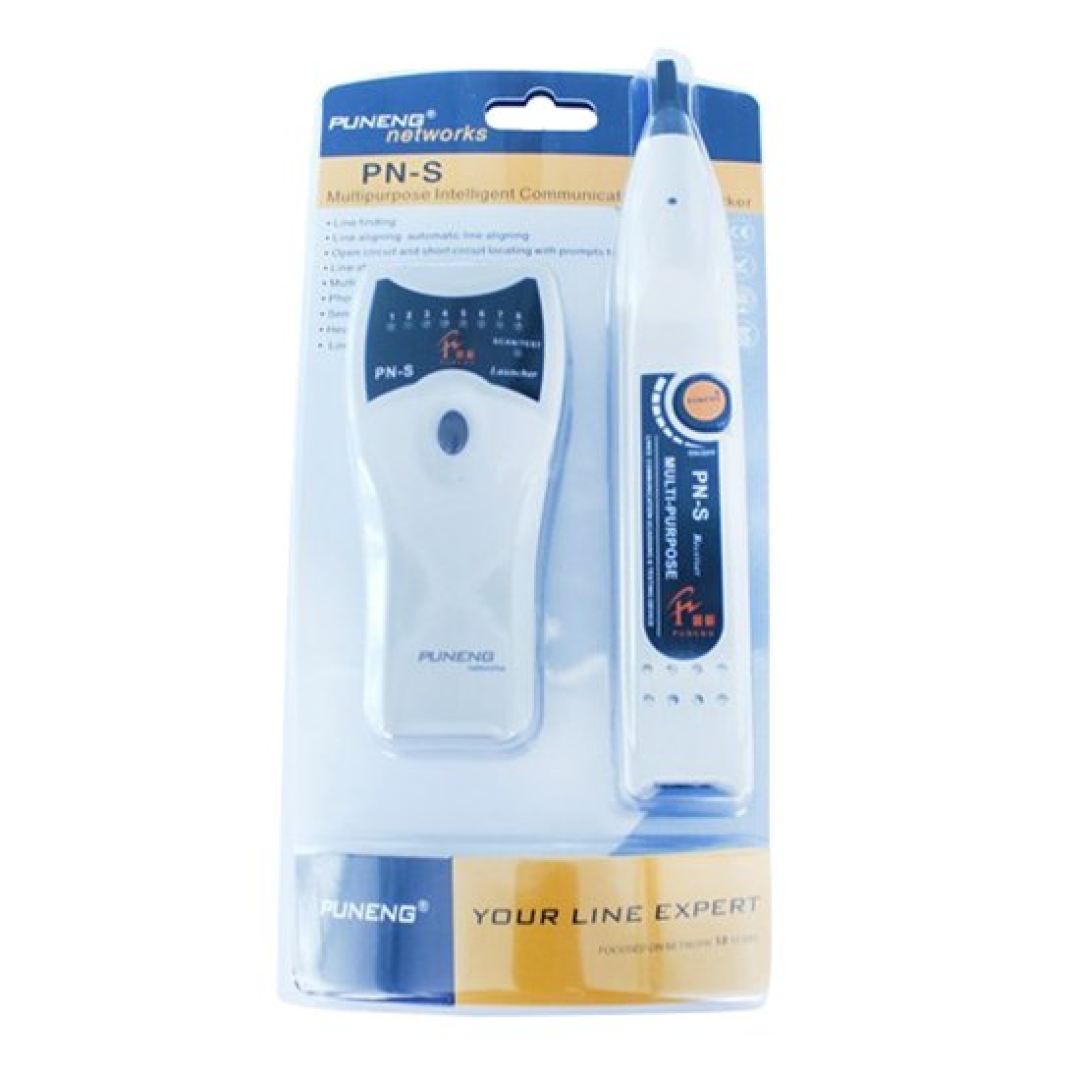

DESCRIPTION PN-S, WHICH IS A MULTIAL COMMUNICATION LINE FINDER ADOPTS UNIQUE DATA TRANSMISSION TECHNIQUE. IT IS OF HIGH QUALITY AND EXCELLENT PERFORMANCE AND CHARACTERIZED BY EASY USE, PROMPTNESS AND ACCURACY. IT IS AN ESSENTIAL TOOL FOR COMMUNICATION LINE INSTALLMENT AND MAINTENANCE MADE BY ENGINEERING TECHNICIANS. IT IS WIDELY APPLIED TO TELEPHONE SYSTEM, COMPUTER NETWORKS AND SITUATION USING METAL LINE WITH LOW VOLTAGE CIRCUIT. FEATURES CABLE TESTER FOR UTP STP RJ45(MANUAL SWITCH) AUTOMATIC EFFICIENT SCAN FOR THE MISS WIRING, DISORDER CABLE, OPEN AND SHORT CIRCUIT TEL BNC TEST AVAILABLE(ADAPTER NEEDED) REMOTELY TEST CABLE UP TO 1000 FT IN LENGTH(REMOTE KIT INCLUDED) PROTECTIVE POWER SWITCH FOR LOW POWER CONSUMPTION HIGH QUALITY PROTECIVE CASE PROVIDES MORE SECURE PROTECTION JUDGE CONTINUITY OF THE CABLES OR WIRES TRACK THE CABLES OR WIRES, AND DIAGNOSE THE BREAK POINT RECEIVER THE TONE SIGNAL ON THE CABLES OR WIRES(TELEPHONE LINE) IDENTIFY THE STATE IN THE WORKING TELEPHONE LINE(CLEAR RING, BUSY) SEND A SINGLE SOLID TONE OR A DUAL ALTERNATING TONE TO THE OBJECT CABLES ORWIRES ITEM SPECIFICATIONS MAIN FUNCTION TRACING AND TESTING CABLE TRACKING TYPE IEEE10BASE-T, EIA/TIA568A, EIA/TIA568B, AT&T258A, TOKENRING, ETC. UTP NETWORK CABLES, 4P4C 4P2C TELEPHONE CABLES AND OTHER CABLES TESTING TYPE UTP/STP/FTP RJ45(8P8C) OTHER FUNCTION LED FLASH AND LOUD SPEAKER POWER 9V ALKALINE BATTERY THE MAX WORKING CURRENT TESTER =20MA RECEIVER =50MA SIGNAL TRANSMISSION FORMAT MUTI-FREQUENCY IMPULSE SIGNAL OUTPUT ELECTRIC STATUS 8VP-P DISTANCE OF SIGNAL TRANSMISSION =3KM DISPLAY VISIBLE LED DISPLAY PROVIDES OPERATION STATUS APPEARANCE DIMENSION EMITTER 136*62.3*30.8MM RECEIVER 210*35.3*30MM WHOLE SET 250*140*45MM PACKAGE INCLUDING ·1 X CABLE TRANSMITTER ·1 X CABLE RECEIVER/TRACKER ·2 X RJ45 CABLE ·2 X RJ11 CABLE ·1 X RJ-11 ADAPTIVE TO RJ-45 ADAPTER ·1 X CABLE WITH CROCODILE CLAMP ·1 X EARPHONE ·1 X INSTRUCTION MANUAL PN-S PUNENG KIT LOCALIZADOR DE CABOS REDE E TELEFONE TAGS DE PN-S: TC-TP1, PN-F, 109.0003.00013, 109.3.13, 109000300013, 109313, TESTADOR DE CABO, TESTADOR DE CABOS, GHI500, GHI-500, LOCALISADOR DE CABO, LOCALIZADOR DE CABO, PN-T, TESTE DE CABO, TESTADOR DE CABO, NETWORK TOOL, NETWORK PROBLE, PUNENG, FERRAMENTAS DE REDE, FERRAMENTAS PARA REDE, TESTADORES DE REDE, TESTADOR DE REDE, LAN TESTER, PN-S, PUNENG PN-S, PNS PUNENG

Informações Adicionais
