Especificações Técnicas

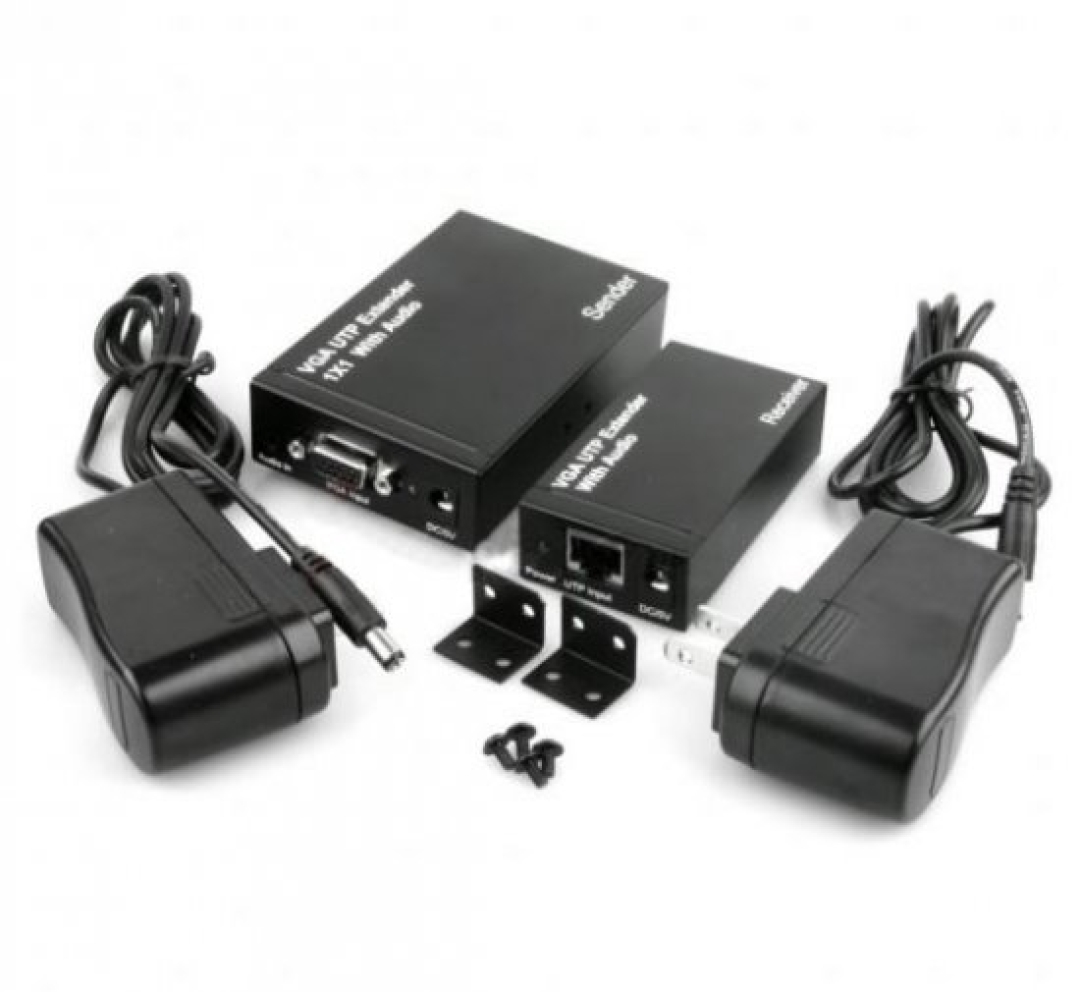

 1. EXTEND VGA VIDEO AND STEREO AUDIO SIGNAL MAX UP TO 300M OVER ONE UTP CAT5E/6 CABLE  2. ADJUSTING GAIN AND TO ADAPT FOR THE DIFFERENT LENGTH OF UTP CABLE.  GAIN: BRIGHTNESS ADJUSTMENT.  SKEW ADJUSTMENT.  3. SUPPORT RESOLUTION MAX UP TO 1920X1200.  4. DUAL OUTPUT AT LOCAL UNIT: 1 X VGA OUTPUT FOR LOCAL SITE, PLUS 1 X UTP OUTPUT FOR REMOTE SITE.  5. WORK WITH MONITORS PROJECTORS, HDTV, AND FLAT PANELS. PACKAGE INCLUDES: 1 X VGA UTP EXTENDER CAT-5E/6 SENDER 1 X VGA UTP EXTENDER CAT-5E/6 RECIVER 1 X POWER ADAPTER 1 X ENLISH USER MANUAL   INPUT CONNECTOR VGA (FEMALE 15PIN), STEREO AUDIO   OUTPUT CONNECTOR VGA (FEMALE 15PIN) OPERATING FREQUENCY  VERTICAL FREQUENCY RANGE 60/75/85HZ   RESOLUTIONS(PC)  640X480;800X600;1024X768;1280X720;1280X768;1280X960;1280X1024;1600X900; 1600X1200;1920X1080;1920X1200   MECHANICAL  SIZE OF VGA UTP EXTENDER 1X1 SPLITTER 441×202×45MM   WEIGHT OF VGA UTP EXTENDER 1X1 SPLITTER  2218G   SIZE OF RECEIVER (L-W-H)  100×65×25.5MM   WEIGHT OF RECEIVER (NET)  385G    LIMITED WARRANTY 1 YEAR PARTS AND LABOR   ENVIRONMENTAL  OPERATING TEMPERATURE  0 TO +70   OPERATING HUMIDITY  10% TO 85 % RH (NO CONDENSATION)   STORAGE TEMPERATURE  -10 TO +80   STORAGE HUMIDITY  5% TO 90 % RH (NO CONDENSATION)   POWER REQUIREMENT: POWER SUPPLY FOR VGA UTP EXTENDER 1X1 SPLITTER  5V@2A, MAX 5W   POWER SUPPLY FOR RECEIVER  5V@2A, MAX 5W   REGULATORY APPROVALS CONVERTER UNIT  FCC,CE,UL   POWER SUPPLY  UL,CE,FCC   ACCESSORIES ADAPTER AC POWER ADAPTER  US STANDARD, UK STANDARD AND SO ON   USER MANUAL  ENGLISH VERSION ZZVC013 KIT EXTENSOR VGA E AUDIO POR LAN CAT5E/6 TAGS DE ZZVC013: 4001, EXTENÇÃO VGA, EXTENDER VIDEO, KIT EXTENSOR VGA, ZZVC013, GVE130, VGA EXTENDER, EXTENDER VGA, VIDEO EXTENDER, VÍDEO EXTENDER, EXTENSÃO DE VÍDEO, EXTENSÃO DE VIDEO, EXTENSAO DE VIDEO, EXTENSÃO DE VIDEO, OEM
