Especificações Técnicas

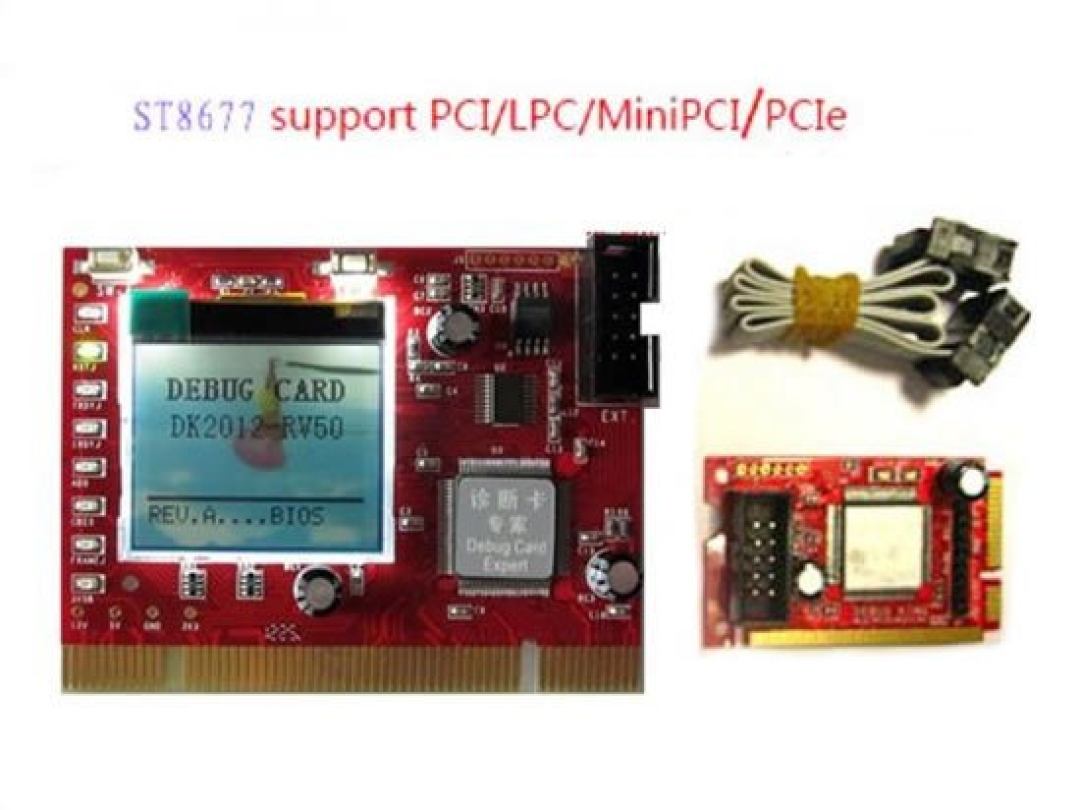

ESPECIALMENTE ÚTIL PARA IDENTIFICAR ONDE ESTÁ O PROBLEMA EM PLACA MÃE PC E NOTEBOOKS QUANDO LIGAR O COMPUTADOR E NÃO ENCONTRAMOS NENHUMA EXPOSIÇÃO OU A MÁQUINA TRAVAR. REDEFINIÇÃO DO BARRAMENTO PCI E CLK INDICADOR DE SINAL DE TRABALHO. (QUANDO O INDICADOR LED PARA INDICAR O SEU RESPECTIVO SINAL É BOM.) LCD DISPLAYS SHOWS DIAGNOSIS RESULT OF MOTHERBOARD. ESPECIALLY HELPFUL TO PINPOINT WHERE IS THE PROBLEM WHEN POWER ON THE COMPUTER AND FIND NO DISPLAY OR MACHINE HANG. PCI BUS RESET AND CLK SIGNAL WORKING INDICATOR.(WHEN INDICATOR LED IS ON TO INDICATE ITS RESPECTIVE SIGNAL IS FINE.) COMPATIBLE WITH PHOENIX, AWARD AND AMI BIOS MOTHERBOARDS WHICH HAS THE PCI BUS SLOT ,MINI PCI,MINI PCI-E OR LPC PORT . INTELLIGENT ANALYSIS OF THE CODE CORRESPONDING TO THE CAUSE OF THE MAL, AND GIVES DIAGNOSTIC PROGRAM! IT CAN DISPLAY THE HALTING EXECUTION AUTOMATIC WITH A COUPLE OF TIMES. THIS CARD IS EASY TO USE FOR END USERS AND IT WORKS WITH HIGH STABILITY. IT IS YOUR IDEAL AND USEFUL TOOL FOR NOTEBOOK REPAIRING PARTNER IT CAN DIAGNOSIS SIGNAL WHICH SHOW THE PROBLEM OF CPU, MEMORY, DISPLAY CARD AND SO ON  LED DISPLAYS SHOWS DIAGNOSIS RESULT OF MOTHERBOARD. ESPECIALLY HELPFUL TO PINPOINT WHERE IS THE PROBLEM WHEN POWER ON THE COMPUTER AND FIND NO DISPLAY OR MACHINE HANG. THIS IS USED TO DISPLAY THE ERROR-CODE AND RST/CLK SIGNALS.   THE DISPLAY PORTION IS COMPOSED WITH TWO 7-SEGMENT LEDS. THE TWO "DOTS" OF THE LEDS ARE USED TO INDICATE THE NOTEBOOK "RST" AND "CLK" STATUS. THE LEFT SIDE "DOT" IS FOR "RST", AND THE RIGHT SIDE "DOT" IS FOR "CLK". WHEN THE NOTEBOOK IS IN "RESET" STATUS, THE LEFT SIDE DOT" WILL BE LIGHTED. AND WHEN THE NOTEBOOK HAS A CORRECT CLK OUTPUT, THE RIGHT SIDE "DOT" WILL BE LIGHTED. APROPRIADO PARA O PORTÁTIL EO DESKTOP EXIBIÇÃO SIMULTÂNEA NO MONITOR VGA E TV SUPORTE 640X480, 800X600, 1024X768 MODO DE EXIBIÇÃO SUPORTA NTSC, PAL, PAL-M, PAL-N E SECAM SISTEMA DE VÍDEO SUPORTE DE CONTROLE DE POSIÇÃO E APOIO BOTÃO DO MENU DE SOBRE-EXPLORAÇÃO E SUB-FUNÇÃO DE DIGITALIZAÇÃO DIRETO ALIMENTADO A PARTIR DE PORTA USB NENHUMA EXIGÊNCIA DRIVER DE SOFTWARE ST8677 KIT DE DIAGNÓSTICO PARA PC E NOTEBOOK TAGS DE ST8677: DIAGNOSTIC POST TEST CARD, PLACA DE DIAGNÓSTICO, PLACA DE TESTE, PC PCI LAPTOP MINI PCI-E LPC DIAGNOSTIC POST TEST CARD, ST8677, OEM

Informações Adicionais
