Especificações Técnicas

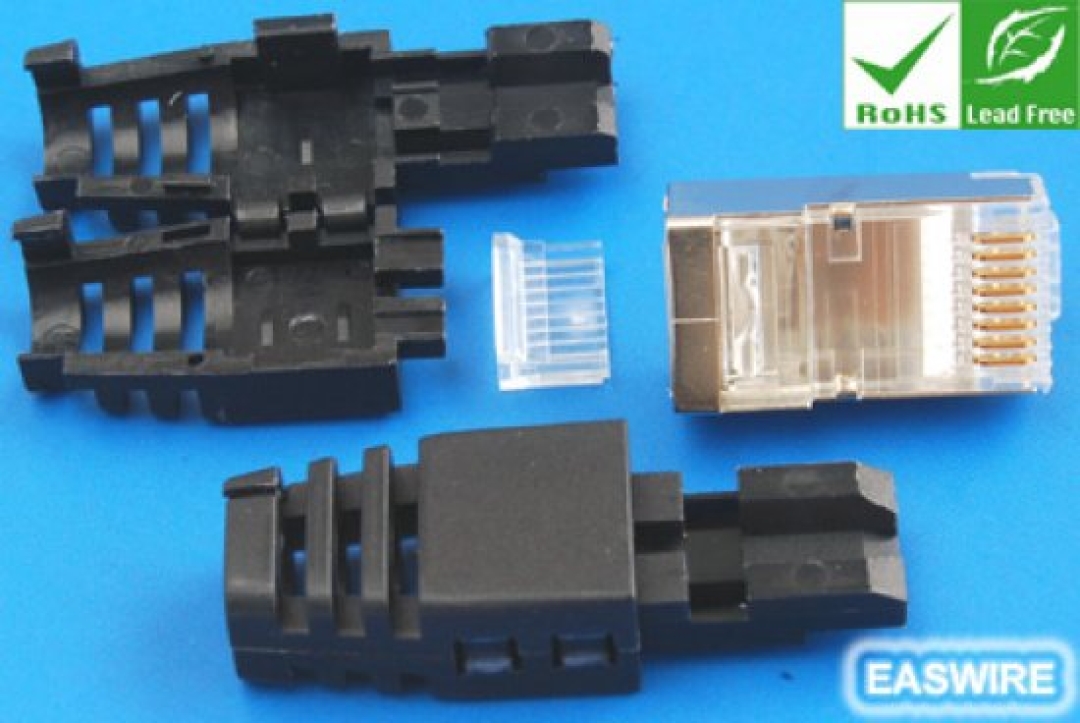

  CHARACTERISTIC ELECTRICAL SPEC. COMPLY AND EXCEEDS THE CAT.6 REQUIREMENTS IN EIA/TIA-568-B.2-2002, ISO/IEC11801-2002 COMPATIBLE TO STANDARD SOCKETS SUPPORTS TRANSMISSION FREQUENCY NOT LESS 350MHZ INTERNATIONAL CERTIFICATED QUALITY CURRENT RATING: 2AMPS (@20C, 250V) INSULATION RESISTANCE:  100M MAX. DC RESISTANCE:  0.1 IMPEDANCE: 20 DIELECTRIC:  500VAC COMPLIED TO HC-3013A-VH8-C6 MECHANICAL SPEC. PHYSICAL SPEC. INSERTION LIFE:  750 TIMES CONTACT FORCE:  100G (USE WITH FCC CERTIFICATED PLUGS) MIN. RETENTION FORCE:  20LBS RATED TEMP.: -40F~125F(-40C~60C) PLASTIC: HIGH-IMPACT, FLAME-RETARDANT UL-RATED 94V-2 THERMOPLASTIC (BODY: PC, CABLE HOLDER: NYLON) CONTACT: PHOSPHOR BRONZE WITH 50 MICRO-INCHES OF LUBRICATED GOLD PLATING OVER 100 MICRO-INCHES NICKEL UNDER PLATE. CONNECTOR: 3-PRONG BLADE INSERTING CONNECT, ACCEPT 23, 24 E 26 AWG SOLID OR STRANDED WIRE WIRE DIAMETER:  CABLE DIAMETER:  TWISTED PAIR DIAMETER:  SEJ-P17-03 KIT CONECTOR RJ45 CAT6 50µ + CAPA TAGS DE SEJ-P17-03: SEJ-P17-03, SEJ-P17-02, CAT.6 RJ45 MODULAR PLUG, 8P8C 50 MICRON GOLD PLATED, RJ-45 CAT6, RJ45 CAT.6, CONECTOR CAT6, CONECTOR CAT.6, CONECTOR GIGABIT CAT6, OEM

Informações Adicionais
