Especificações Técnicas

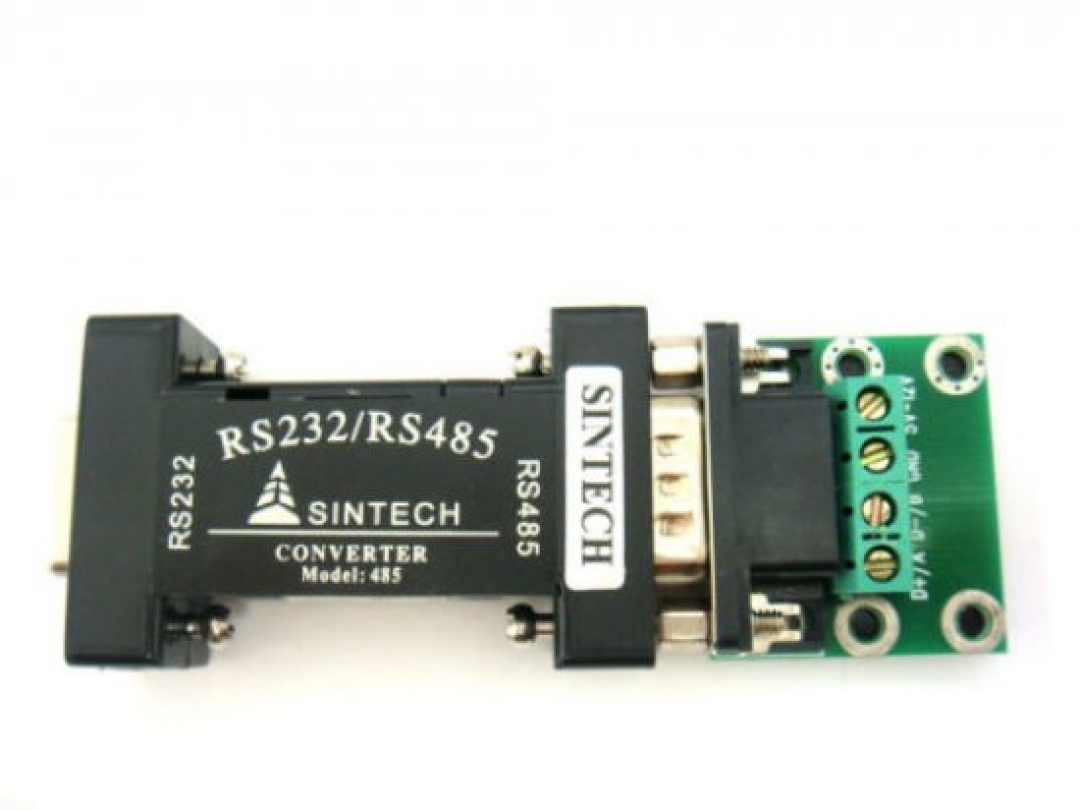

1.COMPATIBILITY: EIA/TIA RS232C STANDARD AND RS485 STANDARD 2.INTERFACE RS232 SIDE: DB9 FEMALE CONNECTOR. 3.INTERFACE RS485 SIDE: DB9 MALE CONNECTOR WITH OPTIONAL (INCLUDED) TERMINAL BOARD. 4.TRANSMISSION RATE: 300 115200BPS 5.TRANSMISSION DISTANCE: RS485 MAX. 1200M, RS232 SIDE MAX. 5M 6.WORKING MODE: ASYNCHRONOUS, HALF-DUPLEX, DIFFERENTIAL TRANSMISSION. 7.WORKING ENVIRONMENT: 0 ~ 70°C, RELATIVE HUMIDITY 5% 95% 8.MECHANICAL DIMENSIONS: 95MM X 33MM X 17MM STM485I INDUSTRIAL GRADE CONVERTER RS232 RS485 TAGS DE STM485I: CONVERTER ADAPTER, INDUSTRIAL GRADE, STM485I, RS-232 TO RS-485, RS232 TO RS485, RS232 RS485, ADAPTADOR CONVERSOR, CONVERSOR INDUSTRIAL, CONVERSOR SERIAL, RS232 P/ RS485, RS232 PARA RS485, OEM

Informações Adicionais
