Especificações Técnicas

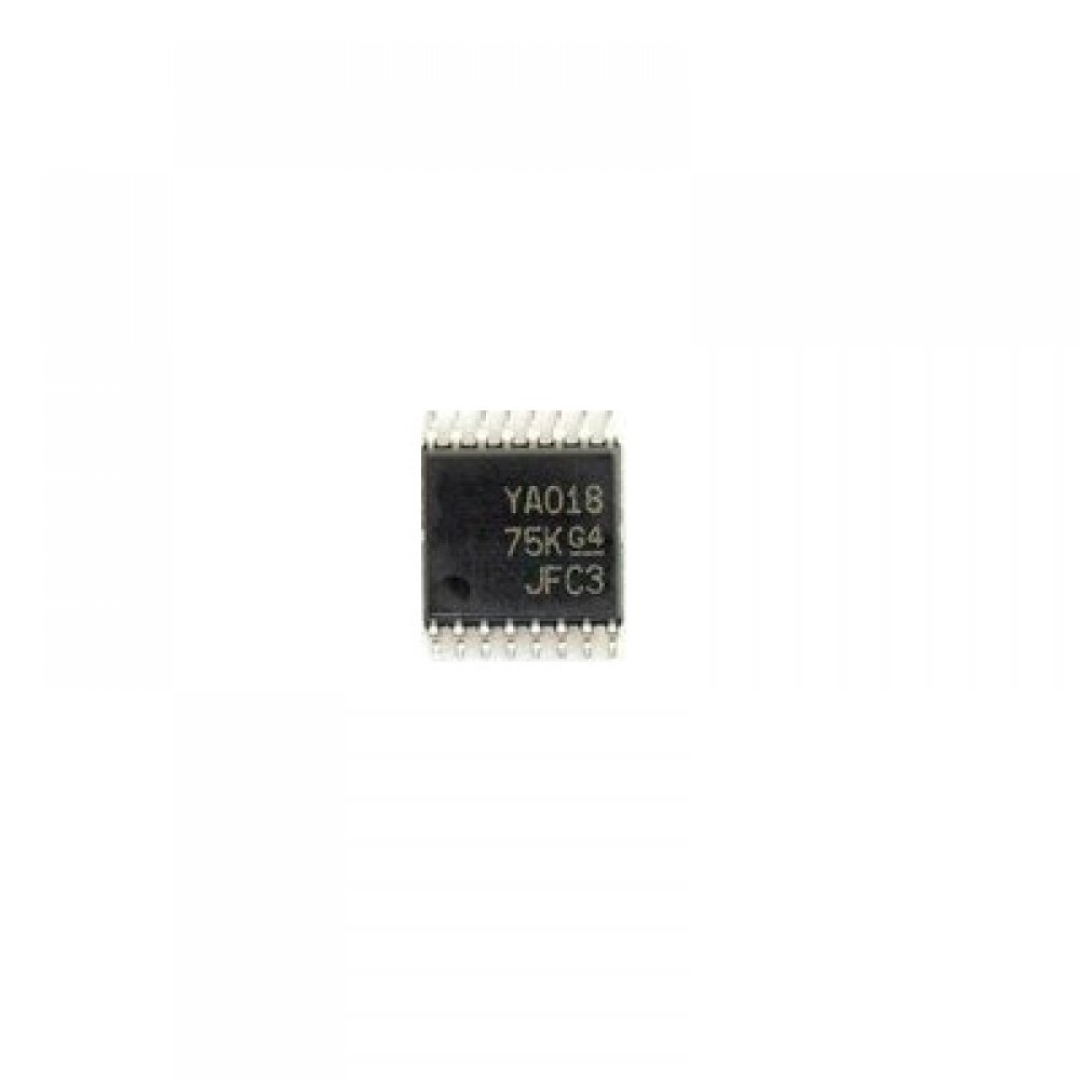

THE TS3A5018 DEVICE IS A QUAD SINGLE-POLE DOUBLETHROW (SPDT) ANALOG SWITCH THAT IS DESIGNED TO OPERATE FROM 1.8 V TO 3.6 V. THIS DEVICE CAN HANDLE DIGITAL AND ANALOG SIGNALS, AND SIGNALS UP TO V CAN BE TRANSMITTED IN EITHER DIRECTION.   APPLICATIONS SAMPLE-AND-HOLD CIRCUITS BATTERY-POWERED EQUIPMENT AUDIO AND VIDEO SIGNAL ROUTING COMMUNICATION CIRCUITS   FEATURES 1LOW ON-STATE RESISTANCE (10 -) LOW CHARGE INJECTION EXCELLENT ON-STATE RESISTANCE MATCHING LOW TOTAL HARMONIC DISTORTION (THD) 1.8-V TO 3.6-V SINGLE-SUPPLY OPERATION LATCH-UP PERFORMANCE EXCEEDS 100 MA PER JESD 78, CLASS II ESD PERFORMANCE TESTED PER JESD 22 2000-V HUMAN-BODY MODE (A114-B, CLASS II) 1000-V CHARGED-DEVICE MODEL (C101) MANUFACTURER: TEXAS INSTRUMENTS   PRODUCT CATEGORY: ANALOG SWITCH ICS   ROHS: MOUNTING STYLE: SMD/SMT   PACKAGE / CASE: SSOP-16   NUMBER OF CHANNELS: 4 CHANNEL   CONFIGURATION: 4 X SPDT   ON RESISTANCE MAX: 10 OHMS   SUPPLY VOLTAGE MIN: 1.8 V   SUPPLY VOLTAGE MAX: 3.6 V   MINIMUM DUAL SUPPLY VOLTAGE:   MAXIMUM DUAL SUPPLY VOLTAGE:   ON TIME MAX: 8 NS   OFF TIME MAX: 6.5 NS   MINIMUM OPERATING TEMPERATURE: 40 C   MAXIMUM OPERATING TEMPERATURE: 85 C   SERIES: TS3A5018   PACKAGING: REEL   PACKAGING: CUT TAPE   PACKAGING: MOUSEREEL   BRAND: TEXAS INSTRUMENTS   HEIGHT: 1.5 MM   LENGTH: 5 MM   MOISTURE SENSITIVE: YES   PRODUCT TYPE: ANALOG SWITCH ICS TS3A5018DBQR IC SWITCH QUAD SPDT 16SSOP MAIORES DETALHES DE TS3A5018DBQR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/TS3A5018.PDF?TS=1643302429134&REF_URL=HTTPS%25 TAGS DE TS3A5018DBQR: TS3A5018, TS3A5018DBQR, YA018, 69M A2CHG4, CI CHAVE ANALOGICA, CI SWITCH ANALOG, QUAD SPDT ANALOG SWITCH, CI CHAVE 4 CANAIS, CI CHAVE 4CH, ANALOG SWITCH ICS 10-OHM QUAD SPDT, CHAVE SPDT, MINI CHAVE SPDT, CHAVE DIGITAL SPDT, DIGITAL SWITCH SPDT, 4-CHANNEL GENERAL-PURPOSE ANALOG SWITCH
