Especificações Técnicas

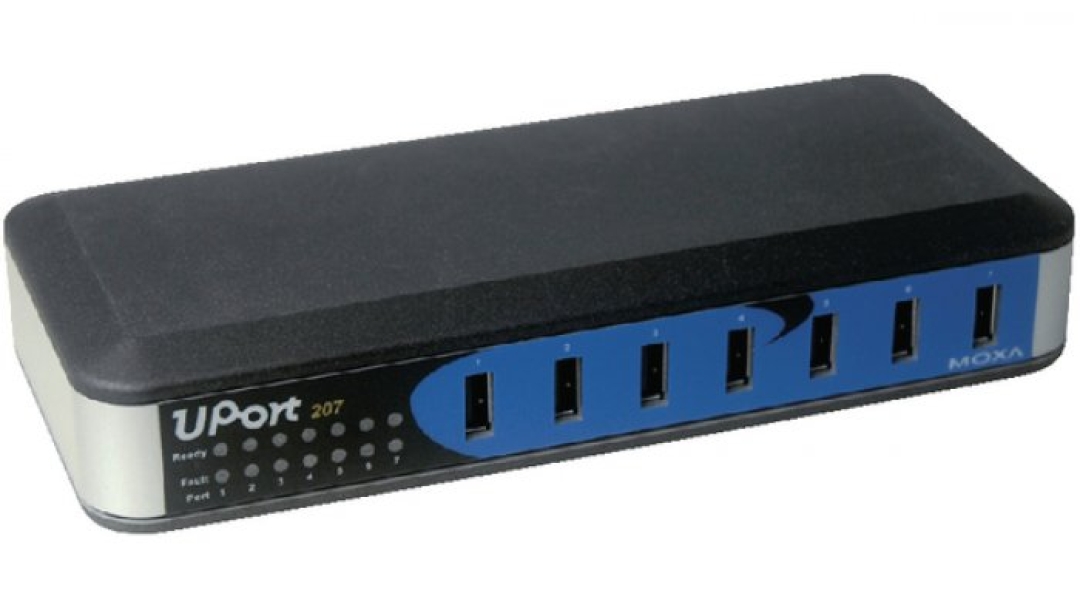

THE UPORT 204 AND UPORT 207 ARE ENTRY-LEVEL USB 2.0 HUBS THAT EXPAND 1 USB PORT INTO 4 AND 7 USB PORTS, RESPECTIVELY. THE HUBS ARE DESIGNED TO PROVIDE TRUE USB 2.0 HI-SPEED 480 MBPS DATA TRANSMISSION THROUGH EACH PORT, EVEN FOR HEAVY-LOAD APPLICATIONS.    THE UPORT 204/207 HAVE RECEIVED USB-IF HI-SPEED CERTIFICATION, WHICH IS AN INDICATION THAT BOTH PRODUCTS ARE RELIABLE, HIGH QUALITY USB 2.0 HUBS. IN ADDITION, THE HUBS ARE FULLY COMPLIANT WITH THE USB PLUG & PLAY SPEC AND PROVIDE A FULL 500 MA OF POWER PER PORT, ENSURING THAT YOUR USB DEVICES WILL PROPERLY.    THE UPORT 204/207 HUBS SUPPORT OF 12-40 VDC POWER MAKES THEM IDEAL FOR MOBILE APPLICATIONS. EXTERNALLY POWERED USB HUBS ARE THE ONLY WAY TO GUARANTEE THE BROADEST COMPATIBILITY WITH USB DEVICES.   COMPLIANCE USB 1.1/2.0 COMPLIANT   UPSTREAM 1 USB PORT, TYPE B CONNECTOR   DOWNSTREAM UPORT 204 4 USB PORTS, TYPE A CONNECTORS UPORT 207 7 USB PORTS, TYPE A CONNECTORS   SPEED 480 MBPS (HI-SPEED USB) AND 12 MBPS (FULL-SPEED USB)   OPERATING TEMPERATURE 0 TO 60°C (32 TO 140°F)   INPUT VOLTAGE 12 TO 40 VDC EXTERNAL POWER   POWER CONSUMPTION UPORT 204 1210 MA @ 12 VDC, 610 MA @ 24 VDC, 430 MA @ 36 VDC UPORT 207 2170 MA @ 12 VDC, 1070 MA @ 24 VDC, 730 MA @ 36 VDC UPORT-207 HUB USB MOXA ENTRY-LEVEL 7 PORTAS 2.0 TAGS DE UPORT-207: HUB USB 2.0, HUB MOXA UPORT-207, MOXA UPORT 207, MOXA UPORT207, HUB MOXA UPORT207, HUB MOXA UPORT 207, UPORT 207, HUB, UPORT-204, UPORT204, UPORT 204, =UPORT-207
