Especificações Técnicas

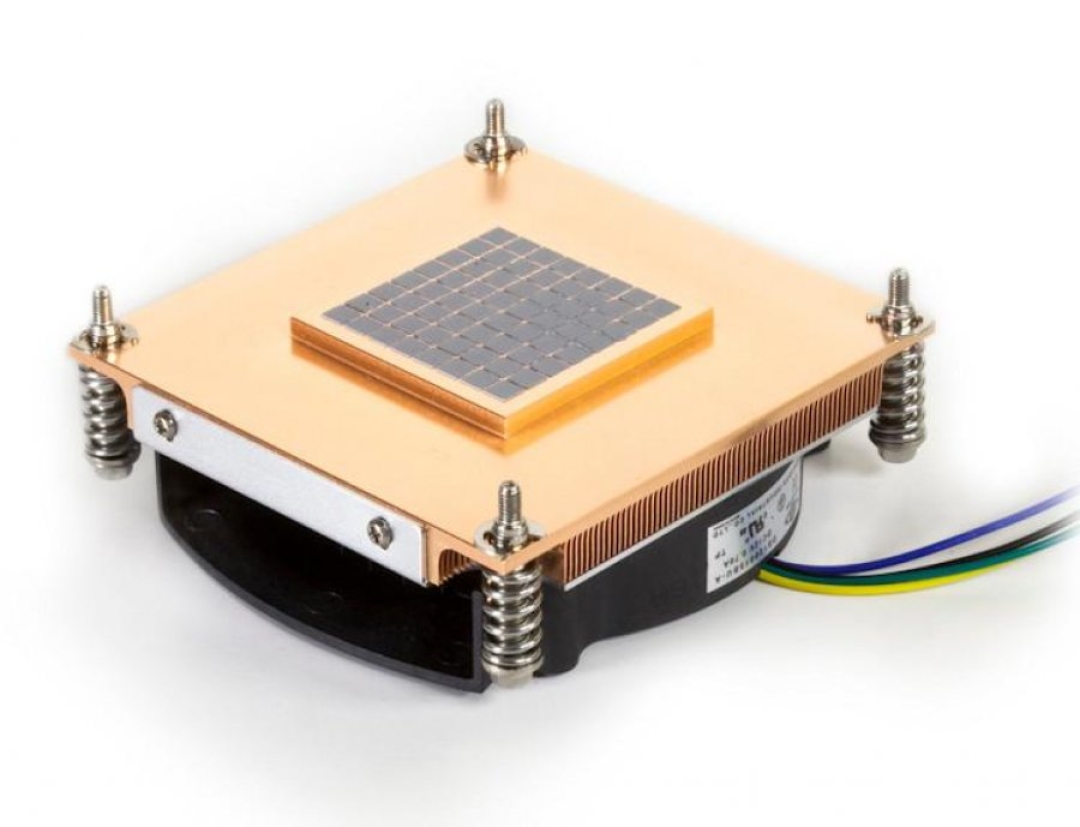

- RECOMMEND FOR INTEL® CORE- I5 I5-750; XEON® PROCESSOR 3400 SERIES; CORE- I7 PROCESSORS I7-870 E I7-860; SOCKET LGA1156 - ACTIVE COOLER FOR 1U SERVER OVERALL SPECIFICATION: - BACK STRIP SET IS INCLUDED - THERMAL GREASE PRE-PRINTED WITH GE-TOSHIBA TIG830SP - SUPPORT CPU POWER UP TO 95 WATTS 80 X 80 X 15MM BLOWER WITH PWM , COPPER HEATSINK UP TO TDP 95 WATTS FOR 1U SERVER SOLUTION CPU SOCKET : LGA1151/1155/1156 CPU SUPPORT: INTEL SOLUTION: 1U SERVER DIMENSIONS: 85.0 X 81.5 X 28.5 MM WEIGHT: 355 G /- 5G MATERIAL: COPPER HEATSINK FAN DIMENSION: 80 X 80 X 15 MM SPEED AT DUTY CYCLE 20%: 1000 RPM AT DUTY CYCLE 50%: 2500 RPM AT DUTY CYCLE 100%: 5000 RPM BEARING: 2 BALL BEARING RATED VOLTAGE: 12V POWER AT DUTY CYCLE 20%: 0.60 W AT DUTY CYCLE 50%: 1.44 W AT DUTY CYCLE 100%: 9.60 W AIR FLOW AT DUTY CYCLE 20%: 5.355 CFM AT DUTY CYCLE 50%: 7.654CFM AT DUTY CYCLE 100%: 14.719 CFM NOISE LEVEL AT DUTY CYCLE 20%: 20.71 DBA AT DUTY CYCLE 50%: 37.5 DBA AT DUTY CYCLE 100%: 51.7 DBA AIR PRESSURE AT DUTY CYCLE 20%: 2.083 MM-H2O AT DUTY CYCLE 50%: 9.780 MM-H2O AT DUTY CYCLE 100%: 36.168 MM-H2O LEAD WIRE PIN OUT PIN1-BLACK (-) PIN2-YELLOW ( ) PIN3-GREEN (TECHOMETER/SIGNAL OUTPUT) PIN4-BLUE (PWM) K199 DYNATRON HEATSINT E FAN 1U LGA 1155 / 1156 MAIORES DETALHES DE K199 NO SITE DO FABRICANTE: HTTP://WWW.DYNATRON-CORP.COM/EN/PRODUCT_DETAIL_1.ASPX?CV=&ID=191&IN=0 TAGS DE K199: K199, K129, COOLER ATIVO 1U, FAN ATIVO 1U, VENTILADOR 1U, FAN 1U, VENTOINHA 1U, CPU FAN 1U, HEATSINK 1U, COOLER SLIM, COOLER ATIVO SLIM
