Especificações Técnicas

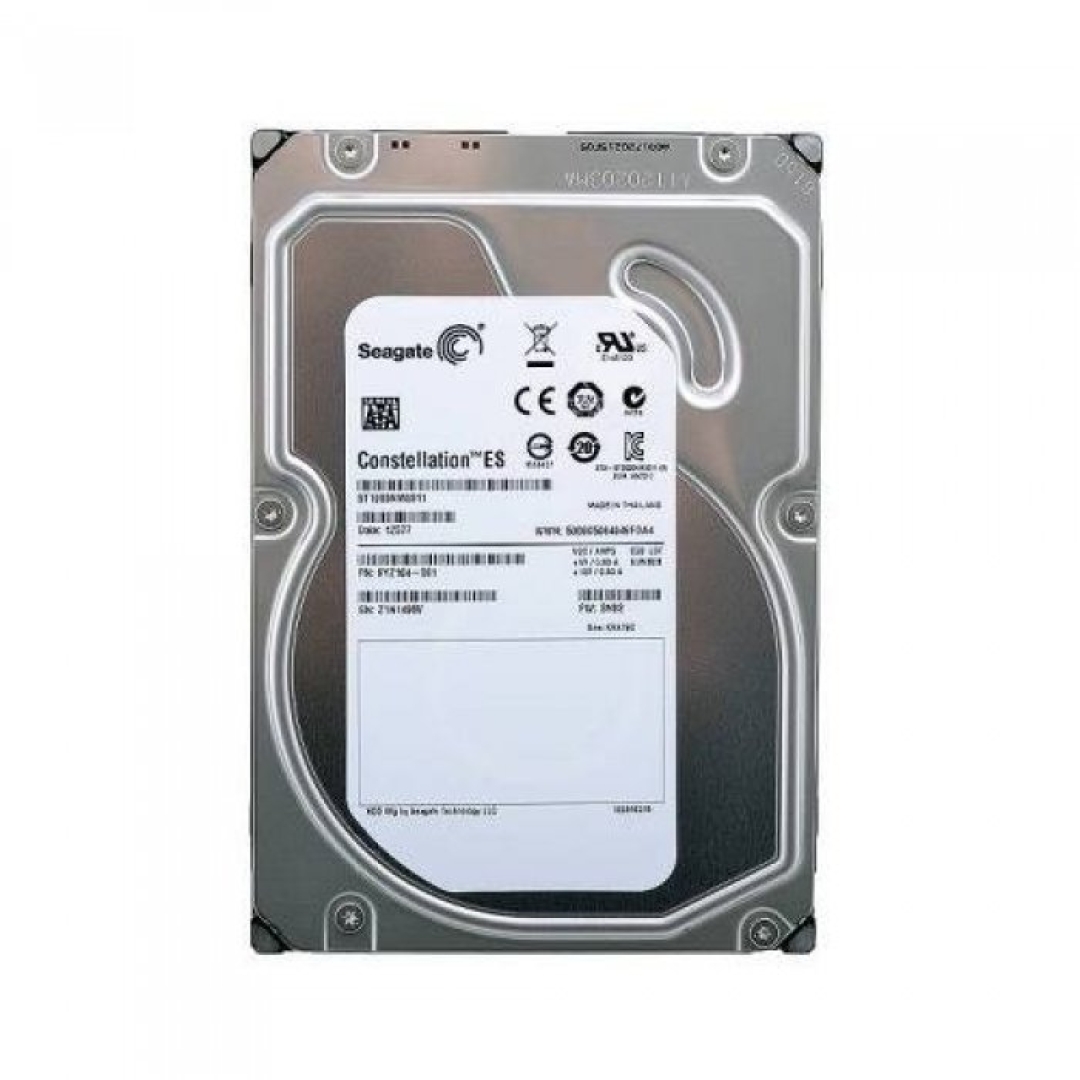

SEAGATE® CONSTELLATION® ES FIFTH-GENERATION DRIVES LEAD THE INDUSTRY WITH A RANGE OF HIGH-CAPACITY ENTERPRISE DRIVE OPTIONS. AVAILABLE IN BOTH 6GB/S SAS AND SATA INTERFACES, THESE DRIVES FEATURE ENTERPRISE-CLASS RELIABILITY WITH THE POWER AND PERFORMANCE EFFICIENCIES THAT MAKE THEM IDEAL FOR CAPACITY-OPTIMISED, 24X7 MULTI-DRIVE SERVER AND STORAGE ENVIRONMENTS. SPECIFICATIONS   MODEL NUMBER ST1000NM0011 INTERFACE SATA 6GB/S CACHE 64MB CAPACITY 1TB AREAL DENSITY (AVG) 324GB/IN2 GUARANTEED SECTORS 1,953,525,168 PHYSICAL   HEIGHT (MAXIMUM) 26.10MM (1.028 IN) WIDTH (MAXIMUM) 101.85MM (4.010 IN) LENGTH (MAXIMUM) 147.00MM (5.787 IN) WEIGHT (TYPICAL) 610G (1.345 LB) PERFORMANCE   SPIN SPEED (RPM) 7200 RPM SUSTAINED DATA TRANSFER RATE 147MB/S AVERAGE LATENCY 4.16MS RANDOM READ SEEK TIME 8.5MS RANDOM WRITE SEEK TIME 9.5MS I/O DATA TRANSFER RATE 600MB/S UNRECOVERABLE READ ERRORS 1 IN 1015 RELIABILITY   MTBF 1,200,000 HOURS ANNUAL FAILURE RATE 0.73% POWER   12V START MAX CURRENT 1.88A 5V START MAX CURRENT 0.62A AVERAGE IDLING POWER 4.42W AVERAGE OPERATING POWER 6.40W ENVIRONMENT   AMBIENT TEMPERATURE   OPERATING 5°–60°C NON-OPERATING -40°–70°C MAXIMUM OPERATING TEMPERATURE CHANGE 20°C PER HOUR MAXIMUM NON-OPERATING TEMPERATURE CHANGE 20°C PER HOUR SHOCK   OPERATING SHOCK (MAX) 70/40 GS FOR 2MS NON-OPERATING SHOCK (MAX) 350 GS FOR 2MS ACOUSTICS   ACOUSTICS (IDLING VOLUME) 1.9 BELS ACOUSTICS (SEEK VOLUME) 2.7 BELS ST1000NM0011 SEAGATE HD CONSTELLATION ES 1TB SATA3 TAGS DE ST1000NM0011: ST1000NM0011, ST1000DM010, EMC 100-580-590, HD EMPRESARIAL, HD PARA SERVIDOR, 9YZ64-090, 9YZ168-090, 9YZ264-090, 649402-002, SATAIII, ENTERPRISE, 24X7, 24 X 7, SATA 3, SATA III, 6GB/S, 6GBS, CONSTELLATION, 1TB, 9YZ164-003, 9YZ164003, HD SATA, HD SERVER, HD PARA SERVIDOR, 9YZ164-090, HD EMPRESARIAL
