Especificações Técnicas

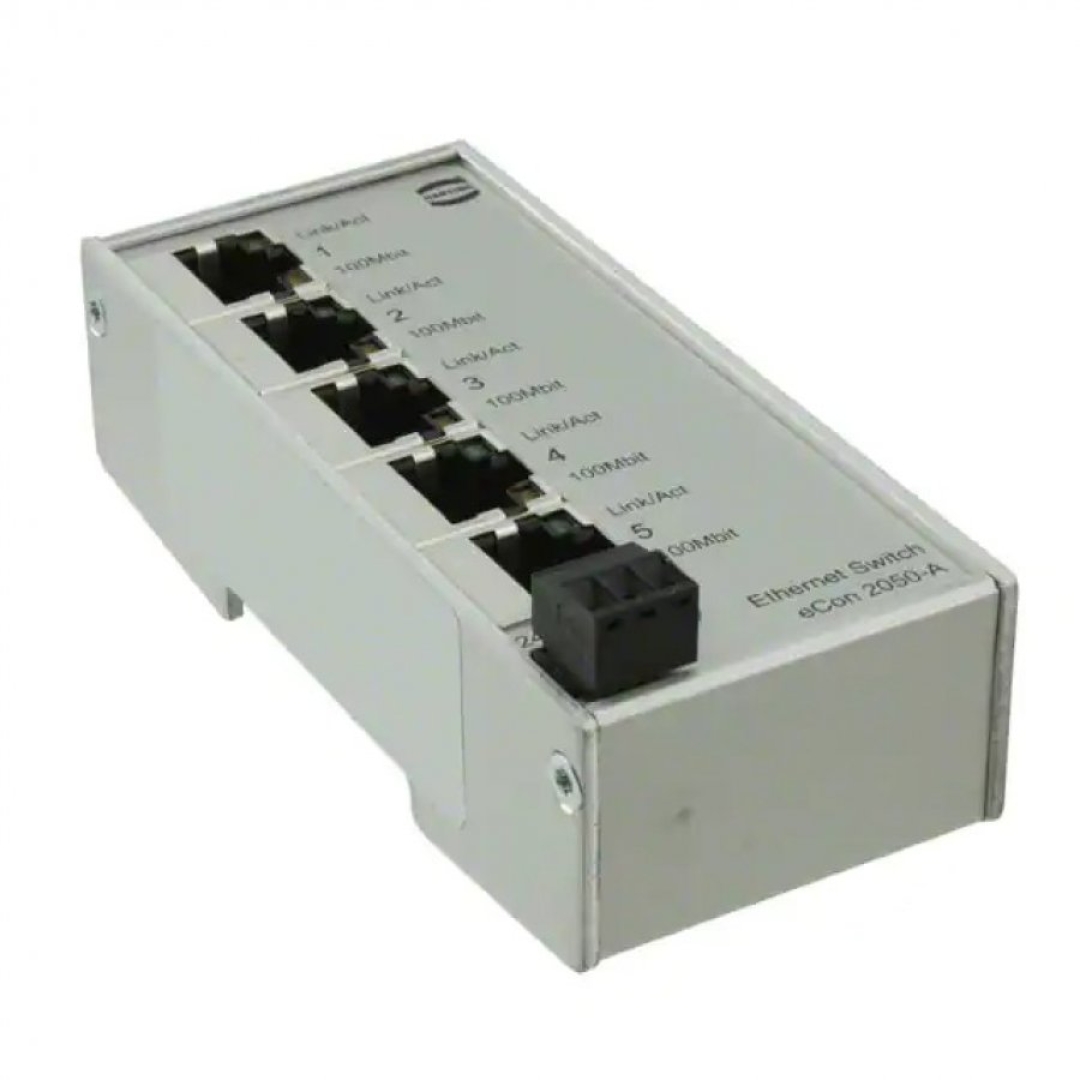

ETHERNET INTERFACE NUMBER OF PORTS: 5X 10/100BASE-TX, UNMANAGED CABLE TYPES ACC. TO IEEE 802.3: SHIELDED TWISTED PAIR (STP) OR UNSHIELDED TWISTED PAIR (UTP), CATEGORY 5 DATA RATE: 10/100MBIT/S (RJ45) MAXIMUM CABLE LENGTH: 100 M (TWISTED PAIR; WITH CABLE CATEGORY 5 ACC. TO EN 50 173-1) TERMINATING METHOD RJ45 (TWISTED PAIR) DIAGNOSTICS (VIA LED) STATUS LINK - GREEN STATUS DATA TRANSFER (ACT) - GREEN FLASHING DATA TRANSFER RATE (SPEED) - 100 MBIT/S: YELLOW / 10 MBIT/S: OFF TOPOLOGY:LINE, STAR OR MIXED POWER SUPPLY:24 VDC PERMISSIBLE RANGE: 9.6 V ... 36 V CURRENT CONSUMPTION: 100 MA (AT 24 V DC) DIAGNOSTICS (VIA LED): POWER SUPPLY TERMINATING POWER SUPPLY: 3-POLE PLUGGABLE CONTACT (24 V; 0 V; FE) DESIGN FEATURES MATERIAL OF HOUSING ALUMINIUM DIMENSIONS: (W X H X D) 46.5 X 113.5 X 27.3 MM (WITHOUT CONNECTORS) DEGREE OF PROTECTION IP 30 ACC. TO DIN 60 529 ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE     -10 °C ... 70 °C STORAGE TEMPERATURE     -40 °C ... 85 °C RELATIVE HUMIDITY     30 % ... 95 % (NON-CONDENSING) 20761053000 HARTING ELECTRIC SWITCH INDUSTRIAL 5X 10/100MBPS TAGS DE 20761053000: 20761053000, UNMANAGED IND ETHERNET SWITCH, 5 X 10/100BASE-TX, RJ45, SWITCH HARTING ELECTRIC INDUSTRIAL, SWITCH INDUSTRIAL ETHERNET 5 PORTAS, SWITCH HARTING 5 PORTAS RJ45, HA-VIS ECON 2050-A, ETHERNET SWITCH E-CON SWITCH 100MBIT, HARTING 20-76-105-3000, INDUSTRIAL ETHERNET SWITCHES UNMANAGED FAST ETHERNET, SWITCH INDUSTRIAL 5 PORTAS, SWITCH 5 PORTAS INDUSTRIAL
