Especificações Técnicas

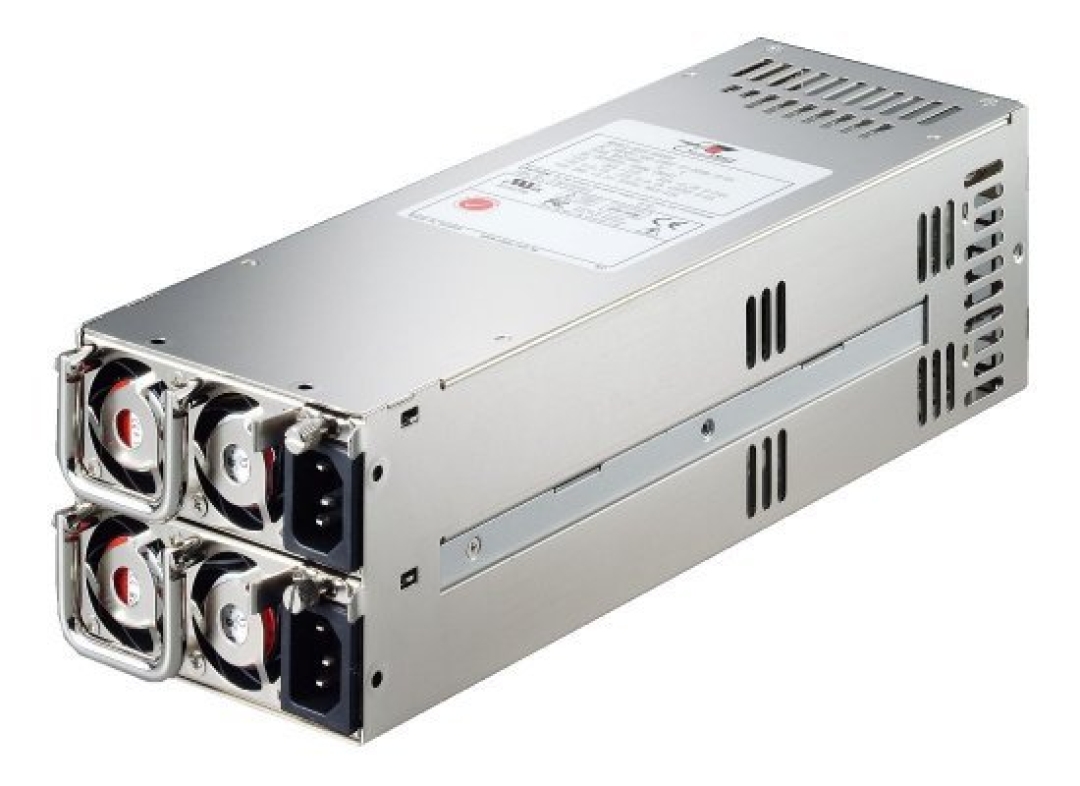

FEATURES:- ACTIVE PFC (FULL RANGE), MEET IEC-1000-3-2 CLASS D - 12V MAX. CURRENT : 32A - TEMPERATURE RANGE : OPERATING 0- ~ 40-, STORAGE - 20- ~ 70- - HUMIDITY: OPERATING:20%-95%, NON-OPERATING:10%-95% - REMARKS: 85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS - DUAL EMI NOISE INLET FILTER: FCC CLASS B, CISPR22 CLASS B - SAFETY: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950 - HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION - USE 48-PINS INDUSTRIAL CONNECTORS - COOLING: TWO 38X38X 28 MM DC FANS - AC INLET IN EACH MODULE - SERIAL ATA OPTIONAL ZIPPY R2W-6460P SPECIFICATIONS OUTPUT WATTAGE 460W CONNECTOR TYPE ATX 2.03,ATX12V(P4),EPS12V,WTX,AMD-GES BEST SOLUTION FOR SERVER,WORKSTATION,STORAGE SYSTEM,IPC DIMENSION 300.00X101.00X84.00 (MM) 11.81X3.98X3.31 (INCH) AC INPUT SPEC VOLTAGE: 90 ~ 264 VAC FULL RANGE DC OUTPUT SPECS OUTPUT VOLTAGE OUTPUT CURRENT MIN. OUTPUT CURRENT MAX. OUTPUT CURRENT PEAK REGULATION LOAD REGULATION LINE OUTPUT RIPPLE E NOISE MAX.[P-P] 5V 2 30 ± 5% ± 1% 50MV 12V 2 32 ± 5% ± 1% 120MV -5V 0.05 0.7 5 ~ -10% ± 1% 120MV -12V 0.05 0.7 5 ~ -10% ± 1% 120MV 3.3V 1 24 ± 5% ± 1% 50MV 5VSB 0.1 2 6 ~ -5% ± 1% 50MV   REMARKS: 1. TOTAL CURRENT OF 5V AND 3.3V NOT EXCEED 43 A 2. TOTAL OUTPUT POWER NOT EXCEED 460W R2W-6460P ZIPPY FONTE REDUNDANTE OEM 2U 2X 460W TAGS DE R2W-6460P: R2W-6460P, R2W-6460P-SM, B000840266, R2W-6460P-R, R2W6460P, R2W 6460P, FONTE REDUNDANTE, FONTE 2U, 2U, FONTE HOT-PLUG, HOT SWAP, FONTE DELL, FONTE HP, FONTE HOT SWAP, FONTE IBM, FONTE PROLIANT, FONTE SERVER, FONTE DE ALIMENTAÇAO, FONTE DE SERVIDOR, FONTE PARA SERVIDOR

Informações Adicionais
