Especificações Técnicas

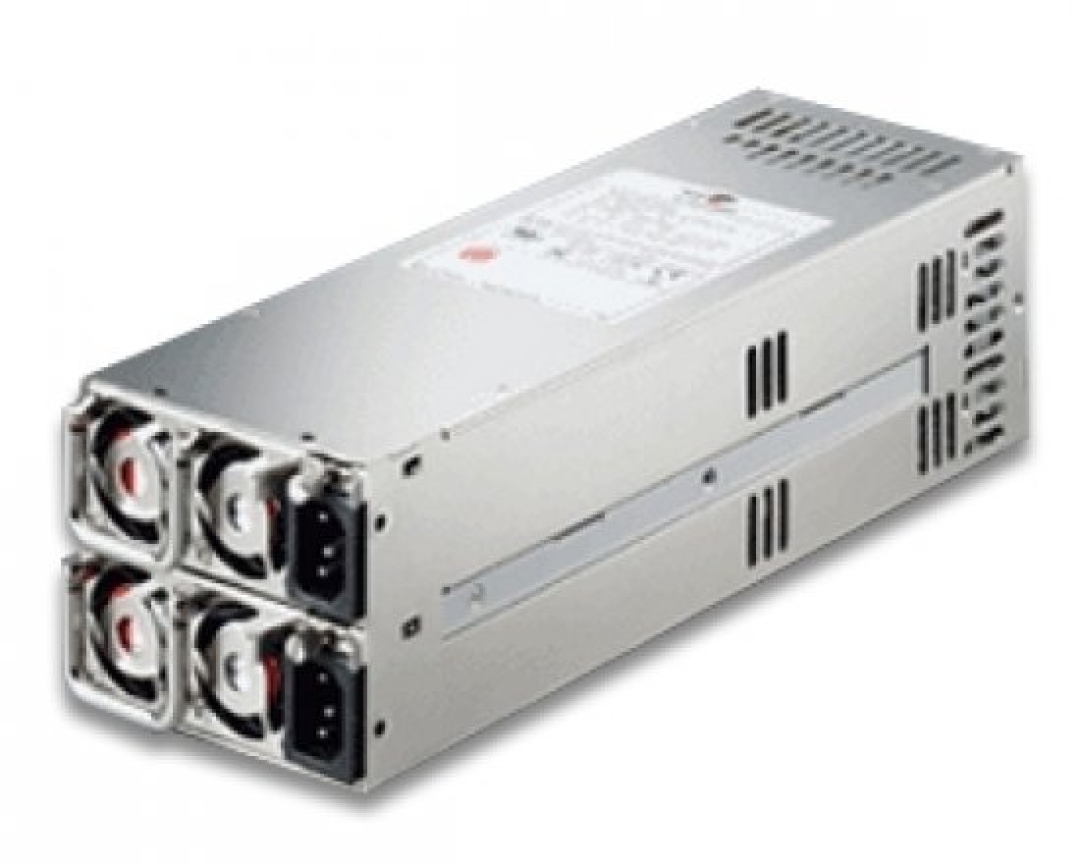

DIMENSION: (WXDXH) 101 X 84 X 300 MM 3.98 X 3.31 X 11.81 INCH 3-31/32 X 3-5/16 X 11-13/16 INCH CONNECTORS: 1X 24-PIN MAIN CONNECTOR 1X 8-PIN EPS 12V 1X 4-PIN P4 12V 1X 6-PIN AUX 13X 4-PIN PERIPHERAL / IDE POWER 3X 4-PIN FLOPPY POWER 1X 2-PIN 3.68MM BUZZER RESET 1X 2-PIN 2.54MM TTL SIGNAL 1X LED FEATURES: ACTIVE PFC (FULL RANGE), MEET IEC-1000-3-2 CLASS D 12V MAX. CURRENT: 32A TEMPERATURE RANGE: OPERATING 0°C ~ 40°C STORAGE: -20°C ~ 70°C HUMIDITY: OPERATING: 20%-95% NON-OPERATING: 10%-95% REMARKS: 85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS. DUAL EMI NOISE INLET FILTER: FCC CLASS B, CISPR22 CLASS B SAFETY: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950 HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION HOLD UP TIME: 16MS MINIMUM AT FULL LOAD & 90VAC INPUT VOLTAGE USE 48-PIN INDUSTRIAL CONNECTORS COOLING: 2X 38X38X28 MM DC FANS (MODULE) AC INLET IN EACH MODULE SERIAL ATA OPTIONAL SPECIFICATION: OUTPUT WATTAGE: 500W ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES BEST SOLUTION FOR: SERVER, WORKSTATION, STORAGE SYSTEM, IPC DIMENSION: (WXDXH) 101 X 84 X 300 MM 3.98 X 3.31 X 11.81 INCH 3-31/32 X 3-5/16 X 11-13/16 INCH VOLTAGE: 105~264 VAC FULL RANGE OUTPUT CHARACTERISTICS: OUTPUT VOLTAGE MIN. OUTPUT CURRENT MAX. OUTPUT CURRENT PEAK OUTPUT CURRENT REGULATION LOAD REGULATION LINE OUTPUT RIPPLE & NOISE MAX. [P-P] +5V 2.0 30.00 --- ±5% ±1% 50MV +12V 2.0 32 --- ±5% ±1% 120MV -5V 0.05 0.7 --- +5% ~ -10% ±1% 120MV -12V 0.05 0.7 --- +5% ~ -10% ±1% 120MV 3.3V 1 24 --- ±5% ±1% 50MV +5VSB 0.1 2 --- +6% ~ -5% ±1% 50MV REMARKS: > TOTAL CURRENT OF +5V AND +3.3V NOT EXCEED 43A > TOTAL OUTPUT POWER NOT EXCEED 500W * THE POWER SUPPLY IS FOR CHASSIS ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC AND SAFETY REGULATIONS. M2W-6500P ZIPPY FONTE REDUNDANTE 2U 500W EPS 12V 8 PIN MAIORES DETALHES DE M2W-6500P NO SITE DO FABRICANTE: HTTP://WWW.ZIPPY.COM.TW/PW/SHOWDETAIL.ASPX?PP_RFNBR=1395 TAGS DE M2W-6500P: M2W-6500P, M2W6500P, M2W 6500P, B001380002, PS-R2U-ZP-M2W-6500P, FONTE 2U, FONTE 2U REDUNDANTE, FONTE PARA GABINETE 2U, FONTE CHASSIS 2U, FONTE GABINETE 2U, ZIPPY
