Especificações Técnicas

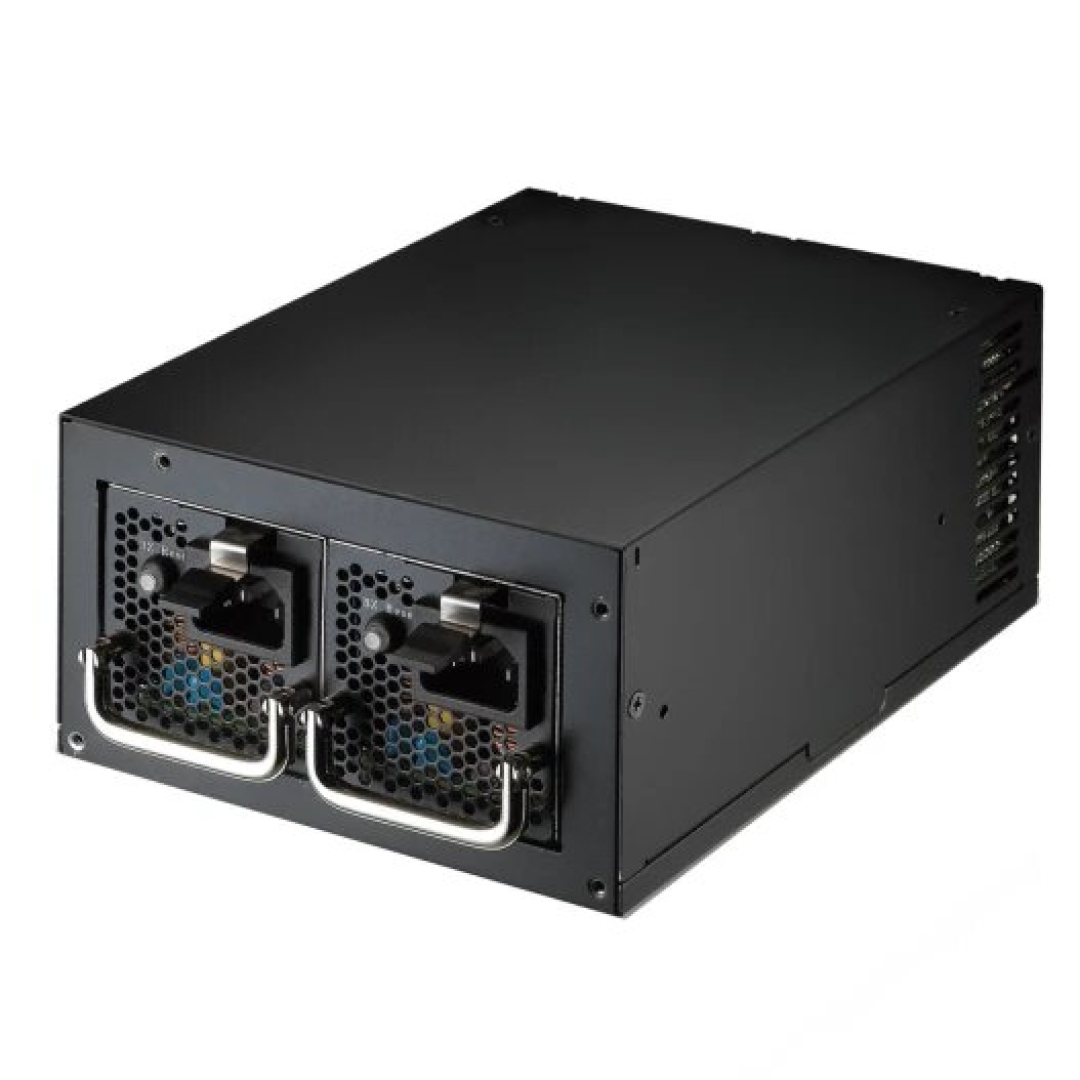

ESPECIFICATIONS: > TEMPERATURE RANGE: OPERATION 0-~50- > HOLD UP TIME: 16MS AT MAXIMUM LOAD & NORMAL INPUT VOLTAGE > EFFICIENCY: 73% TYPICAL(NORMAL LINE) > ATX 12V / EPS 12V > POWER GOOD SIGNAL: SHOULD BE ASSERTED HIGH TO INDICATE THAT+5VDC AND +3.3VDC OUTPUT ARE ABOVE THE LOW VOLTAGE THRESHOLDS. COMPATIBLE SIGNAL OUT WITH 100MS TO 500MS. > OVER POWER PROTECTION: THE POWER SUPPLY SHALL SHOUT DOWN OUTPUT POWER EXCEEDS 130% TO 160% > OVER VOLTAGE PROTECTION: +5V, +3.3V AND +12V DC OUTPUTS SET AT 110%-130% > SHORT CIRCUIT PROTECTION: A SHORT CIRCUIT PLACED BETWEEN THE DC XX AND THE OUTPUT SHALL CAUSE NO DAMAGE AND THE POWER SUPPLY SHALL SHUTDOWN. > EMI: FCC PART 15, SUBPART B, CLASS B, EN55022 CISPR22 CLASS B. > MEET EN-61000-3-2 CLASS D ( ACTIVE PFC ) > AGENCY APPROVALS:UL60950, CAN/CSA22.2 NO.60950, TUV(IEC60950) > MTBF OF POWER SUPPLY ELECTRONNIS: 100,000 HOURS AT 25-. LIFE EXPCTANCY OF FAN 40,000 HOURS AT 40- > COOLING: BY FORCED AIR 1X40MM FAN (EACH MODULE) > DIMENSION:D280 X W101 X H84MM TC-400R2U FONTE REDUNDANTE 2U 2X 400W SURE STAR MAIORES DETALHES DE TC-400R2U NO SITE DO FABRICANTE: HTTP://WWW.TC-ISTAR.COM/PRODUCT/TC-400R2U.HTM TAGS DE TC-400R2U: EPS 8 PINOS, 8PIN, 8-PIN EPS12V MOTHERBOARD, ISTAR SURE STAR, FONTE REDUNDANTE CHASSIS 2U, SS-600H2U, SS600H2U, FONTE PARA GABINETE 2U, FONTE GABINETE 2U, FONTE CHASSIS 2U, FONTE PARA CHASSIS 2U, FONTE RACK 2U, FONTE PARA RACK 2U, TC-400R2U
