Especificações Técnicas

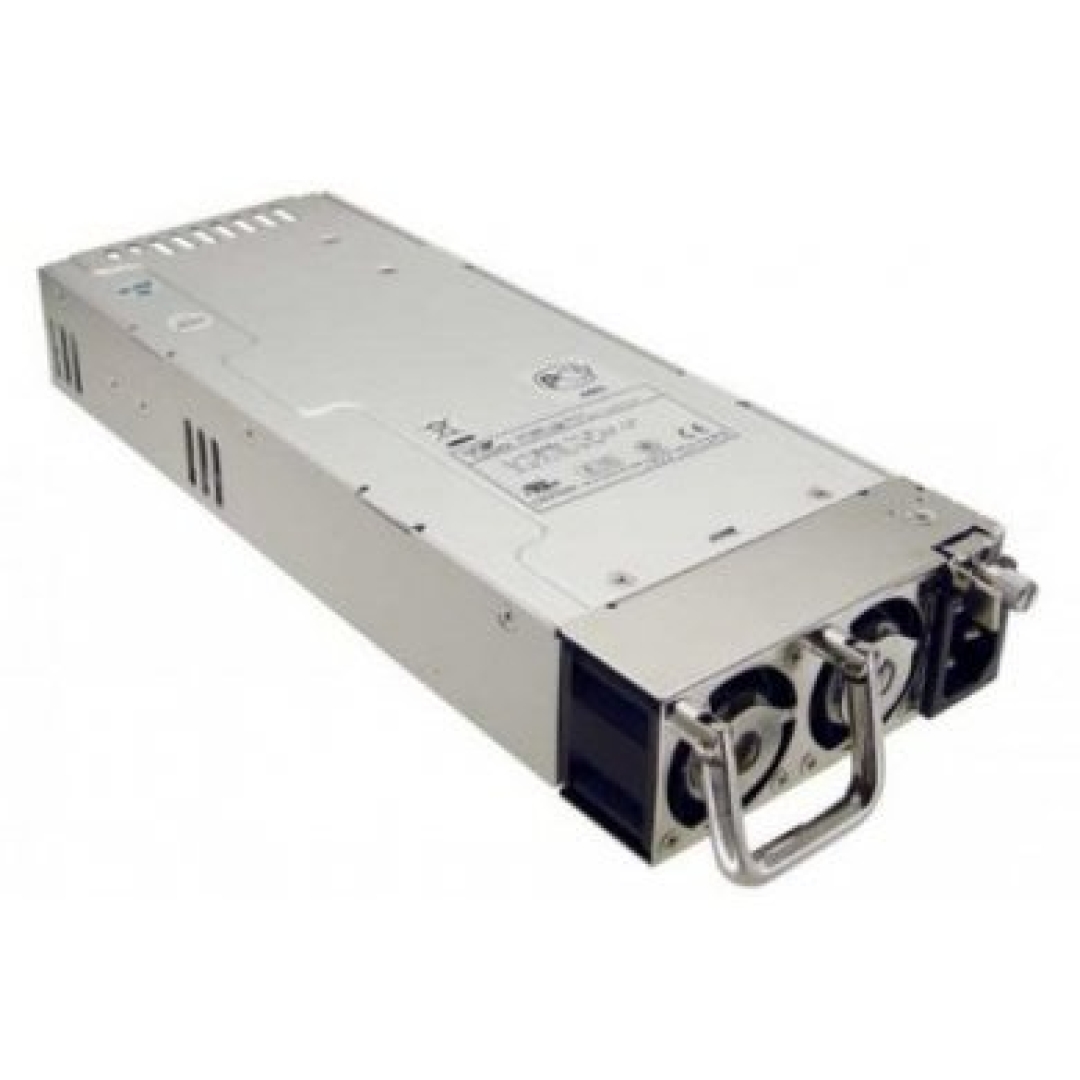

1U 460W POWER MODULE APPLY FOR ZIPPY EMACS R2W-6460P (EACH R2W-6460P REQUIRE 2PCS R2W-6460P-R) DC OUTPUT WATTAGE 460W DIMENSION (D X W X H) 265.00X98.40X40.00  MM 10.4X3.87X1.57  INCH INPUT VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47 ~ 63 HZ INPUT CURRENT: 8.0 / 4.0 A FOR 115 / 230 VAC INRUSH CURRENT: 60A / 80A MAX. FOR 115 / 230 VAC OUTPUT   VOLTAGE CURRENT REGULATION OUTPUT MIN (A) MAX (A) LOAD RIPPLE E NOISEMAX [P - P] 5V 3.5 30 /- 5% 50MV 12V 2 32 /- 5% 120MV - 5V 0.05 0.7 5% / -10% 120MV - 12V 0.05 0.7 5% / -10% 120MV 3.3V 1 24 /- 5% 50MV 5VSB 0.1 2.0 6% / -5% 50MV TOTAL CURRENT OF 5V AND 3.3V MAX: 43A  FEATURE ACTIVE PFC (FULL RANGE) MEET IEC-1000-3-2 CLASS D TEMPERATURE RANGE : OPERATING 0C ~ 40C STORAGE -20C ~ 70C HOLD UP TIME: 16MS MINIMUM AT FULL LOAD HUMIDITY: OPERATING: 20% - 95% NON-OPERATING: 10% - 95% (85% NORMAL; 95% COATING) DUAL EMI NOISE INLET FILTER: FCC CLASS B CISPR22 CLASS B EFFICIENCY: 67% TYPICAL AT 115V FULL LOAD SAFETY: UL CSA TUV OVER POWER PROTECTION 110~150% OVER VOLTAGE PROTECTION SHORT CIRCUIT PROTECTION 48-PINS INDUSTRIAL CONNECTORS FAULTY ALARM: LED, BUZZER, TTL SIGNAL COOLING: TWO 38X38X28 MM DC FANS (MODULE) R2W-6460P-R FONTE REDUNDANTE 1U/2U 460W ZIPPY EMACS TAGS DE R2W-6460P-R: R2W-6460-R, R2W6460, R2W-6460P-SM, B000840266, R2W-6460P, R2W-6460, FONTE REDUNDANTE, FONTE 2U, FONTE 1U, FONTE DELL, FONTE HP, FONTE HOT SWAP, FONTE IBM, FONTE PROLIANT, FONTE SERVER, FONTE DE ALIMENTAÇÃO, FONTE DE SERVIDOR, FONTE PARA SERVIDOR, FONTE 1U, FONTE 2U, FONTE REDUNDANTE 1U, FONTE REDUNDANTE 2U

Informações Adicionais
