Especificações Técnicas

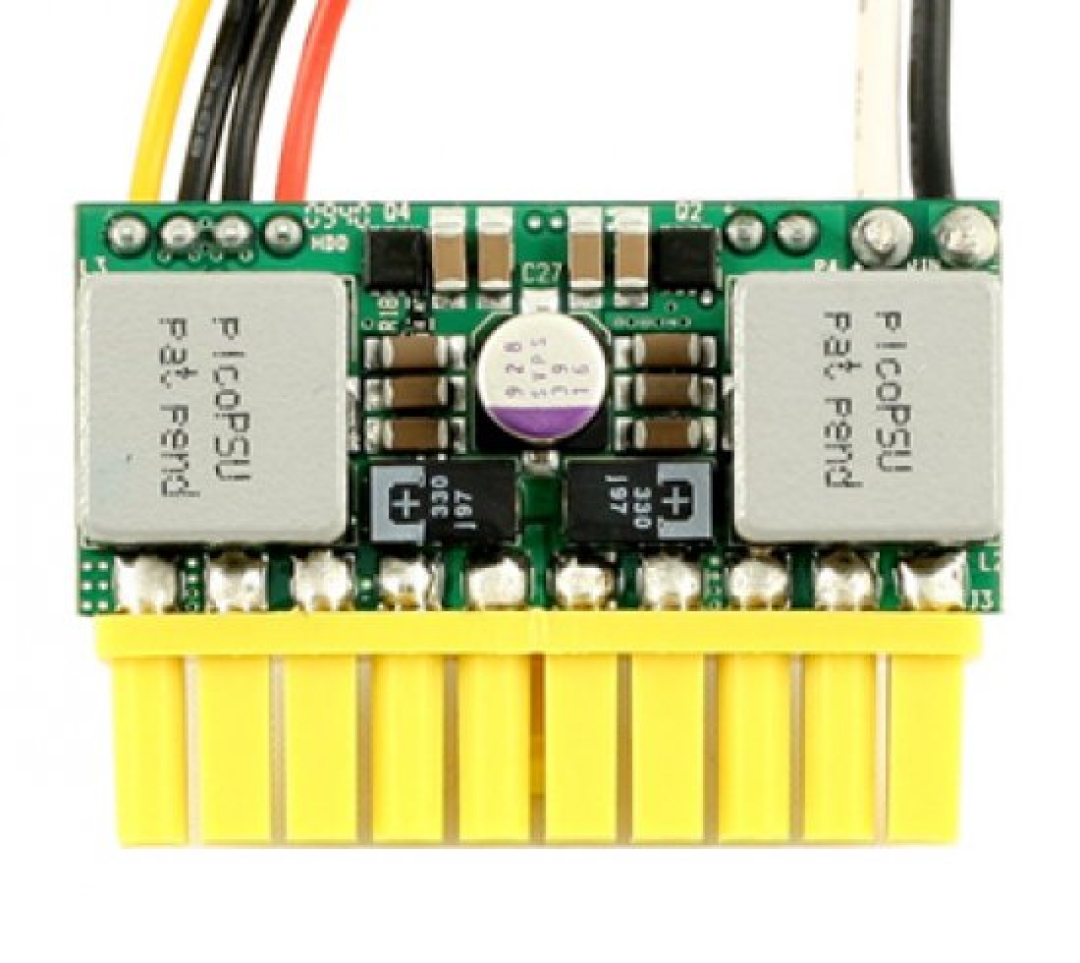

FEATURES THE PICOPSU-150-XT IS THE WORLD-S TINIEST 12-VOLT DC-DC ATX POWER SUPPLY UNIT (PSU). WITH A COMPACT DESIGN AND FEWER CABLES, THE PICOPSU-150 IS THE SMALLEST SNAP-IN 24-PIN ATX DC-DC POWER SUPPLY. THE PICOPSU-150 IS FULLY ATX COMPLIANT, MAKING IT AN EXCELLENT CANDIDATE FOR ANY SILENT 12-VOLT DC-DC COMPUTER PROJECT. YOU CAN REDUCE SPACE AND ELIMINATE 24 UNNECESSARY WIRES BY PLUGGING THE PSU DIRECTLY INTO THE MAINBOARD ATX CONNECTOR. IT CAN POWER A WIDE RANGE OF MINI-ITX MAINBOARDS, AND COMES WITH A P4 POWER CABLE FOR POWERING BOARDS THAT REQUIRE THAT CONNECTOR AND HAVE A TDP OF 35 ~ 65 W. THE PICOPSU-150 IS EQUIPPED WITH A 10 POWER LEAD CABLE, 1 MOLEX CONNECTOR, 1 SATA CONNECTOR, AND 1 P4 POWER CONNECTOR. PICOPSU-150-XT SPECIFICATIONS INPUT REQUIRED 12 V DC REGULATED MAXIMUM OUTPUT 150 W* OUTPUT VOLTAGE (V) 5VSB 3.3 5 12 -12 OUTPUT CURRENT (A) 1.5 6.0 6.0 8.0 0.05 OUTPUT POWER (W) 7.5 19.8 30 96 0.6 PEAK CURRENT (A) 2.0 8.0 8.0 10.0 0.1 DIMENSIONS (W X H X D) 53 X 30 X 20 MM 2.09 X 1.20 X 0.78 (1U COMPLIANT)    PICOPSU-150-XT ATX POWER SUPPLY  - COST EFFICIENT SOLUTION FOR OEMS - LOWEST HEAT DISSIPATION - HIGH EFFICIENCY AT LIGHT LOADS (INTEL ATOM) - 96% EFFICIENCY - 150 WATTS, 12V INPUT  - PLUGS DIRECTLY INTO THE ATX CONNECTORR - OPTIMISED FOR ATOM PROCESSOR - CONFIGURABLE WIRE HARNESS - CONFIGURABLE WIRE HARNESS - OSCON / POSCAP CAPACITORS, JAPAN - MANUFACTURED BY MINI-BOX.COM *AT MAX LOAD, FORCED AIR VENTILATION IS REQUIRED. PEAK LOAD SHOULD NOT EXCEED 60 SECONDS. NAO ACOMPANHA FONTE DE ALIMENTAÇAO DE 12VOLTS. PICOPSU-150-XT PICO SIZE FONTE PICOPSU DC 12V 150WATTS TAGS DE PICOPSU-150-XT: FONTE PARA MINI PC, EA10953A, MINI ITX, ITX, PICO, PICO PSU, 80W, 80WATTS, FONTE DE 12V, PICO PSU, FONTE ITX, FONTE PARA MINI GABINETE, FONTE FLEX, MINI FONTE, FONTE DELL, FONTE HP, FONTE IBM, FONTE REAL, FONTE DE ALIMENTAÇAO, PICO SIZE COMPUTING

Informações Adicionais
