Especificações Técnicas

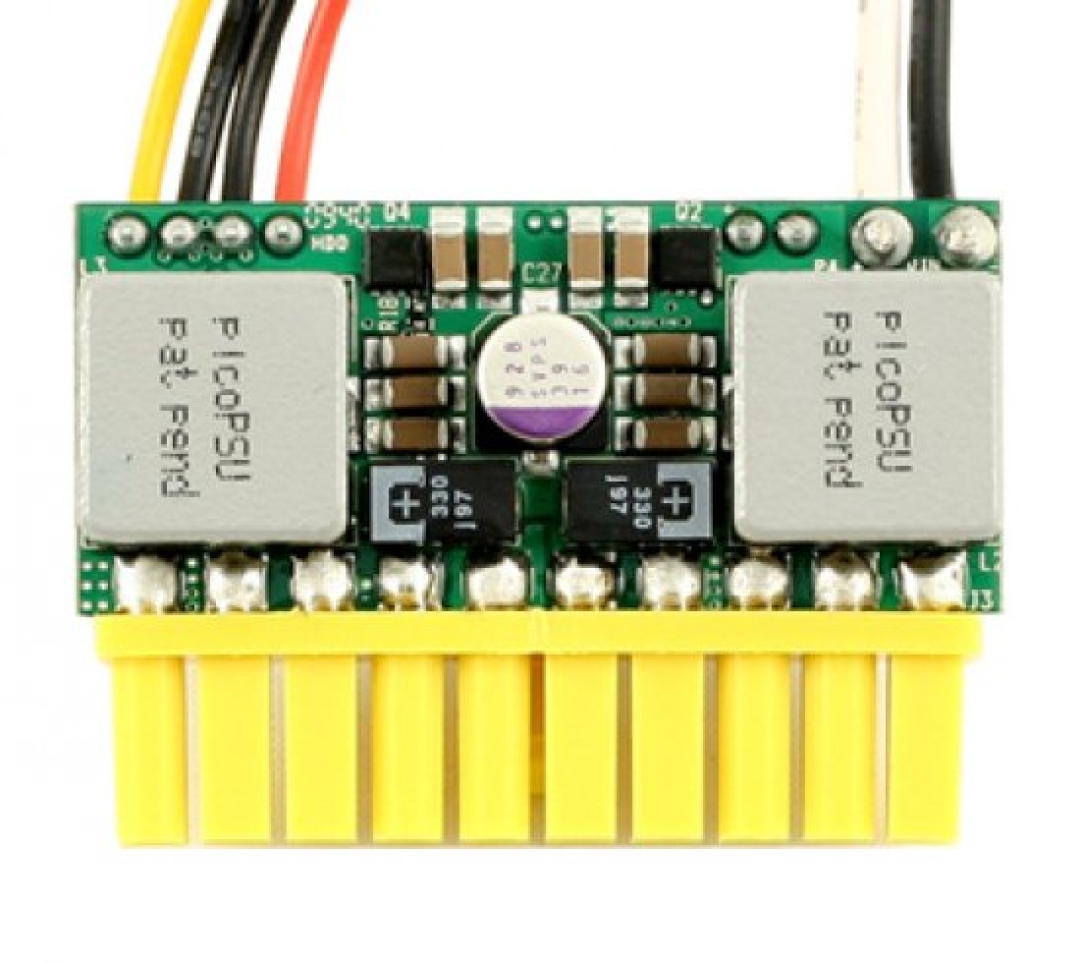

FEATURES THE PICOPSU-80 IS THE WORLDS TINIEST 12-VOLT DC-DC ATX POWER SUPPLY UNIT (PSU). WITH A COMPACT DESIGN AND FEWER CABLES, THE PICOPSU-80 IS AN ULTRA SMALL FOOTPRINT SNAP-IN POWER SUPPLY. THE PICOPSU-80 PROVIDES A COOL, SILENT 80 WATTS OF POWER FOR SMALL PC DESIGNS USING A SINGLE 12-VOLT POWER SOURCE. REDUCE SPACE BY ELIMINATING 20 UNNECESSARY WIRES BY PLUGGING DIRECTLY INTO THE MAINBOARD ATX CONNECTOR. THE PICOPSU-80 IS ALSO 1U SERVER RACK COMPLIANT AND IS EQUIPPED WITH A 10 POWER LEAD CABLE. RECOMMENDED FOR USE WITH A WIDE RANGE OF MINI-ITX MAINBOARDS. INCLUDES THE FOLLOWING POWER CONNECTORS: MOLEX, SATA, AND DC JACK. PICOPSU-80 SPECIFICATIONS INPUT REQUIRED 12 V REGULATED MAXIMUM OUTPUT 102 W* OUTPUT VOLTAGE (V) 5VSB 3.3 5 12 -12 OUTPUT CURRENT (A) 1.5 5.0 6.0 4.0 0.05 OUTPUT POWER (W) 7.5 16.5 30 48 0.6 PEAK CURRENT (A) 2.0 7.0 7.0 7.0 0.1 DIMENSIONS (W X H X D) 44.5 X 30 X 20 MM (1U COMPLIANT) 1.75 X 1.2 X .78    PICOPSU-80 12V DC-DC ATX POWER SUPPLY  - COST EFFICIENT SOLUTION FOR OEMS - LOWEST HEAT DISSIPATION - HIGH EFFICIENCY AT LIGHT LOADS (INTEL ATOM) - 96% EFFICIENCY - 80 WATTS, 12V INPUT  - PLUGS DIRECTLY INTO THE ATX CONNECTORR - OPTIMISED FOR ATOM PROCESSOR - CONFIGURABLE WIRE HARNESS - CONFIGURABLE WIRE HARNESS - OSCON / POSCAP CAPACITORS, JAPAN - ROHS COMPLIANT VERSION - US PAT. NO 7,539,023 AT MAX LOAD, FORCED AIR VENTILATION IS REQUIRED. FOR FANLESS OR IMPROPER VENTILATION OPERATION DERATE THE OUTPUT OF THE 3.3- AND 5-VOLT RAILS UNTIL PSU TEMPERATURE FALLS BELOW 65°C. PEAK LOAD SHOULD NOT EXCEED 60 SECONDS. COMBINED MAX POWER OUTPUT SHOULD NOT EXCEED MORE THAN 95 WATTS. NAO ACOMPANHA FONTE DE ALIMENTAÇAO DE 12VOLTS.   PICOPSU-80 PICO SIZE FONTE PICOPSU DC 12V 80WATTS TAGS DE PICOPSU-80: PICOPSU-80, FONTE PARA MINI PC, PICOPSU-90, MX-0608F, PICO PSU-90, MINI ITX, ITX, EA10953A, PICO PSU, 80W, 80WATTS, FONTE DE 12V, PICO PSU, PICO SIZE COMPUTING

Informações Adicionais
