Especificações Técnicas

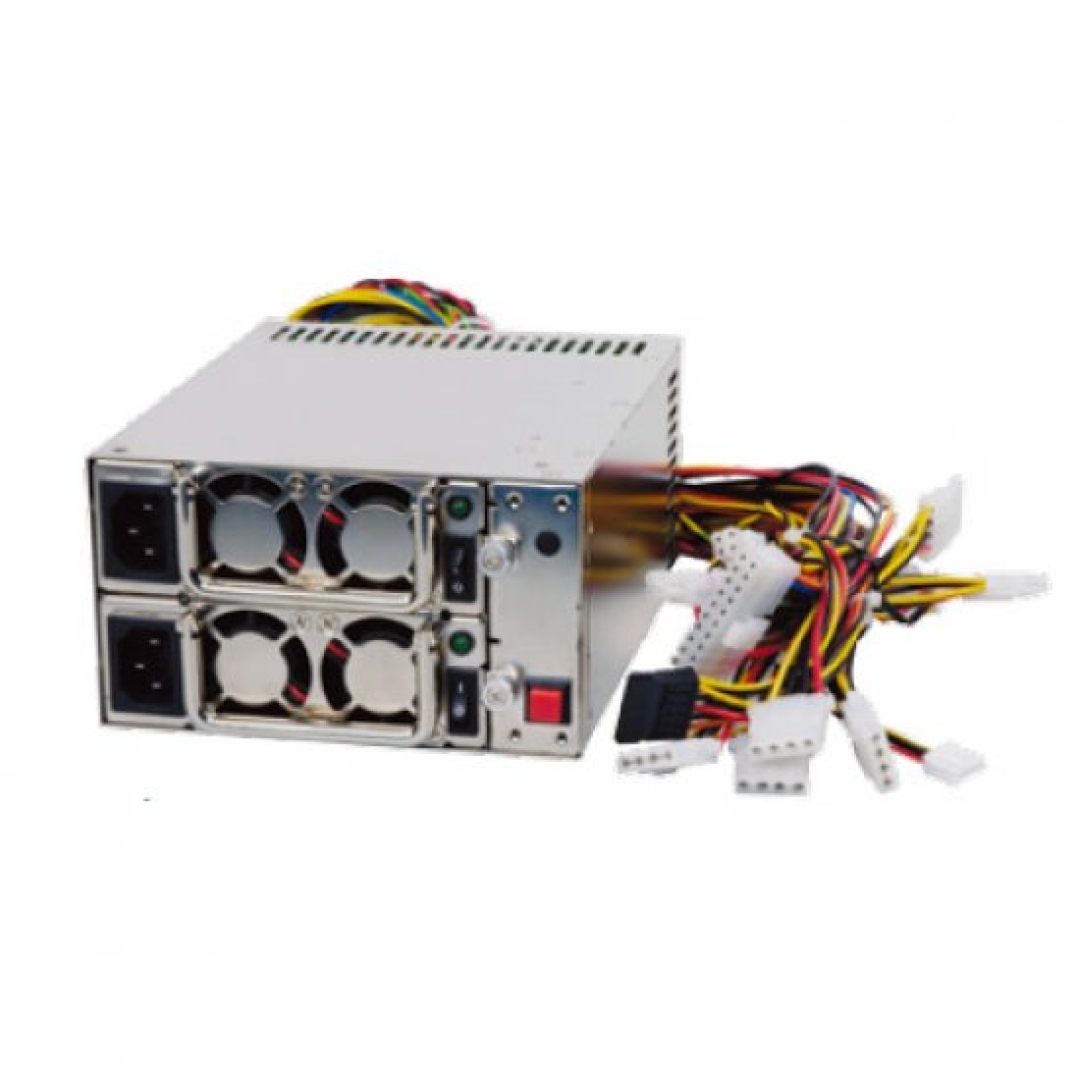

100% MEET ROHS COMPLIANCE HIGH EFFICIENCY AND RELIABILITY LOW NOISE AND RIPPLE ATX2.0 STANDARD W/ NEW 20+4PIN ATX POWER AND SATA CONNECTOR DESIGN FULL OVER VOLTAGE/ CURRENT PROTECTION MULTIPLE SAFETY/EMC CERTIFICATED MODEL NO:. ACE-R4130AP-RS FORM FACTOR: MINI-REDUNDANT PS/2 OUTPUT WATTAGE: 300 W OUTPUT VOLTAGE +3.3V +5V +12V -5V -12V +5VSB MIN. LOAD 1A 3A 2A 0A 0A 0.1A MAX. LOAD 18A 25A 16A 0.5A 0.5A 2A RIPPLE(MV) 50 50 120 150 150 60 INPUT VOLTAGE 85 ~ 264VAC FULL RANGE FREQUENCY 47 ~ 63HZ INPUT CURRENT 6A(RMS)@110VAC INRUSH CURRENT 60A MAX FOR 110VAC PFC ACTIVE HOLD-UP TIME 16MS MINIMUM EFFICIENCY: 63% MIN. MTBF: 160,000 HOURS TEMPERATURE 0 ~ 40°C (OPERATING) -20 ~ 80°C (STORAGE)   DIMENSION: 185 X 150 X 86 MM ACE-R4130AP1-RS IPO FONTE MINI REDUNDANTE 300W ATX PFC MAIORES DETALHES DE ACE-R4130AP1-RS NO SITE DO FABRICANTE: HTTP://WWW.IEIWORLD.COM/PRODUCT_GROUPS/INDUSTRIAL/CONTENT.ASPX?GID=0904953980526 TAGS DE ACE-R4130AP1-RS: ACE-R4130AP1-RS, ACER4130AP1RS, ROHS, FONTE REDUNDANTE, FONTE HOT SWAP, FONTE DELL, FONTE HP, FONTE IBM, FONTE PROLIANT, FONTE SERVER, FONTE DE ALIMENTAÇAO, FONTE DE SERVIDOR, FONTE PARA SERVIDOR, IPO TECHNOLOGIE
