Especificações Técnicas

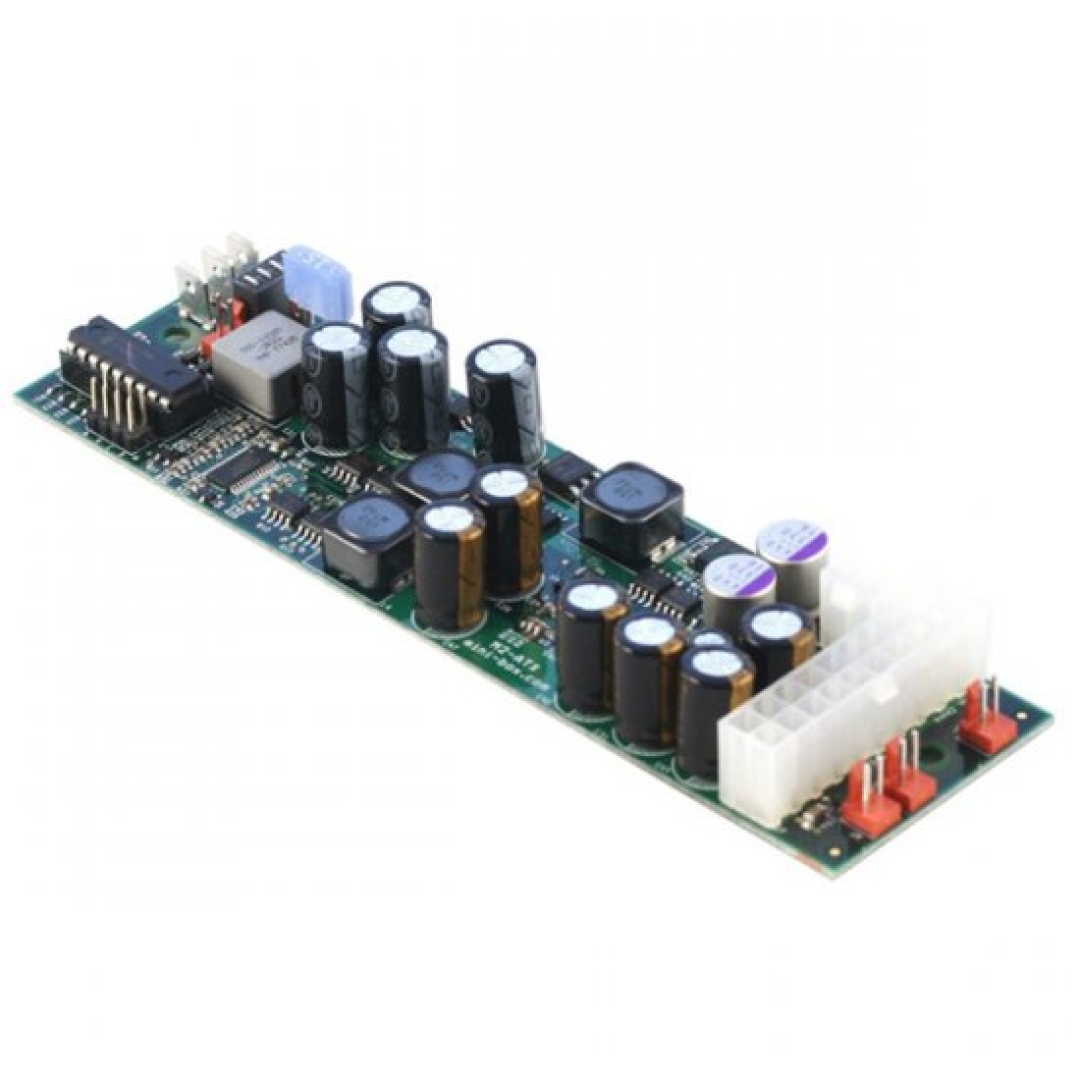

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: M2ATXHV FONTE DE ALIMENTAÇAO AUTOMOTIVA INTELIGENTE, DE 140W, COM ENTRADA 6 A 32 VDC E SAIDA ATX. IDEAL PARA CARPC ESPECIALMENTE PARA ÔNIBUS. SUPORTA RUIDOS E INTERFERÊNCIAS COMUNS EM VEICULOS.  CARACTERISTICAS: - POTÊNCIA 140W. - TIPO DE CONVERSAO DC/DC. - TENSAO DE ALIMENTAÇAO 6~32VDC. - CONTROLE INTELIGENTE DE DESLIGAMENTO. - SUPORTA RUIDOS E INTERFERÊNCIAS COMUNS EM VEICULOS. - SISTEMA DE PREVENÇAO A DESCARGA TOTAL DA BATERIA. - FUSIVEL AUTOMOTIVO DE 15A. - CAPACITORES SOLIDOS DE LONGA DURAÇAO. THE M2-ATX-HV IS AN INTELLIGENT, HIGH-PERFORMANCE, VEHICLE (CAR/BOAT/ELECTRIC CART) 12-VOLT DC-DC ATX PC POWER SUPPLY DESIGNED FOR CAR PC AND BATTERY-POWERED APPLICATIONS. DESIGNED TO PROVIDE POWER AND TO CONTROL THE ON/OFF SWITCH OF A MAINBOARD (CAR PC) BASED ON IGNITION STATUS, THE M2-ATX-HV IS A WIDE INPUT (6~32 V) VEHICLE/CAR/BATTERY OPERATED ATX POWER SUPPLY CAPABLE OF SURVIVING TOUGH CAR ENGINE CRANKS (DOWN TO 6 VOLTS), AS WELL AS TRANSIENT OVER-VOLTAGE SITUATIONS. JUST CONNECT IT TO YOUR CAR/BOAT/RV/SOLAR BATTERY AND POWER UP YOUR PC! M2-ATX-HV HAS 8 USER-SELECTABLE MICROCONTROLLER DRIVEN TIMING MODES, ALLOWING YOU TO CHOOSE UP TO 8 IGNITION/SHUTDOWN CAR PC TIMING SCHEMES VIA A BUILT-IN SHUTDOWN CONTROLLER. BY REMOVING ALL USER-SELECTABLE JUMPERS, THE M2-ATX-HV BECOMES A TRADITIONAL PC PSU WITH NO IGNITION CONTROL (SHUTDOWN CONTROLLER BYPASSED), AND IT CAN BE USED IN NON-VEHICLE COMPUTER APPLICATIONS. EVEN IF YOUR COMPUTER IS TOTALLY OFF, A PC WILL STILL CONSUME A FEW HUNDRED MILLIWATTS, WHICH ARE NEEDED TO MONITOR PC ON/OFF STATUS. WHEN THE COMPUTER (CAR PC) IS IN THE SUSPEND/ MODE, IT WILL CONSUME EVEN MORE POWER, BECAUSE THE RAM NEEDS TO BE POWERED AT ALL TIMES. THE POWER CONSUMPTION IN THE SUSPEND MODE IS A FEW WATTS. NO MATTER HOW BIG YOUR CAR BATTERY IS, IT WILL EVENTUALLY DRAIN YOUR VEHICLE BATTERY IN A MATTER OF DAYS.  WHILE IN DEEP MODE, M2-ATX-HV CONSTANTLY MONITORS YOUR CAR BATTERY VOLTAGE LEVELS, PREVENTING DEEP DISCHARGE SITUATIONS BY AUTOMATICALLY SHUTTING DOWN (USING A BUILT-IN SHUTDOWN CONTROLLER) UNTIL BATTERY LEVELS REACH SAFE LEVELS AGAIN. THESE FEATURES, ALONG WITH MULTIPLE TIMING SCHEMES, A SMALL FOOTPRINT, AND A VERY COMPETITIVE PRICE, MAKES THE M2-ATX-HV THE BEST SOLUTION FOR DC-DC ATX VEHICLE/CAR PC POWER SUPPLY SOLUTIONS.  M2-ATX-HV IS FORM FACTOR COMPATIBLE WITH THE VOOMPC ENCLOSURE AND WITH MOST CASETRONIC AND MOREX CHASSIS, AND IT IS FOOTPRINT COMPATIBLE WITH THE M1-ATX. THE SAME VERSION OF MICROCODE WILL RUN ON BOTH M1-ATX AND M2-ATX.  OSB: ITEM NAO ACOMPANHA CABOS, SOMENTE PLACA DA FONTE M2-ATX-HV PICO SIZE FONTE AUTOMOTIVA 140W ATX ENTRADA 6 A 32V MAIORES DETALHES DE M2-ATX-HV NO SITE DO FABRICANTE: HTTP://WWW.MINI-BOX.COM/M2-ATX-HV-140W-INTELLIGENT-AUTOMOTIVE-DC-DC-POWER-SUPPLY TAGS DE M2-ATX-HV: M2-ATX-HV, M2-ATX HV, MSDD-25N, MSDD25N, M2ATXHV, CARPCS, FONTE VEICULAR, FONTE AUTOMOTIVA, FONTE ATX AUTOMOTIVA, CONVERSOR DC-DC - MINI-ITX, DC-DC POWER SUPPLY CAR PC CARPUTER, AC/DC BARREL CONNECTOR, AC-DC 12V-6.6A, P4-12V CABLE, FONTE DELL, FONTE HP, FONTE IBM, FONTE REAL, FONTE DE ALIMENTAÇAO, PICO SIZE COMPUTING, FONTE ATX PARA ONIBUS, FONTE PARA ONIBUS, FONTE PARA PC DE ONIBUS, FONTE ATX PARA 12V DC, FONTE ATX PARA CARRO, FONTE ATX PARA COMPUTADOR DE ONIBUS

Informações Adicionais
