Especificações Técnicas

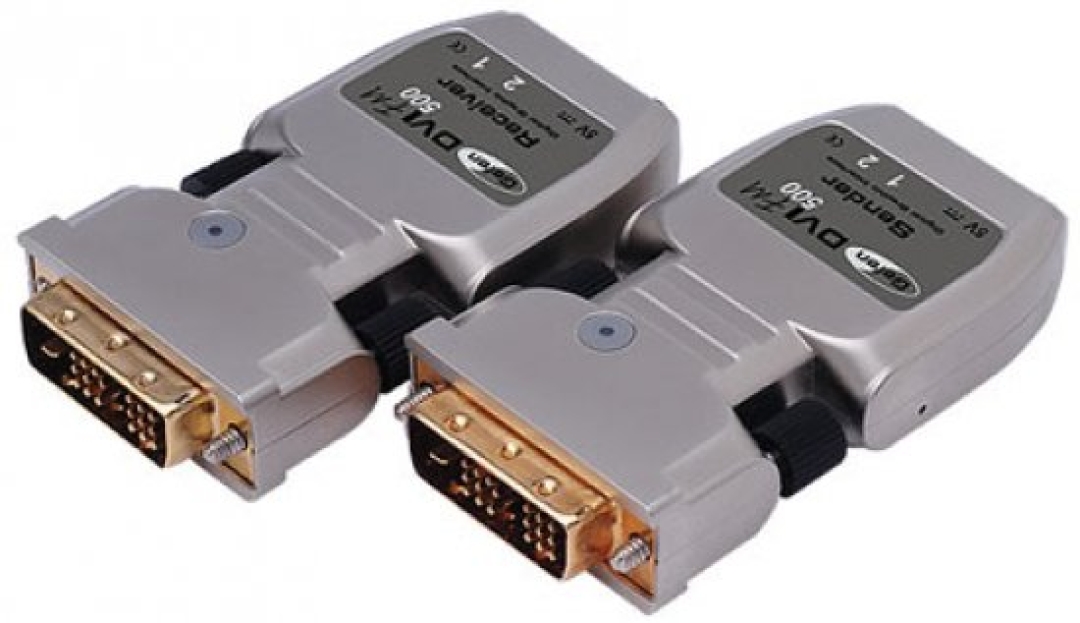

PAINLESS, RELIABLE DVI EXTENSION OVER FIBER -- WITH BUILT-IN DVI-TO-FIBER SIGNAL CONVERTERS AND EDID STORAGE, ALL IN A TINY FORM FACTOR! THE GEFEN  FM500  DVI FIBER OPTIC EXTENDER ALLOWS DVI SIGNAL TO BE EXTENDED UP TO 5000 FEET (1.5 KM) AWAY.  THIS EXTENDER IS THE IDEAL FOR INSTALLATIONS WHERE A DVI SOURCE AND DISPLAY ARE LOCATED APART FROM EACH OTHER IN AN INTERFERENCE-PRONE OPERATING ENVIRONMENT. TWO STRANDS OF LC-TERMINATED FIBER OPTIC CABLE PROVIDES MAXIMUM EXTENSION AND PROVIDES EXCELLENT PROTECTION FROM ELECTROMAGNETIC INTERFERENCE (EMI), AND PRESERVING SIGNAL INTEGRITY. THE AUTOMATIC  EDID PROGRAMMING FEATURE ENABLES QUICK AND CORRECT SYNCHRONIZATION OF THE VIDEO SOURCE TO THE DISPLAY WITHOUT ANY MANUAL CONFIGURATION NEEDED. THIS ALLOWS RAPID RECOVERY OF PICTURE UPON DISPLAY POWER UP OR WHEN USED IN CONJUNCTION WITH SWITCHERS AND MATRIXES. VIDEO SUPPORT SUPPORTS RESOLUTIONS UP TO 1920 X 1200 OTHER SPECIFICATIONS MAXIMUM PIXEL CLOCK:165MHZ INPUT VIDEO SIGNAL:1.2V P-P INPUT DDC SIGNAL:5V P-P (TTL) SUPPORTED FIBER TYPES:SINGLE-MODE 89 µM (5000 FEET) OR MULTI-MODE 50/62.5 µM (1500 FEET) DEFAULT EDID:UXGA (1600 X 1200) VIDEO INPUT CONNECTOR (SENDER):(1) DVI-D (19 PIN), MALE (DIGITAL ONLY) VIDEO OUTPUT CONNECTOR (RECEIVER):(1) DVI-D (19 PIN), MALE (DIGITAL ONLY) LINK CONNECTORS (SENDER / RECEIVER):(2) TYPE LC (1 DUPLEX) FIBER CONNECTORS LED INDICATORS (SENDER / RECEIVER):(1) EDID STATUS PROGRAM BUTTON (SENDER):EDID PROGRAM (RECESSED) FIBER CABLE:DUPLEX, LC-TERMINATED, SINGLE-MODE OR MULTI-MODE (OM1 (62.5/125 µM), OR OM2/OM3/OM3E/OM4 (50/125 µM)) POWER SUPPLY (RECEIVER):5V DC (SECOND POWER SUPPLY INCLUDED FOR USE IF SOURCE DOES NOT PROVIDE 5V POWER FOR SENDER OVER DVI CONNECTOR) POWER CONSUMPTION:2.5W (MAX.) OPERATING TEMPERATURE:0 C - 50 C STORAGE TEMPERATURE:-10 C - 85 C OPERATING HUMIDITY:5% - 85% DIMENSIONS (SENDER / RECEIVER):1.5 INCHES W X 2.5 INCHES D X 0.5 INCHES H IN THE BOX 1- DVI FM 500 SENDER UNIT 1- DVI FM 500 RECEIVER UNIT 1- 5V DC POWER SUPPLY (EXT-PS51AIP-1.3) 1- USER MANUAL EXT-DVI-FM500 GEFEN EXTENSÃO DVI SOBRE FIBRA ÓPTICA MAIORES DETALHES DE EXT-DVI-FM500 NO SITE DO FABRICANTE: HTTPS://WWW.GEFEN.COM/PRODUCT/DVI-FM-500-EXTENDER-EXT-DVI-FM500 TAGS DE EXT-DVI-FM500: GEFEN EXT-DVI-FM500 DVI FM 500 EXTENDER, EXT-DVI-1CAT6, EXT-DVI-FM500, EXTENÇÃO DVI, EXTENSAO DVI, DVI OVER FC, DVI OVER FIBRE OPTIC
