Especificações Técnicas

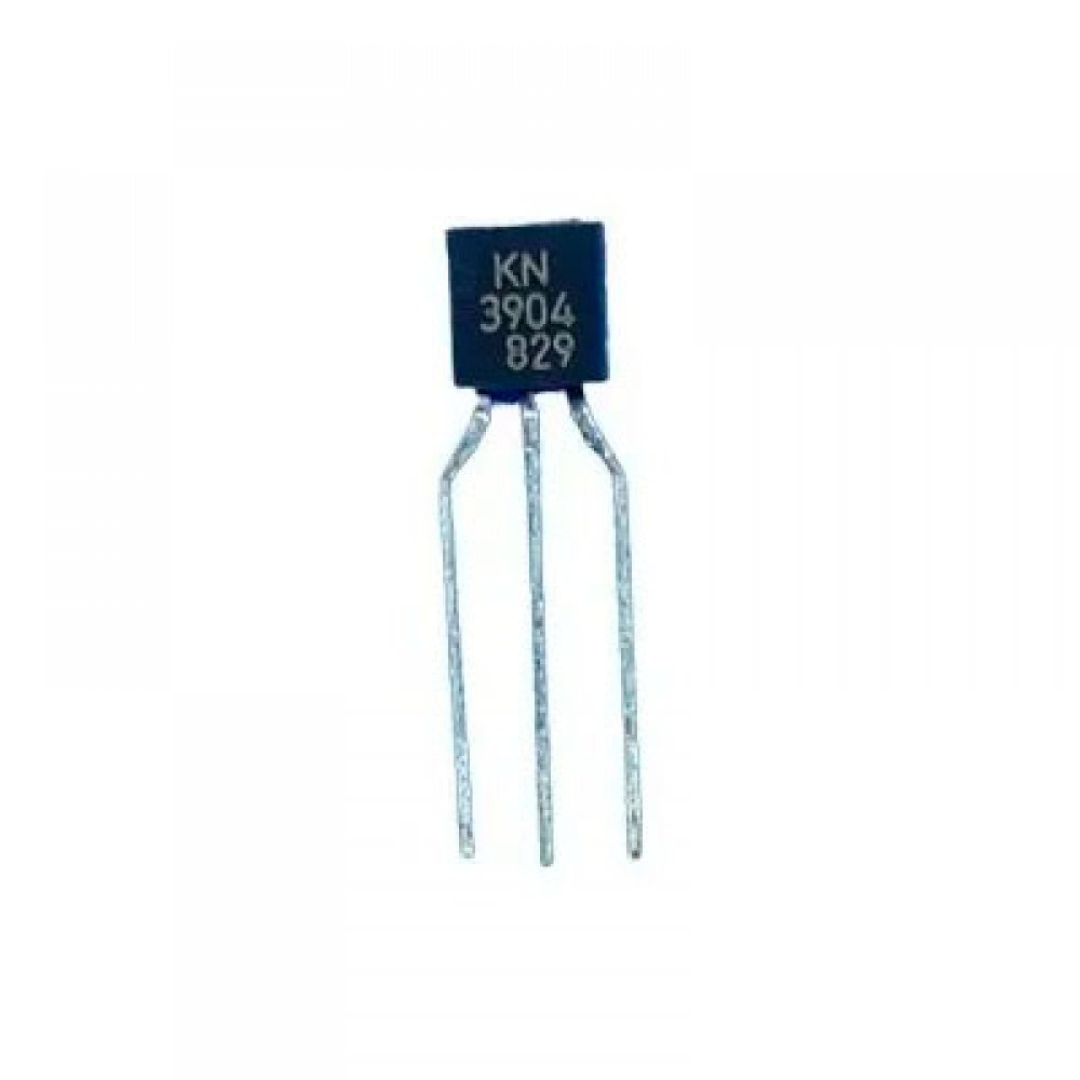

TYPE DESIGNATOR: KN3904 MATERIAL OF TRANSISTOR: SI POLARITY: NPN MAXIMUM COLLECTOR POWER DISSIPATION (PC): 0.625 W MAXIMUM COLLECTOR-BASE VOLTAGE |VCB|: 60 V MAXIMUM COLLECTOR-EMITTER VOLTAGE |VCE|: 40 V MAXIMUM EMITTER-BASE VOLTAGE |VEB|: 6 V MAXIMUM COLLECTOR CURRENT |IC MAX|: 0.2 A MAX. OPERATING JUNCTION TEMPERATURE (TJ): 150 °C TRANSITION FREQUENCY (FT): 300 MHZ COLLECTOR CAPACITANCE (CC): 4 PF FORWARD CURRENT TRANSFER RATIO (HFE), MIN: 100 NOISE FIGURE, DB: - PACKAGE: TO92         KIT COM 10 UNIDADES KN3904 EPITAXIAL PLANAR NPN TRANSISTOR 40V 200MA TO-92 TAGS DE KN3904: KN3904, TRANSISTOR NPN, 2N3904, K3904
