Especificações Técnicas

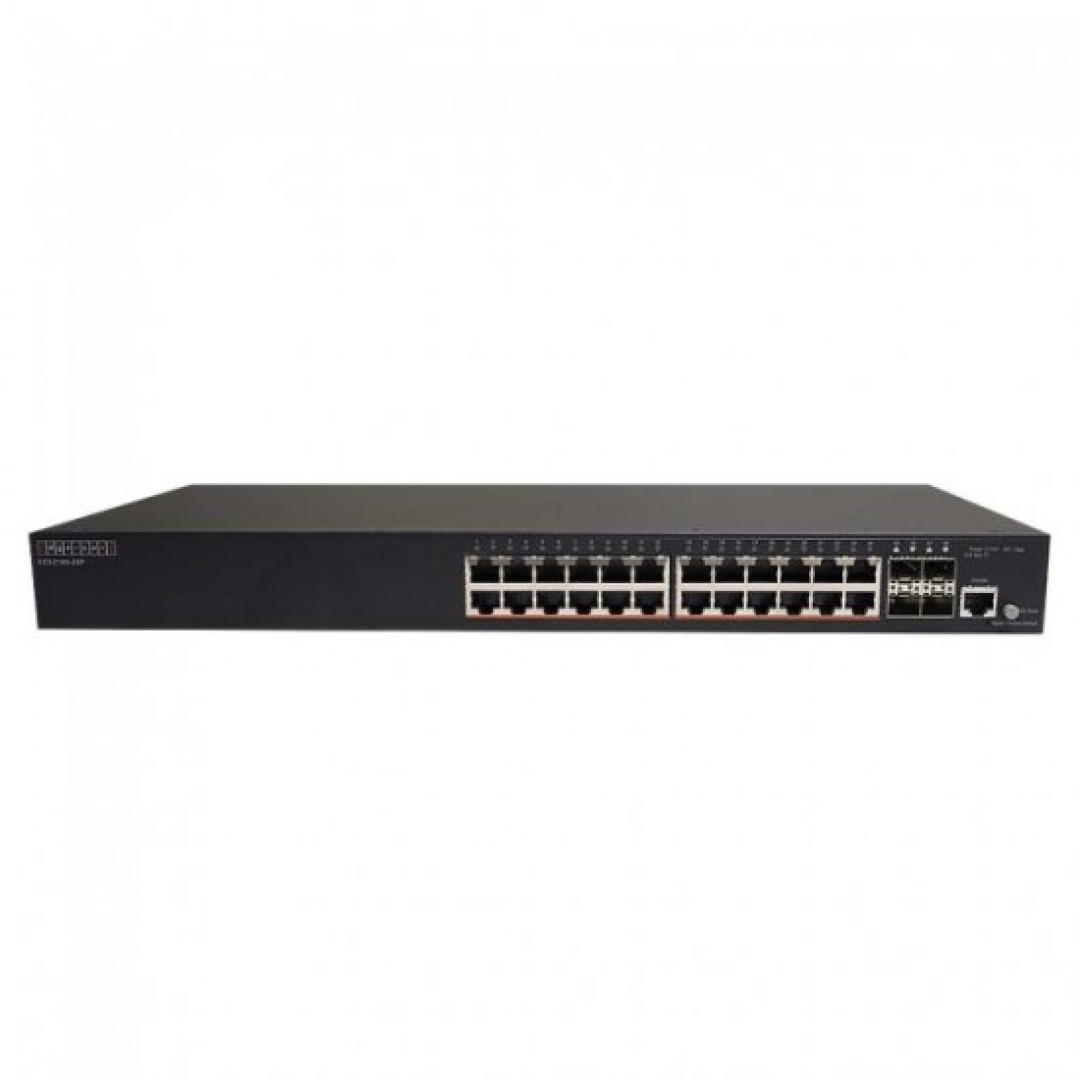

SPECIFICATIONS: TYPE: VLAN GROUPS VALUE: 4000 DIMENSIONS & WEIGHT DEPTH: 8.7 IN HEIGHT: 1.7 IN WEIGHT: 6.17 LBS WIDTH: 17.3 IN HUMIDITY RANGE OPERATING: 10 - 90% (NON-CONDENSING) HUMIDITY RANGE STORAGE: 10 - 90% (NON-CONDENSING) MAX OPERATING TEMPERATURE: 122 °F MAX STORAGE TEMPERATURE: 158 °F MIN OPERATING TEMPERATURE: 32 °F MIN STORAGE TEMPERATURE: -40 °F INSTALLED SIZE: 32 MB BRAND: EDGE-CORE COMPATIBILITY: PC MANUFACTURER: SMC MODEL: ECS2100-28P PRODUCT LINE: EDGE-CORE INTERFACE PROVIDED COMMENTS: POE CONNECTOR TYPE: RJ-45 TYPE: 1000BASE-T COMMENTS: UPLINK CONNECTOR TYPE: SFP TYPE: 1000BASE-X COMMENTS: MANAGEMENT NETWORKING COMPLIANT STANDARDS: IEEE 802.1Q , IEEE 802.3AD (LACP) , IEEE 802.3AZ FEATURES: 12MBIT PACKET BUFFER , ACCESS CONTROL LIST (ACL) SUPPORT , ARP INSPECTION , CLASS OF SERVICE (COS) , DIFFSERV CODE POINT (DSCP) SUPPORT , DIFFSERV SUPPORT , FIRMWARE UPGRADABLE , IGMP SNOOPING , IP SOURCE GUARD , IPV4 SUPPORT , IPV6 SUPPORT , JUMBO FRAMES SUPPORT , LINK AGGREGATION CONTROL PROTOCOL (LACP) , MAC ADDRESS FILTERING , QUALITY OF SERVICE (QOS) , STRICT PRIORITY (SP) , WEIGHTED ROUND ROBIN (WRR) QUEUING FORM FACTOR: RACK-MOUNTABLE JUMBO FRAME SUPPORT: 10KB MAC ADDRESS TABLE SIZE: 16K ENTRIES MANAGEABLE: YES POE BUDGET: 200 W PORTS QTY: 28 POWER OVER ETHERNET (POE): POE REMOTE MANAGEMENT PROTOCOL: HTTP , SNMP , SSH-2 , TELNET , TFTP ROUTING PROTOCOL: STATIC IP ROUTING SMART: YES SUBCATEGORY: NETWORK HUBS AND SWITCHES SUBTYPE: GIGABIT ETHERNET SWITCH PERFORMANCE TYPE: SWITCHING CAPACITY VALUE: 56 GBPS TYPE: FORWARDING PERFORMANCE VALUE: 41.7 MPPS ECS2100-28P EDGE-CORE SWITCH 28 PORTAS GIGABIT TAGS DE ECS2100-28P: SWITCH 28 PORTAS GIGABIT, SWITCH 24 PORTAS POE, SWITCH SFP, SWITCH EDGE, SWITCH EDGECORE, ECS2100-28P, ECS2100, ECS2100 28P, SFP - ECS2100-28P, SMC/EDGE-CORE
