Especificações Técnicas

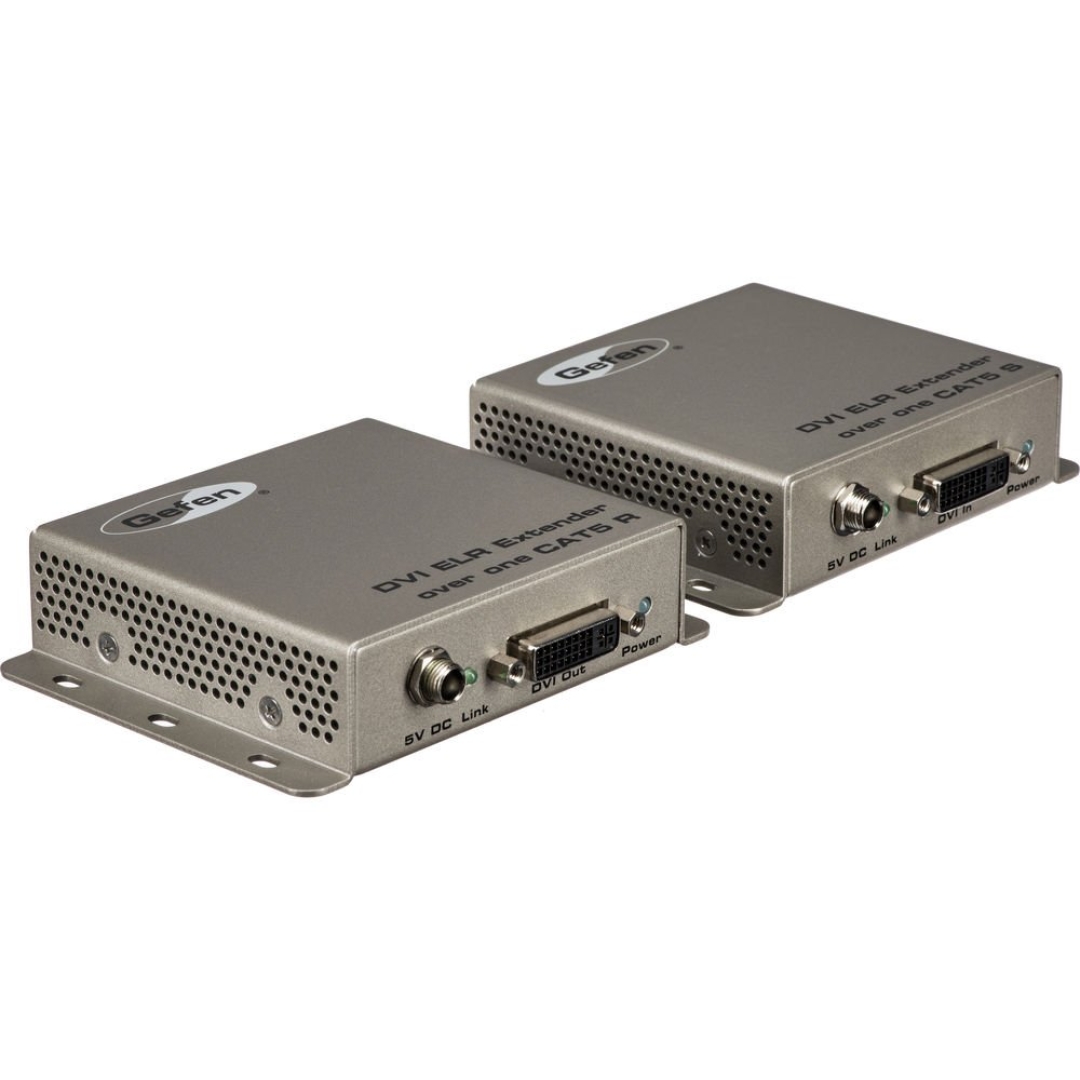

EXTEND DVI UP TO 330 FEET (100 METERS) OVER ONE CAT-5 CABLE THE DVI EXTRA LONG RANGE EXTENDER OVER CAT-5 EXTENDS ANY DVI SOURCE TO AN HD DISPLAY OR OTHER DIGITAL SIGNAGE APPLICATION UP TO 330 FEET (100 METERS). THIS PRODUCT USES GEFEN ELR TECHNOLOGY, DELIVERING UNCOMPRESSED DVI VIDEO TO 1920X1200 OVER A SINGLE CAT-5 CABLE, REDUCING CABLE COSTS AND PROVIDING EASIER INSTALLATION. HOW IT WORKS PLACE THE DVI EXTRA LONG RANGE EXTENDER SENDER UNIT NEXT TO THE DVI SOURCE. USE THE INCLUDED DVI CABLE TO CONNECT THE SOURCE TO THE SENDER UNIT. CONNECT THE RECEIVER UNIT TO THE DISPLAY WITH A DVI CABLE. USE ONE CAT-5 CABLE, UP TO 330 FEET (100 METERS), TO CONNECT THE SENDER TO THE RECEIVER UNIT. CONNECT THE INCLUDED LOCKING POWER SUPPLIES TO THE SENDER AND RECEIVER UNITS, AND THEN CONNECT BOTH POWER CABLES TO AVAILABLE ELECTRICAL OUTLETS. NOTE:  THIS PRODUCT DOES NOT SUPPORT HDCP CONTENT WITH DVI SOURCES. FEATURES: -SUPPORTS DVI RESOLUTIONS TO 1920X1200@60 HZ OR 1080P AT 330 FEET (100 METERS) -EDID MANAGEMENT FOR LOCAL AND PASS-THROUGH MODES -LOCKING POWER SUPPLIES FOR SECURE CONNECTIONS -WALL MOUNTABLE SPECIFICATIONS: -MAXIMUM PIXEL CLOCK: 165 MHZ -INPUT VIDEO SIGNAL: 1.2 VOLTS P-P -INPUT DDC SIGNAL: 5 VOLTS P-P (TTL) -DVI CONNECTOR (SENDER / RECEIVER): DVI-I, 29-PIN, FEMALE (DIGITAL ONLY) -LINK CONNECTOR (SENDER / RECEIVER): RJ-45 -POWER SUPPLY (SENDER / RECEIVER): 5V DC -POWER CONSUMPTION: 10 W PER UNIT (MAX.) -OPERATING TEMPERATURE: 0 - 40 °C -DIMENSIONS: 5.0 W X 1.25 H X 3.4 D -SHIPPING WEIGHT: 4 LBS. PACKAGE INCLUDES: -(1) GEFEN DVI EXTRA LONG RANGE EXTENDER - SENDER UNIT -(1) GEFEN DVI EXTRA LONG RANGE EXTENDER - RECEIVER UNIT -(1) 6 FT. DVI CABLE (M-M) -(2) 5V DC LOCKING POWER SUPPLIES -(1) QUICK-START GUIDE EXT-DVI-ELR GEFEN DVI EXTENDER 100M VIA CAT5 1920X1200 MAIORES DETALHES DE EXT-DVI-ELR NO SITE DO FABRICANTE: HTTP://WWW.GEFEN.COM/KVM/DPRODUCT.JSP?PROD_ID=9967 TAGS DE EXT-DVI-ELR: EXT-DVI-1CAT5-ELR, DVX200, EXT-DVI-ELR, EXT-DVI-1CAT5-ELR, EXTDVIELR, EXTENSOR DVI, DVI EXTENSOR, EXT-DVI-2CAT6DL, EXT-DVI-ELR-CO

Informações Adicionais
