Especificações Técnicas

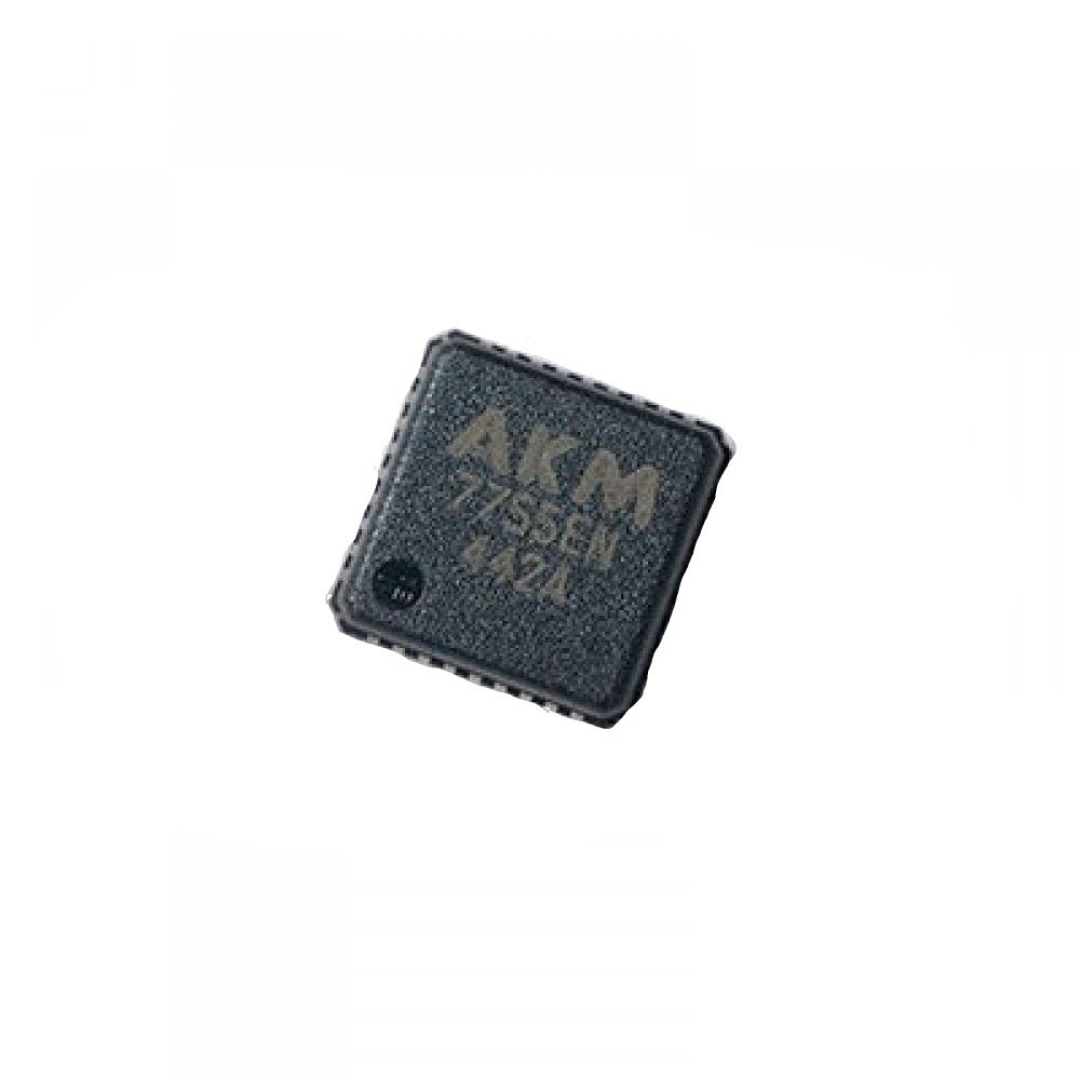

DESCRIPTION   THE AK7755EN IS A HIGHLY INTEGRATED DIGITAL SIGNAL PROCESSOR, INCLUDING A MONO ADC, A STEREO AUDIO CODEC, A MIC PRE-AMPLIFIER, A LINE-OUT AMPLIFIER AND DIGITAL AUDIO I / F. - THE AUDIO DSP HAS 2560 STEP AT FS 48KHZ PARALLEL PROCESSING POWER. AS THE AK7755EN IS A RAM BASED DSP, IT IS PROGRAMMABLE FOR USER REQUIREMENTS SUCH AS HIGH PERFORMANCE HANDS FREE AND ACOUSTIC EFFECTS. THE AK7755EN IS AVAILABLE IN A SPACE SAVING SMALL 36-PIN QFN PACKAGE. KEY FEATURES DSP WITH CODEC SUITABLE FOR THE CONSUMER DEVICES 36PIN QFN PACKAGE APPLICATIONS DIGITAL AUDIO DEVICE APPLICATIONS, DOOR PHONE AND SURVEILLANCE CAMERA SYSTEM ETC. TYPE: FLOATING POINT INTERFACE: I2C, SPI CLOCK RATE: 18.6MHZ NON-VOLATILE MEMORY: - ON-CHIP RAM: 54KB VOLTAGE - I/O: 3.30V VOLTAGE - CORE: 1.20V OPERATING TEMPERATURE: -40-C ~ 85-C (TA) MOUNTING TYPE: SURFACE MOUNT PACKAGE / CASE: 36-VFQFN EXPOSED PAD SUPPLIER DEVICE PACKAGE: 36-QFN (6X6) 7755EN DSP WITH MONO ADC STEREO CODEC + MIC LINEOUT MAIORES DETALHES DE 7755EN NO SITE DO FABRICANTE: HTTPS://WWW.AKM.COM/GLOBAL/EN/PRODUCTS/AUDIO-VOICE-DSP/LINEUP-AUDIO-VOICE-PROCES TAGS DE 7755EN: AKM7755, AK7755, AK7755EN, QFN36 7755

Informações Adicionais
