Especificações Técnicas

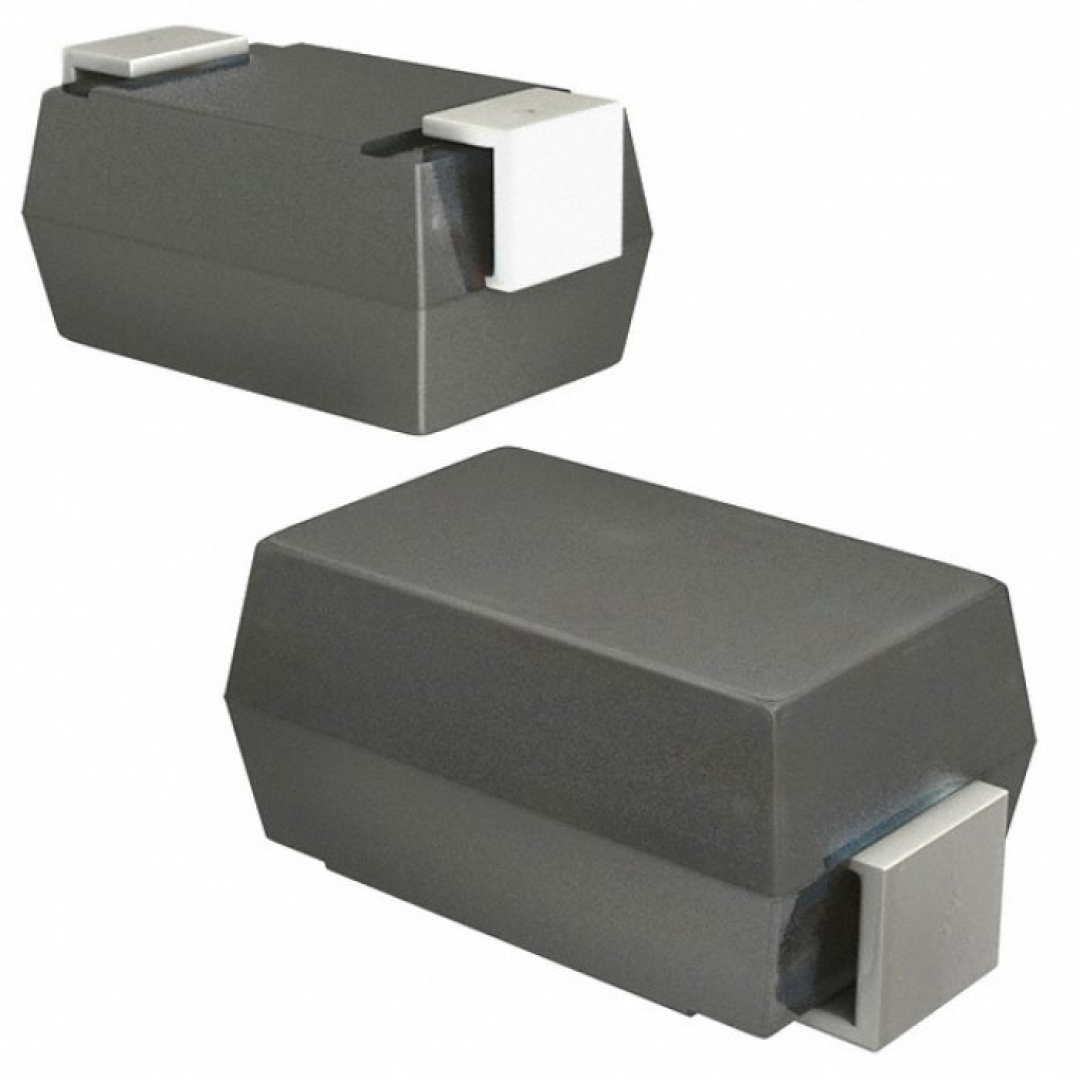

MANUFACTURER MICRO COMMERCIAL CO   SERIES -   PACKAGING  CUT TAPE (CT)    PART STATUS ACTIVE   DIODE TYPE STANDARD   VOLTAGE - DC REVERSE (VR) (MAX) 800V   CURRENT - AVERAGE RECTIFIED (IO) 1A   VOLTAGE - FORWARD (VF) (MAX) @ IF 1.7V @ 1A   SPEED FAST RECOVERY =< 500NS, > 200MA (IO)   REVERSE RECOVERY TIME (TRR) 75NS   CURRENT - REVERSE LEAKAGE @ VR 10µA @ 800V   CAPACITANCE @ VR, F 10PF @ 4V, 1MHZ   MOUNTING TYPE SURFACE MOUNT   PACKAGE / CASE DO-214AC, SMA   SUPPLIER DEVICE PACKAGE DO-214AC (SMA)   OPERATING TEMPERATURE - JUNCTION -65°C ~ 175°C US1K-TP DIODO FAST 800V 1A SMA DO-214AC MAIORES DETALHES DE US1K-TP NO SITE DO FABRICANTE: HTTP://WWW.MCCSEMI.COM/UP_PDF/US1A-US1M(DO-214AC).PDF TAGS DE US1K-TP: UF4007, US1K-TPMSDKR-ND, US1K-TP, US1KTP, US1K, US1A, THRU, US1M, RECTIFIERS ULTRA FAST 800V 1A, US1K-TPMSCT-ND, 833-US1K-TP, DIODE FAST 800V 1A SMA DO-214AC, 1 AMP ULTRA FAST RECTIFIER 50 TO 1000 VOLTS, OEM, MCC - MICRO COMMERCIAL COMPONENTS
