Especificações Técnicas

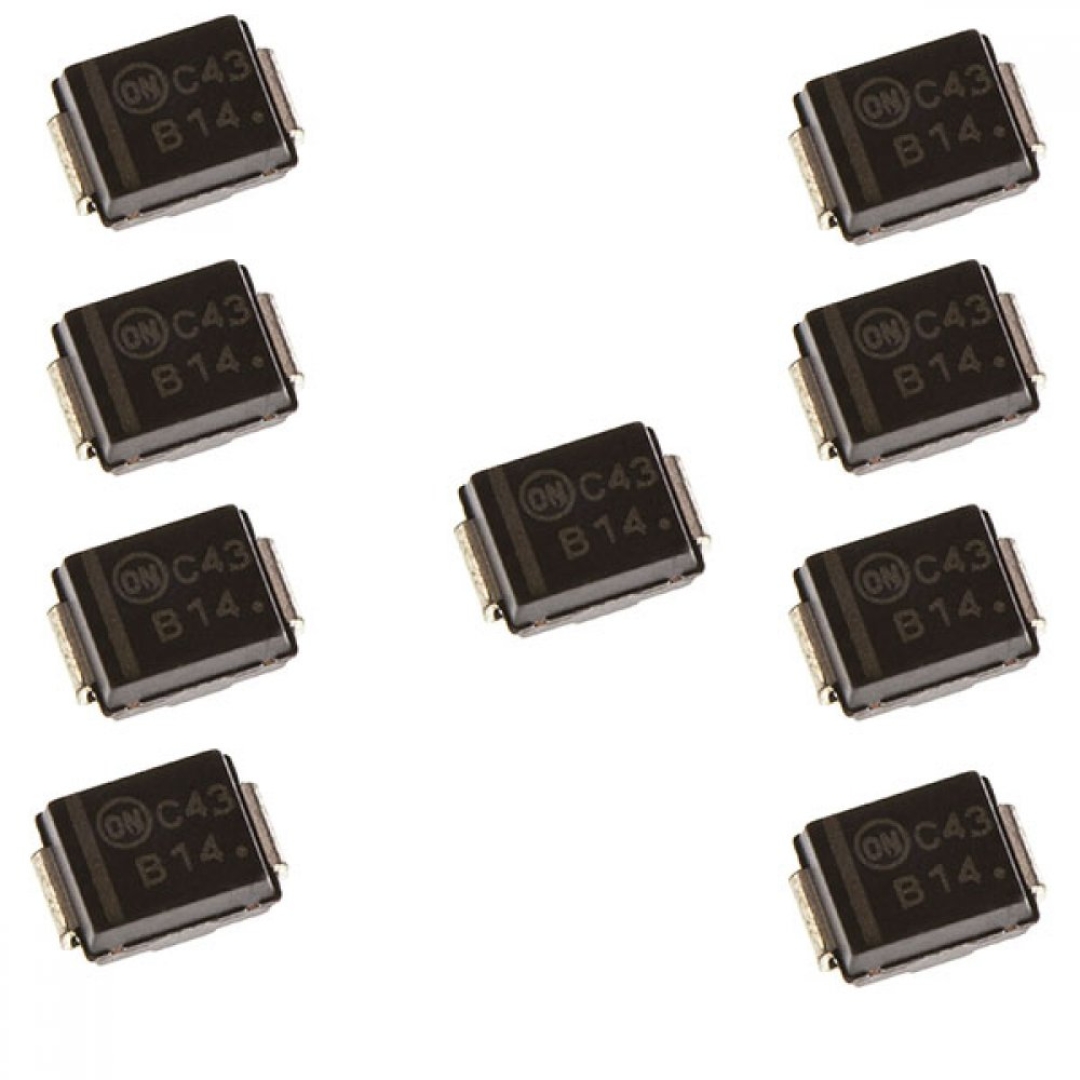

OUTROS PART NUMBERS PARA ESTE COMPONENTE: MBRA140, NRVBA140, NRVBA140N, SBRA140N, SBRA401N THIS DEVICE EMPLOYS THE SCHOTTKY BARRIER PRINCIPLE IN A LARGE AREA METALTOSILICON POWER DIODE. STATE OF THE ART GEOMETRY FEATURES EPITAXIAL CONSTRUCTION WITH OXIDE PASSIVATION AND METAL OVERLAY CONTACT. IDEALLY SUITED FOR LOW VOLTAGE, HIGH FREQUENCY RECTIFICATION, OR AS FREE WHEELING AND POLARITY DIODES IN SURFACE MOUNT APPLICATIONS WHERE COMPACT SIZE AND WEIGHT ARE CRITICAL TO THE SYSTEM.   FEATURES SMALL COMPACT SURFACE MOUNTABLE PACKAGE WITH JBENT LEADS RECTANGULAR PACKAGE FOR AUTOMATED HANDLING HIGHLY STABLE OXIDE PASSIVATED JUNCTION VERY LOW FORWARD VOLTAGE DROP GUARDRING FOR STRESS PROTECTION NRVBA E SBRA PREFIX FOR AUTOMOTIVE AND OTHER APPLICATIONS REQUIRING UNIQUE SITE AND CONTROL CHANGE REQUIREMENTS; AECQ101 QUALIFIED AND PPAP CAPABLE* THESE DEVICES ARE PBFREE, HALOGEN FREE/BFR FREE AND ARE ROHS COMPLIANT   MECHANICAL CHARACTERISTICS CASE: EPOXY, MOLDED WEIGHT: 70 MG (APPROXIMATELY) FINISH: ALL EXTERNAL SURFACES CORROSION RESISTANT AND TERMINAL LEADS ARE READILY SOLDERABLE LEAD AND MOUNTING SURFACE TEMPERATURE FOR SOLDERING PURPOSES: 260C MAX. FOR 10 SECONDS SHIPPED IN 12 MM TAPE, 5000 UNITS PER 13 INCH REEL POLARITY: CATHODE LEAD INDICATED BY EITHER NOTCH IN PLASTIC BODY OR POLARITY BAND   MBRA140T3G DIODO B14 SCHOTTKY 40V 2A SMB DO-214AA (KIT 10 UN) MAIORES DETALHES DE MBRA140T3G NO SITE DO FABRICANTE: HTTPS://WWW.ONSEMI.COM/PDF/DATASHEET/MBRA140T3-D.PDF TAGS DE MBRA140T3G: SCHOTTKY POWER RECTIFIER, MBRA140, NRVBA140, NRVBA140N, SBRA140N, SBRA401N, DIODO B14, DIODO B14 R012., MBRS140

Informações Adicionais
