Especificações Técnicas

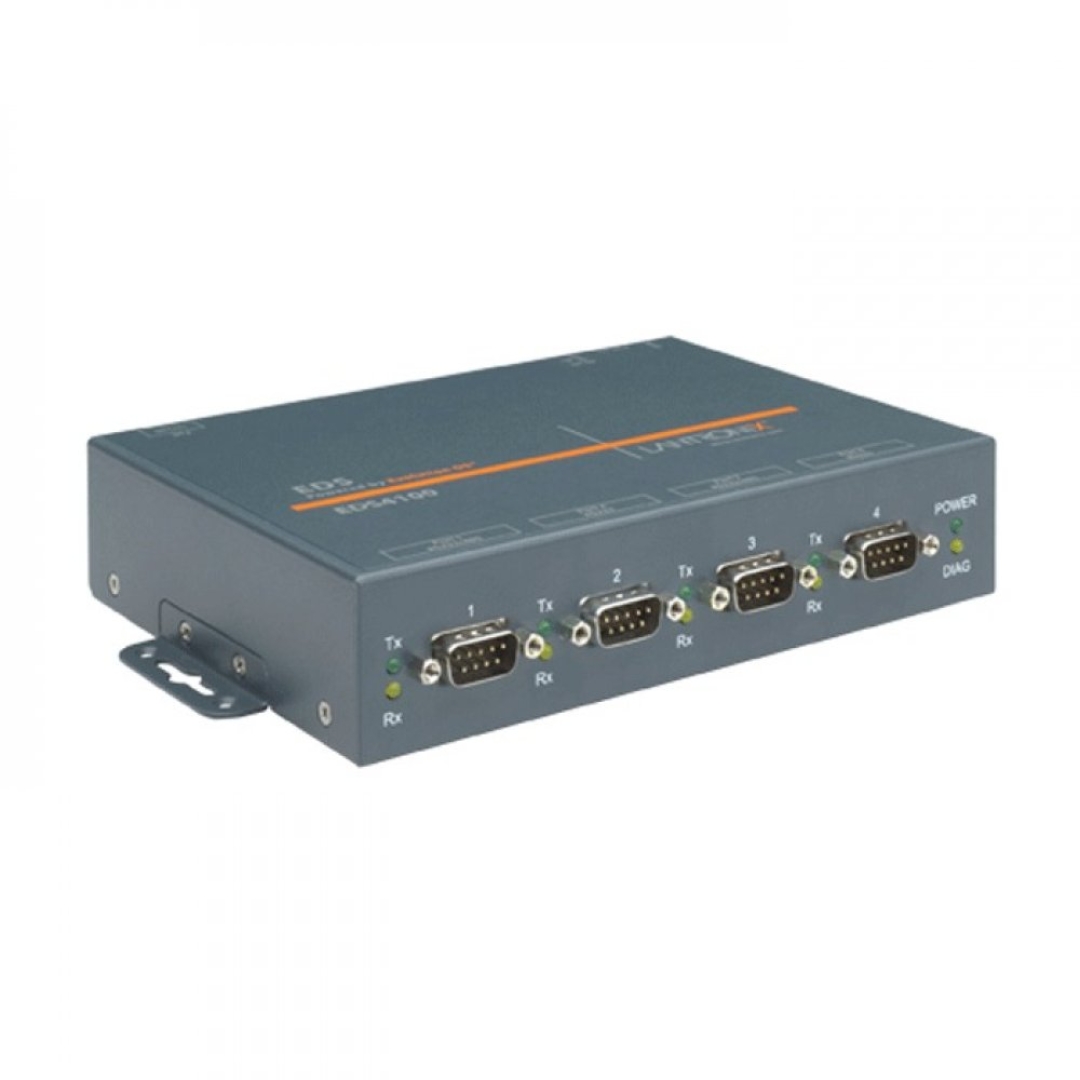

SERIAL INTERFACE - CONNECTORS: 4 X DB9M; 2 X RS232, 2 X RS232/422/485 - BAUD RATE: 300 BPS TO 921.6 KBPS - CHARACTERS: 7 OR 8 DATA BITS - STOP BITS: 1 OR 2 - PARITY: ODD, EVEN, NONE - FLOW CONTROL: CTS/RTS, XON/XOFF ETHERNET INTERFACE - INTERFACE: 10BASE-T/100BASE-T - SPEED: 10/100/AUTO MBPS - CONNECTOR: RJ45 - PROTOCOLS: ARP, UDP, TCP, ICMP, TELNET, SNMP, DHCP, BOOTP, TFTP, AUTO IP, SMTP, FTP, DNS, TRACEROUTE AND HTTP SECURITY - SSL V3, SSH V2 - MD5, SHA-1, BASE-64 - AES 128-BIT ENCRYPTION - 3DES ENCRYPTION - RC4 128-BIT ENCRYPTION - PASSWORD PROTECTION, IP FILTERING LED INDICATORS - POWER, LINK, ACTIVITY, RX ACTIVITY, TX ACTIVITY PROCESSOR - CPU: INTEL XSCALE IXP420 @ 266MHZ - MEMORY: 32 MB SDRAM, 8 MB FLASH POWER REQUIREMENTS - BARREL CONNECTOR: 9-30 VDC - SCREW TERMINAL: 42-56 VDC - POE: 802.3AF COMPLIANT ENVIRONMENTAL LIMITS - OPERATING TEMPERATURE: 0° TO 55°C (32° TO 131°F) - STORAGE TEMPERATURE: -40° TO 70°C (-40 TO 158°F) - OPERATING HUMIDITY: 10% TO 90% - STORAGE HUMIDITY: 10% TO 90% FORM FACTOR - HOUSING: METAL ENCLOSURE WITH REMOVABLE WALL MOUNTS - DIMENSIONS: 3.81 X 17.65* X 12.7 CM (1.5 X 6.95* X 5 IN) - WEIGHT: 0.86KG (1.9LBS) * WITH WALL MOUNTS = 20.14 CM (7.93 IN) AGENCY APPROVALS - FCC, CUL, UL, VCCI, CE, CSA, TUV, C-TICK, GS, CB SCHEME SHIPPING DIMENSIONS - DIMENSIONS: 242 X 191 X 115 MM (9.5 X 7.5 X 4.5 IN) - WEIGHT: 1.44KG (3.19LBS) SOFTWARE - WINDOWS 98/ME/NT/2000/XP/VISTA (32-BIT VERSIONS) DEVICEINSTALLER CONFIGURATION SOFTWARE, COM PORT REDIRECTOR SOFTWARE AND RELATED UTILITIES - MANAGEMENT OPTIONS: WEB BROWSER, TELNET CLIENT, SERIAL TERMINAL, SNMP V2 (MIBII, RS232MIB), XML REGULATORY - FCC PART 15 SUBPART B CLASS A - ICES-003 ISSUE 4 FEBRUARY 2004 CLASS A - AS/NZS CISPR 22: 2004 CLASS A - EN55022: 1998 A1: 2000 A2: 2003 CLASS A - VCCI V-3/2006.4 CLASS A - EN61000-3-2: 2000 CLASS A - EN61000-3-3: 1995 A1: 2001 - EN55024: 1998 A1: 2001 A2: 2003 - IEC_61000-4-2: 1995 8KV AIR, 4KV CONTACT - IEC_61000-4-3: 1995 3.0V/M, 1KHZ AM SINE WAVE AT 80% - IEC_61000-4-4: 1995 1.0KV POWER LINES, 0.5KV I/O LINES - IEC_61000-4-5: 1995 1.0KV COMMON, 1.0 KV DIFFERENTIAL - IEC_61000-4-6: 1996 3.0 VRMS, 80% AM MODULATED (1KHZ) - IEC_61000-4-8: 1993 50HZ 1.0 ARMS/M - IEC_61000-4-11: 1994 (>95%,0.5), (30%,25), (>95%,250) ISOLATION - POWER INPUT: 2KV COMMON MODE AND 1KV DIFFERENTIAL MODE POWER SURGE PROTECTION - SERIAL PORT(S): 15 KV ESD PROTECTION - ETHERNET PORT: 1500 VAC ISOLATION SHIELDED ED41000P0-01 LANTRONIX DEVICE SERVER POE 4 PORT INTL PS 10/100 TAGS DE ED41000P0-01: ED41000P0-01, ED41000P001, ED41000P0 01, SERVIDOR DE DISPOSITIVO, RS232 RS422 RS485, ADAPTADOR, CONVERSOR RJ45, CONVERSOR PARALELO, DEVICE SERVER, CONTROLADORA SERIAL, LANTRONIX, EDS4100
