Especificações Técnicas

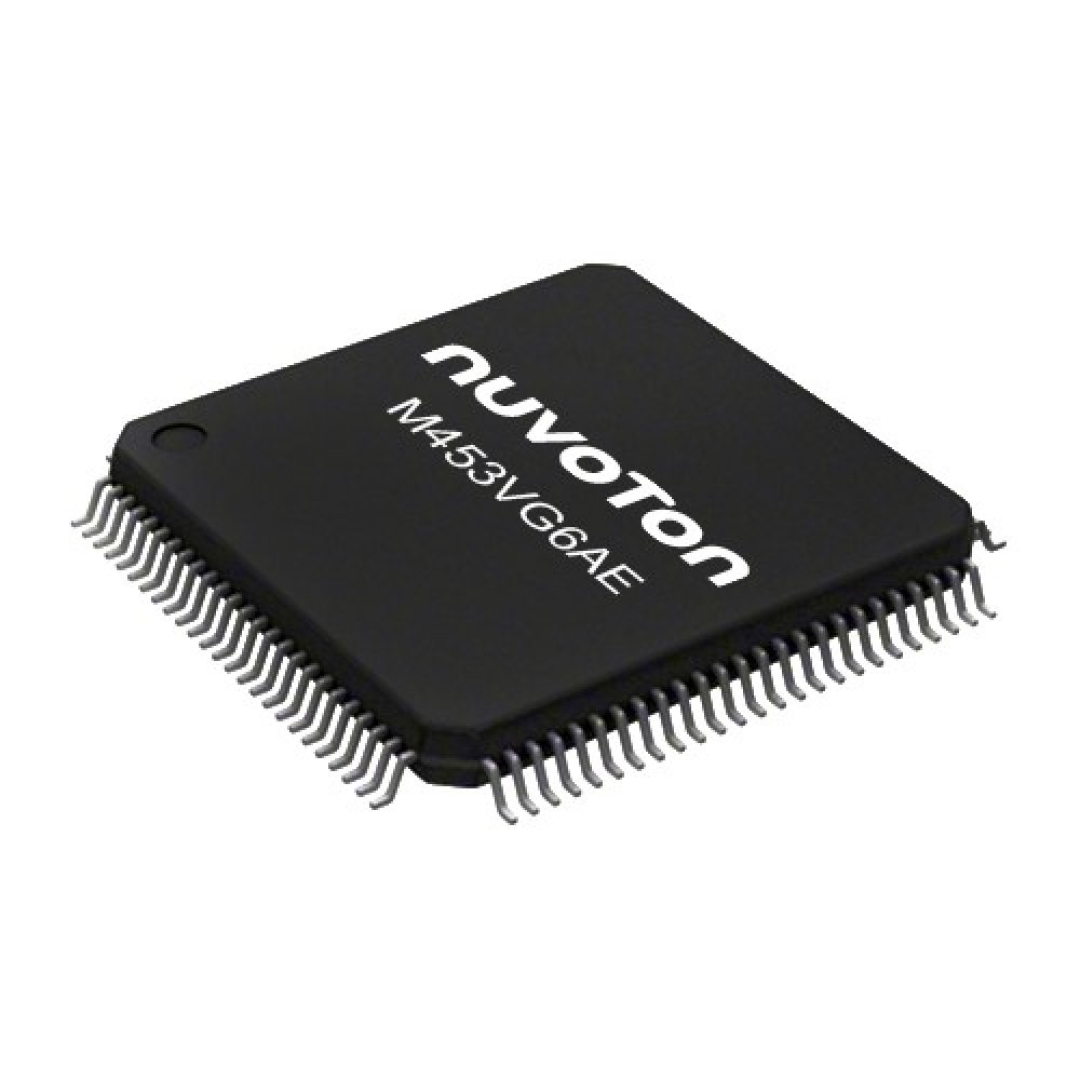

ARM® CORTEX®-M4F SERIES MICROCONTROLLER IC 32-BIT 72MHZ 256KB (256K X 8) FLASH 100-LQFP (14X14)     THE NUMICRO M453 CAN SERIES 32-BIT MICROCONTROLLER ( MCU ) IS EMBEDDED WITH THE ARM® CORTEX®-M4 CORE AND OPERATING AT 2.5V ~ 5.5V AND - 40 - ~ 105 - , AND PROVIDES 22.1184 MHZ INTERNAL OSCILLATOR ( 1% ACCURACY AT 25 - , 5V ) , DATA FLASH CONFIGURABLE AND HIGH IMMUNITY ( 8 KV ESD, 4 KV EFT ) . PACKAGE TYPES INCLUDE LQFP48, LQFP64 AND LQFP100. TARGET APPLICATION: INDUSTRIAL AUTOMATION, PLCS, INVERTERS, HOME AUTOMATION, PORTABLE DATA COLLECTOR, USB ACCESSORIES, SMART CARD READER, MOTOR CONTROL, ETC. KEY FEATURES:   -    CORE -    ARM® CORTEX®-M4 WITH DSP AND FPU -    MAX FREQUENCY OF 72 MHZ -    OPERATING VOLTAGE: 2.5V TO 5.5V -    TEMPERATURE RANGE: - 40 - ~ 105 - -    MEMORY -    256 KB OF FLASH MEMORY -    32 KB OF SRAM -    DATA FLASH CONFIGURABLE -    12-BIT ADC ( UP TO 16 CHANNELS ) -    12-BIT DAC -    16-BIT PWM ( UP TO 12 CHANNELS ) -    TIMERS -    FOUR TIMERS -    RTC ( OPTIONAL ) -    CONNECTIVITY -    USB 2.0 OTG  ( OPTIONAL ) -    CAN ( OPTIONAL ) -    UP TO 5 UART S -    UP TO THREE SPI S -    UP TO TWO I²CS ( UP TO 1 MHZ ) -    SMART CARD INTERFACES ( OPTIONAL ) -    UP TO TWO I²S INTERFACES -    SECURITY -    CRC ENGINE -    CLOCK CONTROL -    4 TO 24 MHZ EXTERNAL CRYSTAL OSCILLATOR -    32.768 KHZ CRYSTAL OSCILLATOR -    22.1184 MHZ INTERNAL RC OSCILLATOR -    10 KHZ INTERNAL RC OSCILLATOR M453VG6AE CORTEX M4 MCU 72MHZ 256 KB FLASH MAIORES DETALHES DE M453VG6AE NO SITE DO FABRICANTE: HTTPS://WWW.NUVOTON.COM/PRODUCTS/MICROCONTROLLERS/ARM-CORTEX-M4-MCUS/M453-CAN-SE TAGS DE M453VG6AE: M463 AMR, M453VG6AE, LPC2368FBD100, NSD1728D, ARM7 SERIES MICROCONTROLLER, MCU LPC2000, ARM LPC2000, ARM7TDMI-S, 10-BIT ADC, 10BIT ADC, CONVERSOR AD 10BITS, CPU RL78 CORE, MICROCONTROLADOR MCU RL78, MICROPROCESSADOR DE DESENVOLVIMENTO, RL78/G13-STARTER-KIT, RENESAS R8C CONTROLLER, RENESAS R5F CONTROLLER, M3062LFGPGP, M3062LFGPGP-U3C, M3062LFGPGP-U5C, M16C/60, 16-BIT MICROCONTROLLERS - MCU, M16C M16C/60/62P, M3062, M3062L, M3062LF, M3062LFGPGPU3C, QSK-62P PLUS, QUICK START KIT M16C/62P EVAL BD, M16C, SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Informações Adicionais
