Especificações Técnicas

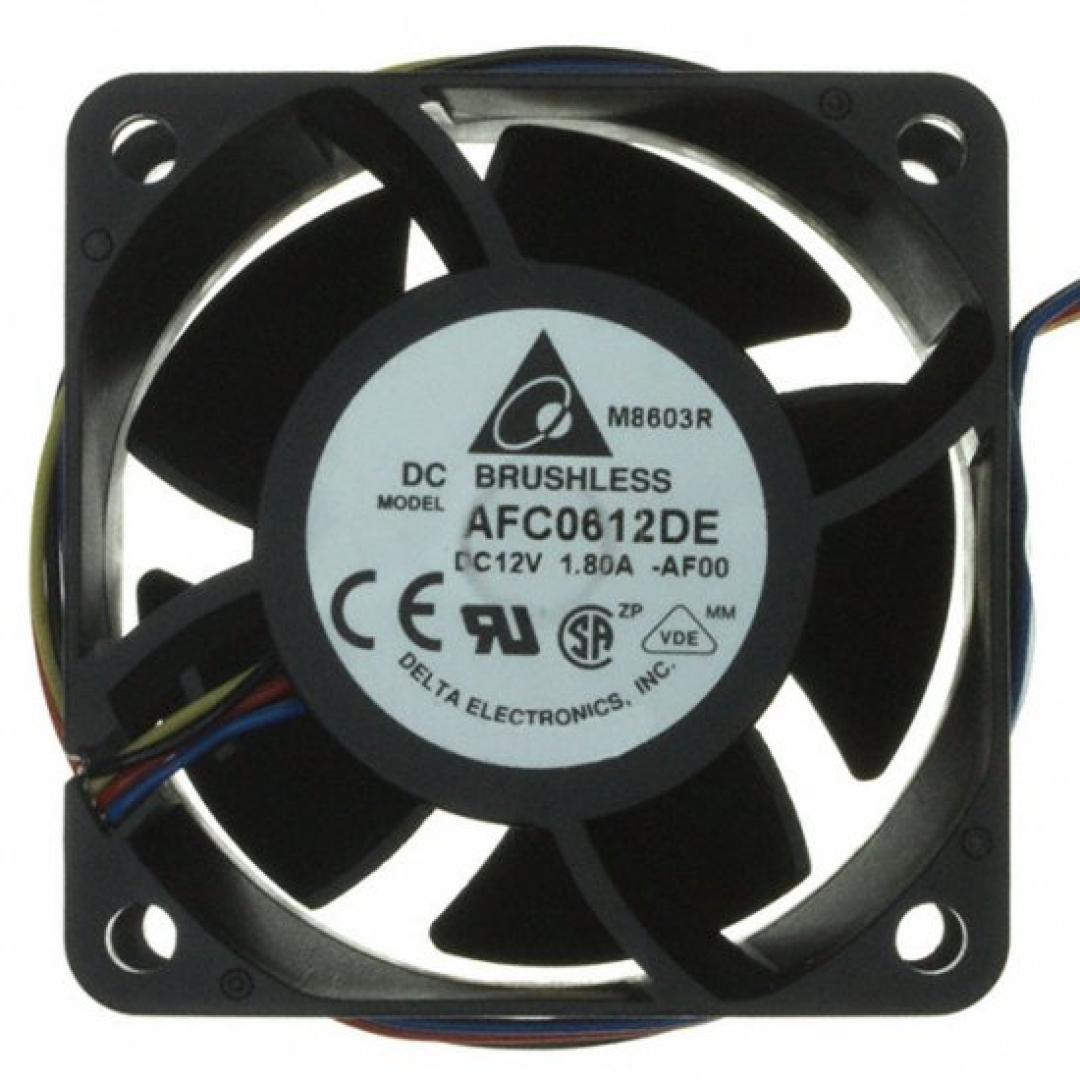

SPECIFICATIONS OF AFC0612DE-AF00 FAN TYPE TUBEAXIAL SIZE / DIMENSION SQUARE - 60MM L X 60MM H X 38MM W VOLTAGE - RATED 12VDC POWER (WATTS) 18.0W FEATURES PWM CONTROL; SPEED SENSOR (TACH) RPM 12000 RPM NOISE 61.5 DB(A) STATIC PRESSURE 1.739 IN H2O (433.2 PA) AIR FLOW 66.7 CFM (1.89M³/MIN) TERMINATION 4 WIRE LEADS BEARING TYPE BALL WEIGHT 0.258 LB (117.03G) CURRENT RATING 1.50A VOLTAGE RANGE 8.0 ~ 13.2VDC OPERATING TEMPERATURE 14 ~ 158°F (-10 ~ 70°C) LIFE EXPECTANCY 70000 HRS @ 40°C TERMINATION STYLE 61.5 DB(A) LEAD FREE STATUS / ROHS STATUS LEAD FREE / ROHS COMPLIANT OTHER NAMES 603-1158 AFC0612DE COOLER DELTA ELETRONICS 60X38MM 12V TAGS DE AFC0612DE: AFC0612DE, 18W, 18 W, 60X38, 60X38 MM, 12000RPM, 12000 RPM, ROLAMENTO, DL380 G5, DL3680G5, 394035-001, 394035001, 394035, DELTA ELETRONICS INC
