Especificações Técnicas

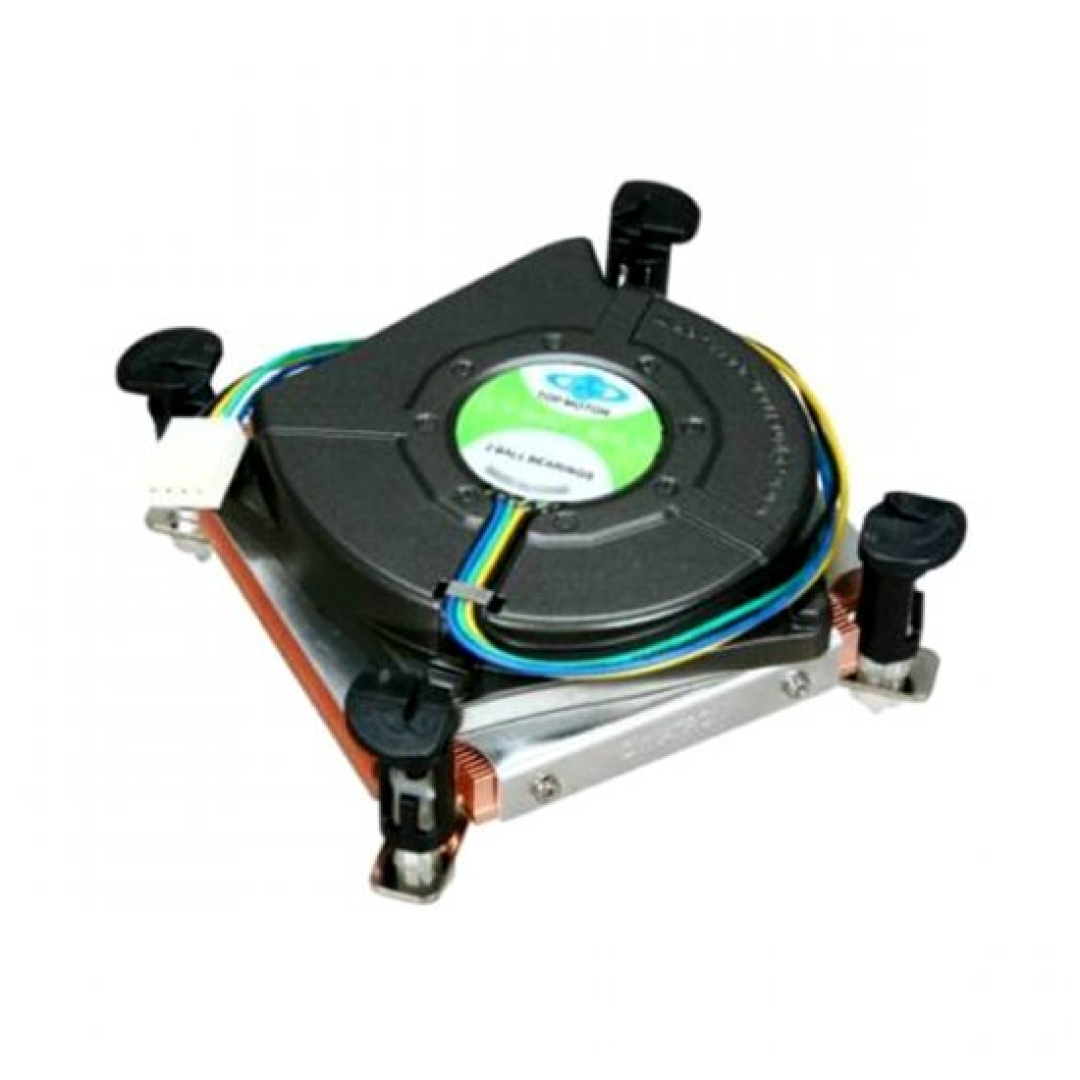

- CPU SOCKET: 1155/1156/1150   - CPU SUPPORT - LGA1155: INTEL CORE I5-2000, I3-2000 PROCESSOR SERIES    - LGA 1156: INTEL CORE I3 PROCESSOR I3-530, I3-540; CORE I5 PROCESSOR I5-650, 660, 670, 680; E CORE I7-2600S; PENTIUM DESKTOP PROCESSOR G6950 - LGA 1150 UP TO TDP 73 WATTS   - SOLUTION: MINI-ITX FORM FACTOR - OVERALL DIMENSION: 82.6 X 81.0 X 27.8 MM - WEIGHT: 380G  - MATERIAL: COPPER HEATSINK - FAN DIMENSION: 75 X 75 X 15 MM - SPEED - AT DUTY CYCLE 20%: 1000 RPM - AT DUTY CYCLE 50%: 2500 RPM - AT DUTY CYCLE 100%: 4000 RPM   - BEARING: 2 BALL BEARING - RATED VOLTAGE: 12 V - POWER - AT DUTY CYCLE 20%: 0.6 W - AT DUTY CYCLE 50%: 1.8 W - AT DUTY CYCLE 100%: 4.8 W   - AIR FLOW - AT DUTY CYCLE 20%: 6.0 CFM - AT DUTY CYCLE 50%: 8.3 CFM - AT DUTY CYCLE 100%: 11.9 CFM   - NOISE LEVEL - AT DUTY CYCLE 20%: 21.0  DBA - AT DUTY CYCLE 50%: 37.8 DBA - AT DUTY CYCLE 100%: 44.0 DBA   - AIR PRESSURE - AT DUTY CYCLE 20%: 0.087 INCH-H2O - AT DUTY CYCLE 50%: 0.453 INCH-H2O - AT DUTY CYCLE 100%: 0.929 INCH-H2O   - LEAD WIRE PIN OUT: - PIN1-BLACK (-) - PIN2-YELLOW ( ) - PIN3-GREEN (TECHOMETER/SIGNAL OUTPUT) - PIN4-BLUE (PWM)  K2 DYNATRON COOLER 1U LGA 1155/1156/1150 MAIORES DETALHES DE K2 NO SITE DO FABRICANTE: HTTP://WWW.DYNATRON-CORP.COM/EN/PRODUCT_DETAIL_1.ASPX?CV=&ID=227&IN=0 TAGS DE K2: COOLER DYNATRON K2, K199, K1, SNK-P0046P, SNK-P0046A4, COOLER 68628 DYNATRON, COOLER DYNATRON 68628, P199, COOLER K2 DYNATRON, HEATSINK DYNATRON, HEATSINK 1U LGA 1156, HEATSINK 1U LGA 1155, COOLER 1U LGA 1156, COOLER 1U LGA 1155, COOLER LGA 1155, COOLER LGA 1156, K129, BXXTS100H
