Especificações Técnicas

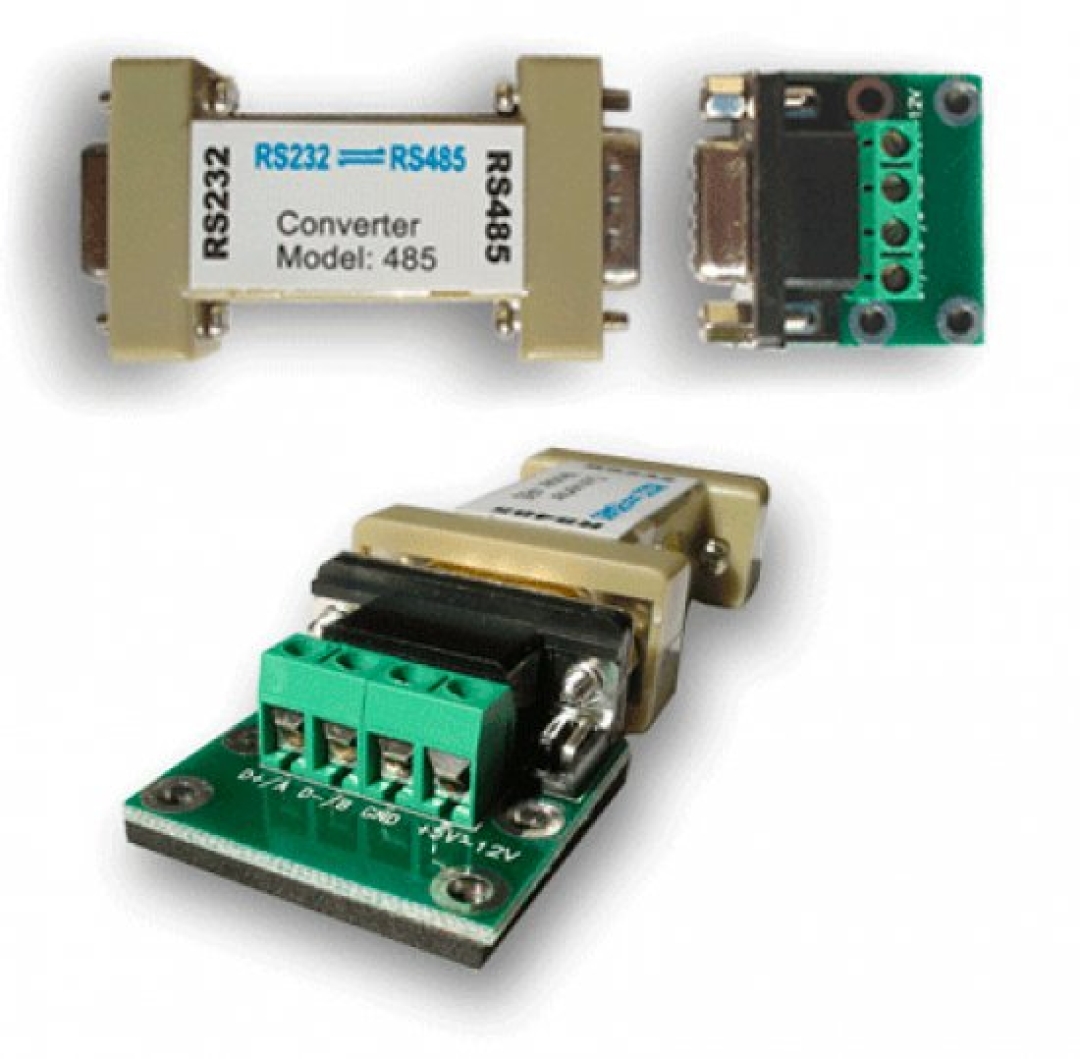

1. COMPATIBILITY: EIA/TIA RS232C STANDARD AND RS485 STANDARD 2. INTERFACE RS232 SIDE: DB9 FEMALE CONNECTOR. 3. INTERFACE RS485 SIDE: DB9 MALE CONNECTOR WITH OPTIONAL (INCLUDED) TERMINAL BOARD. 4. TRANSMISSION RATE: 300 115200BPS 5. TRANSMISSION DISTANCE: RS485 MAX. 1200M, RS232 SIDE MAX. 5M 6. WORKING MODE: ASYNCHRONOUS, HALFDUPLEX, DIFFERENTIAL TRANSMISSION. 7. WORKING ENVIRONMENT: 0 ~ 70C, RELATIVE HUMIDITY 5% 95% 8. MECHANICAL DIMENSIONS: 95MM X 33MM X 17MM STM485S CONVERSOR SERIAL RS232 P/ RS485 TAGS DE STM485S: AT-210B, ADAPTADOR RS232, RS485, RS-485, RS 485, RS-232, RS 232, STM485S, STM485, DB9, CONTROLADORA SERIAL, OEM

Informações Adicionais
