Especificações Técnicas

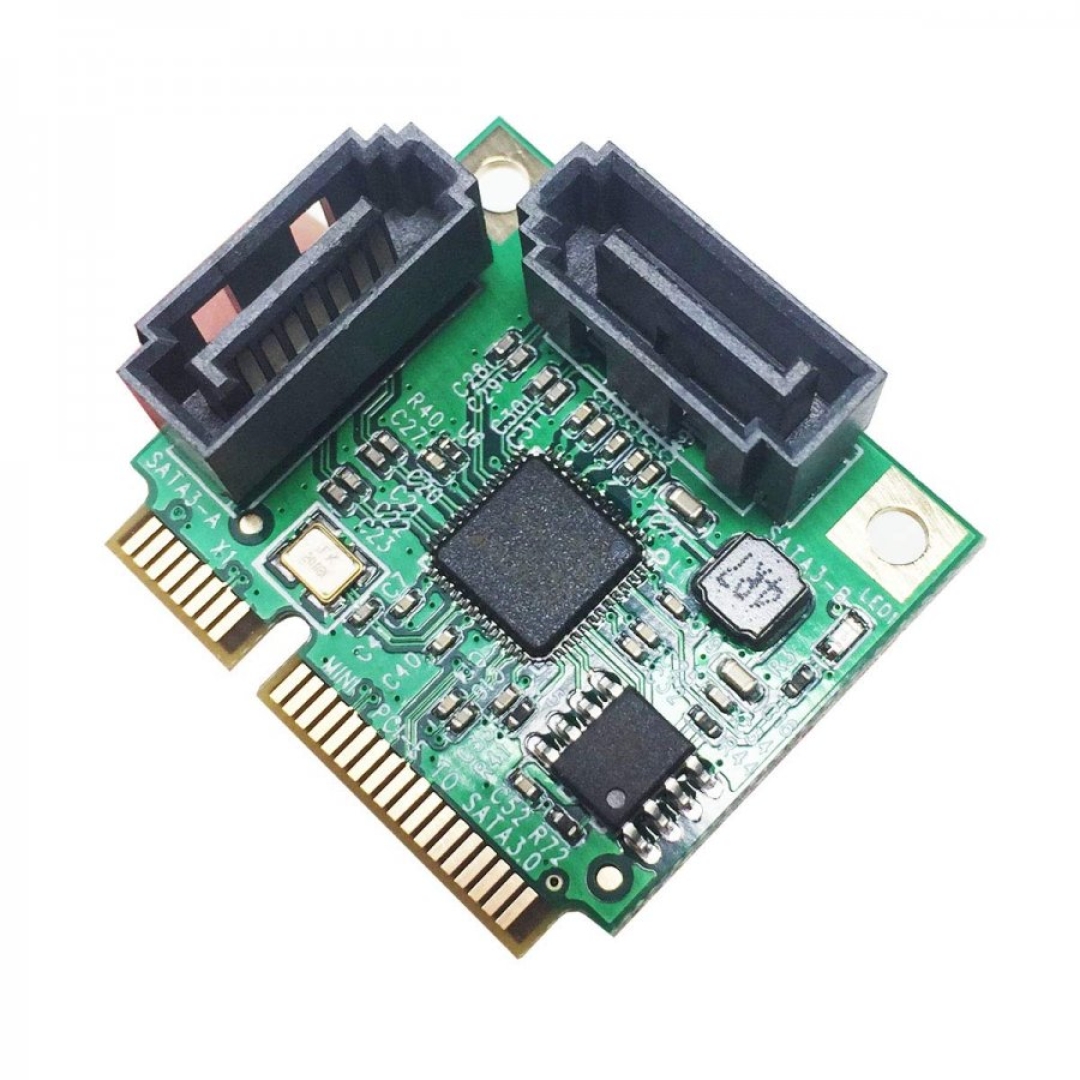

COMPATIBLE WITH PCI-E MINI CARD SPECIFICATION REVISION 1.2, PCI-EXPRESS 2.0 BASE SPECIFICATION COMPLIANT COMPLIANT WITH SERIAL ATA AHCI (ADVANCED HOST CONTROLLER INTERFACE) SPECIFICATION REV 1.0, SUPPORTS SATA 3.0 TRANSFER RATE UP TO 6GBPS ASM1061 CHIPSET, PORT MULTIPLIER FIS-BASED AND COMMAND-BASED SWITCHING SUPPORTED.HOT PLUG AND HOT SWAP SATA PORTS. SUPPORT GEN 1I, GEN 1X, GEN 2I, GEN 2M, GEN 2X, AND GEN 3I. COMPATIBLE WITH HALF-MINI (F1) CARD TYPE FORM FACTOR. TO FIT FULL-MINI (F1) SLOT, IRON SHEET ACCESSORIES IS INCLUDED. COMPATIBLE WITH WINDOWS XP/7/8/10/MAC/NAS/LINUX OS. NO DRIVER INSTALLATION IS REQUIRED. SUPPORT INSTALL WINDOWS OS FROM WIN10 PE. OUR MINIPCI-E TO SATA 3.0 ADAPTER OFFERS YOU A BETTER OPTION AND CONVENIENT WAY TO ADD 2 SATA III DEVICES TO A SMALL FORM FACTOR SYSTEM. HELP YOU TO EXPAND THE CURRENT SYSTEM EASILY. SPECIFICATIONS: PRODUCT PORTS: 2 X SATA 3.0(MAX 6.0 GBPS) MAIN CHIP: ASM1061 SIZE: 1.18 X 1.10 X 0.67- APPLICABLE SLOT: MINI PCI-E O/S SUPPORTED: WINDOWS(R) XP/SERVER2003/VISTA/7/8 ( 32 / 64 BIT ) / MAC / IINUX NOTE:NON SUPPORT RAID MODE. PACKAGE INCLUDING: 1 X MINIPCI-E TO SATA 3.0 ADAPTER 1 X ADAPTER BOARD 1 X PACK OF SCREW SATA-TO-MINI-PCIE CONVERSOR MINI PCI-E PARA SATA 3.0 6GBS TAGS DE SATA-TO-MINI-PCIE: MINIPCIE TO SATA III 2 PORTS ADAPTER CARD, SATA-TO-MINI-PCIE, SATA TO MINI-PCIE, ADAPTADOR SATA PARA PCI, ADAPTADOR PCI PARA SATA, MINI PCI PARA SATA, MINI PCI PARA 2X SATAII, JMB362, OEM
