Especificações Técnicas

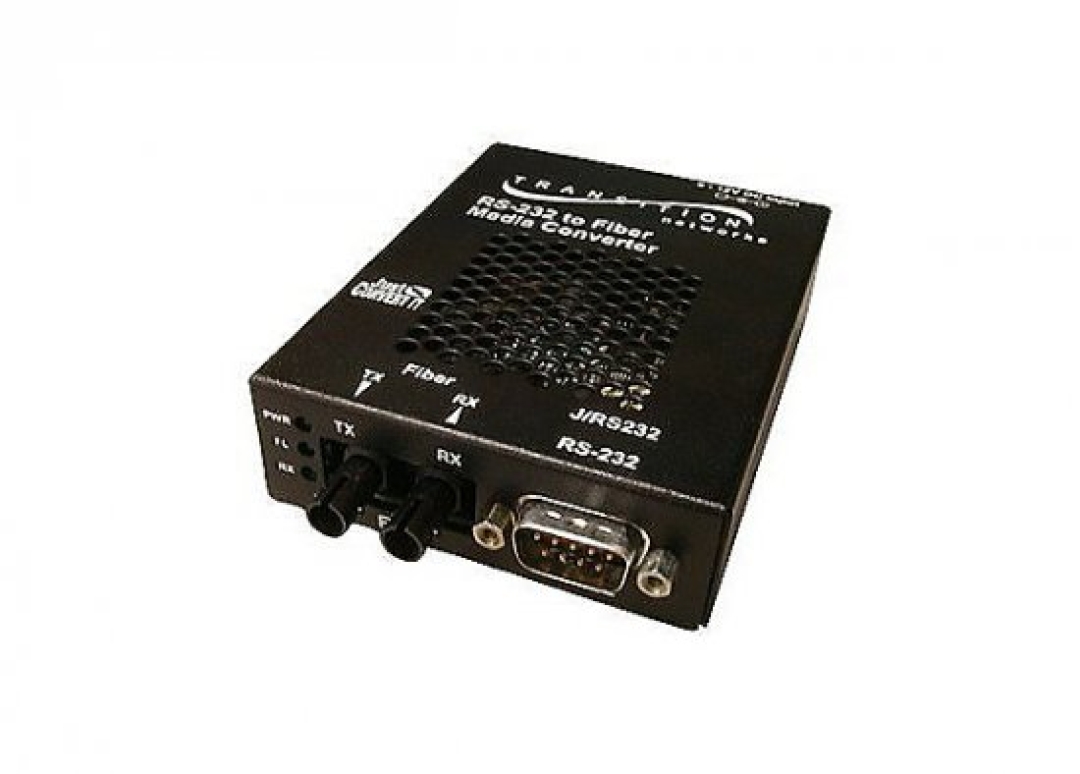

TRANSITION NETWORKS DB9 FEMALE (15 M/49 FT) TO MULTIMODE (SC) 1300NM [2 KM/1.2 MILES] STAND ALONE MEDIA CONVERTER TRANSITION NETWORKS-S -JUST CONVERT-IT-- SERIAL RS232 TO FIBER MEDIA CONVERTER IS AN INEXPENSIVE, NO FRILLS WAY TO EXTEND THE DISTANCE BETWEEN SERIAL CONNECTIONS WITH THE USE OF FIBER OPTIC CABLE. THIS CONVERTER SUPPORTS FULL OR HALF-DUPLEX DATA TRANSMISSION AT SPEEDS UP TO 120KB/S. UNIT AND PORT LEDS ALLOW FOR QUICK STATUS INFORMATION ON THE CONVERTER. FEATURES : OFFERED WITH EITHER A MALE OR FEMALE CONNECTOR FULL/HALF-DUPLEX TRANSMISSION AT SPEEDS UP TO 120KB/S FIBER LED LIGHTS TO SHOW LINK WITH OR WITHOUT DATA TRANSMISSION SPECIFICATIONS : STANDARDS EIA/TIA-574, EIA/TIA RS-232E FIBER OPTIC CONNECTOR SPECS MULTIMODE MIN TX PWR: -19.0 DBM MAX TX PWR: -14.0 DBM RX SENSITIVITY: -30.0 DBM MAX IN PWR: -14.0 DBM LINK BUDGET: 11.00 DB STATUS LEDS PWR: LIT FOR NORMAL OPERATION COPPER: STEADY = LINK; FLASHING = RX DATA FIBER: STEADY = FIBER LINK DIMENSIONS WIDTH: 3.0 (76 MM) DEPTH: 3.9 (100 MM) HEIGHT: 1.0 (25 MM) POWER CONSUMPTION 3.0 WATTS POWER EXTERNAL AC/DC; 12VDC, 0.5A MIN ENVIRONMENT 0 - 50°C, 5% - 95% HUMIDITY (NON-CONDENSING), 0 - 10,000 FEET SHIPPING WEIGHT 1 LB. (0.45 KG) SAFETY COMPLIANCE WALL MOUNT POWER SUPPLY: UL LISTED AND CSA CERTIFIED REGULATORY COMPLIANCE FCC CLASS A, CISPR/EN55022 CLASS A, EN55024, EN60950, CE MARKT J/RS232-CF-01 CONVERSOR DE MÍDIA TRANSITION NETWORKS TAGS DE J/RS232-CF-01: J/RS232-CF-01, J/RS232CF01, TRANSITION NETWORKS J/RS232-CF-01, CONVERSOR FIBRA ÓPTICA, CONVERSOR TRANSITION
