Especificações Técnicas

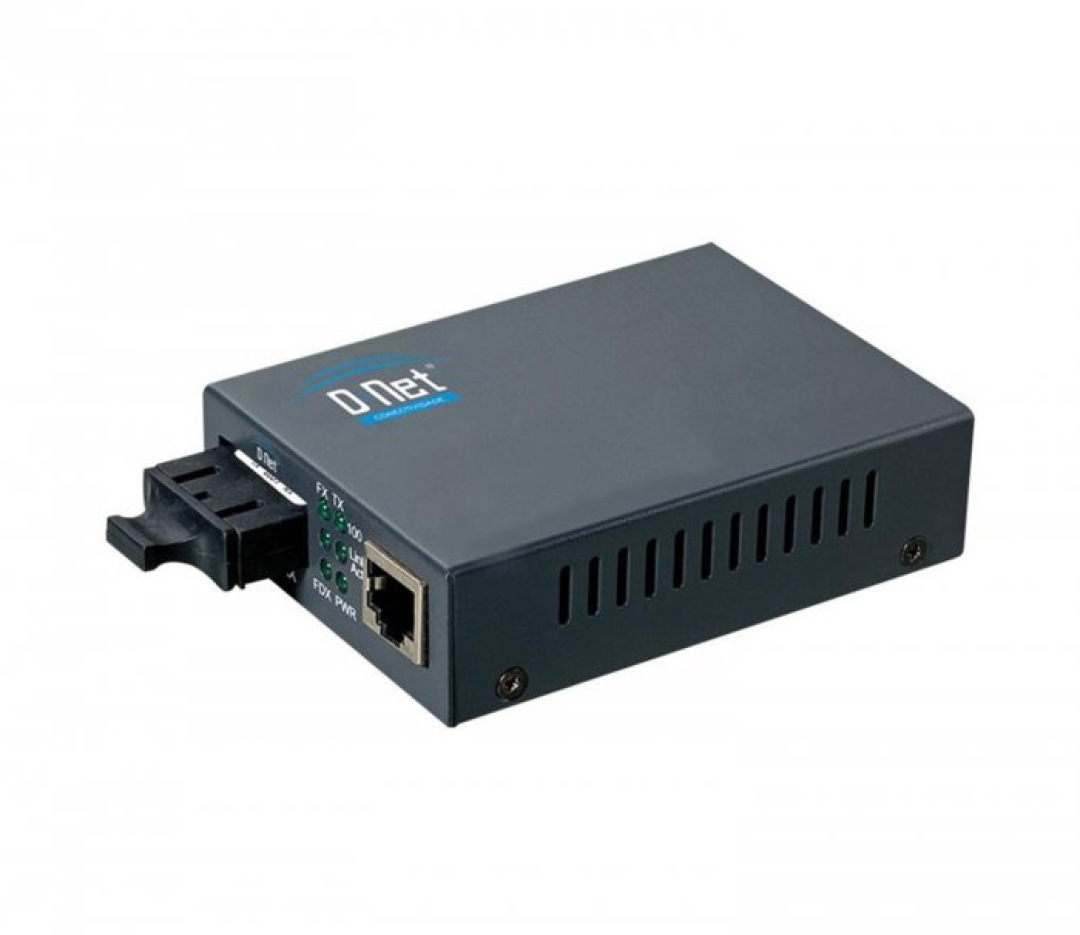

SPECIFICATIONS:   - ATTENDS THE STANDARDS IEEE802.3U 10/100BASE-TX AND 100BASE-FX - HAS A SC DUPLEX CONNECTOR AND A RJ-45 CONNECTOR - CONFIGURATION THRU DIP-SWITCH TO HALF/FULL DUPLEX MODE ON PORT RJ-45 - SPEED AUTO NEGOTIATION 10/100 MBPS AND AUTO CROSS OVER ON PORT RJ-45 - LED INDICATORS FOR POWER MONITORING, LINK AND ACTIVITY LOCATED ON THE FRONTAL PART - MAXIMUM DISTANCE OF 2 KM ON MULTI-MODE FIBERS (DN-8800-M) AND 20 KM ON SINGLE-MODE FIBERS (DN-8800-S20) - EXTERNAL POWER SUPPLY 5 VDC - 100~240 VAC, 50/60 HZ - SUPPORTS LINK FAIL ALARM AND VLAN LONG PACKAGE TRANSMISSIONS - SUPPORTS QUALITY OF SERVICE (QOS), TO GUARANTEE THE TRANSMISSIONS OF VOIP PACKAGES - COMPATIBLE WITH 19- CHASSIS - TRANSMISSION RATE: 1488000 PPS - DIMENSION: 73 MM X 94,5 MM X 27 MM - TEMPERATURE: 0ºC ~ 40ºC - HUMIDITY: 10% ~ 90% RH, WITHOUT CONDENSATION - FIBER TYPE: SINGLE-MODE 9 µM - WAVELENGTH: 1310 NM - MAXIMUM DISTANCE: 20KM   DN-8800-S20 D-NET CONVERSOR DE MIDIA RJ-45 10/100/SC SM TAGS DE DN-8800-S20: DN-8800-S20, DN8800S20, CONVERSOR D-NET, CONVERSOR DE MIDIA D-NET, CONVERSOR MONOMODO, CONVERSROE SINGLE MODO, MONOMODO, CONVERSOR 20KM, CONVERSOR DE KDIA 20KM, CONVERSOR SC, CONVERSOR DE MIDIA SC, CONVERSOR SC SM, CONVERSOR SM, CONVERSOR DE MIDIA SM, CONVERSOR DE MIDIA S-NET SC SM, CONVERSOR DE MIDIA RJ45 SC, CONVERSOR DE MIDIA SM 20KM

Informações Adicionais
