Especificações Técnicas

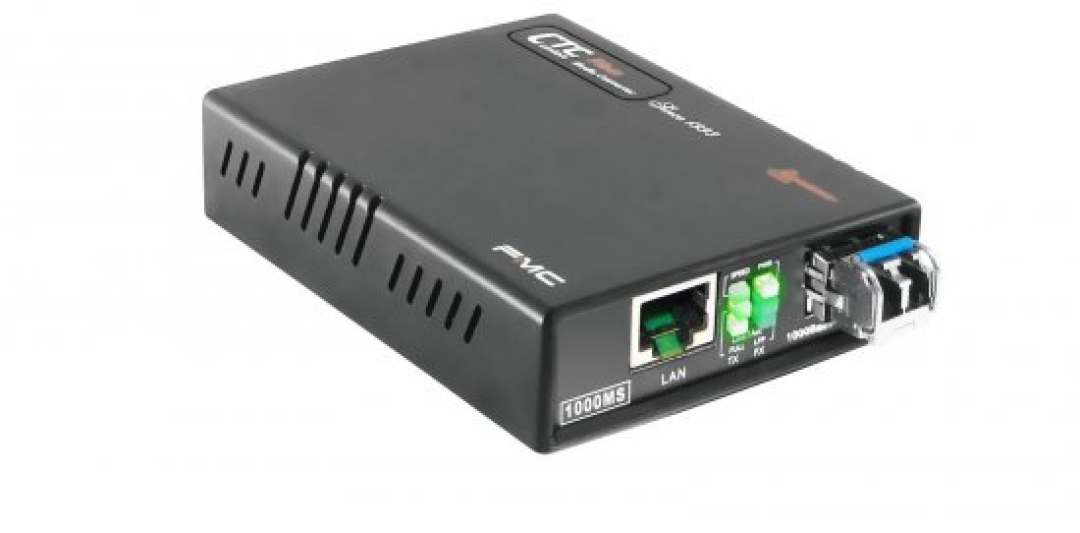

 FMC-1000MS-SM80 CONVERTER IS ONE OF THE NEWEST GIGABIT ETHERNET FIBER MEDIA CONVERTERS INTRODUCED BY DATAINTERFACES.COM. THE FMC-1000MS-SM80 GIGABIT CONVERTER IS A BUNDLE BETWEEN AN FMC-1000MS CONVERTER AND AN SFP 1.25G 1000BASE-ZX, 80KM RANGE, 1550NM OPTICAL TRANSCEIVER. UNIT HAS ONE RJ-45 COPPER PORT WITH AUTO-NEGOTIATION 10/100/1000 AND MDI/MDI-X FEATURES FOR THE GIGABIT ETHERNET COPPER INTERFACE. FMC-1000MS CONVERTER HAS IP BASED WEB MANAGEMENT AND SUPPORTS LINK-FAULT-PASS THROUGH (LFP - AN EXTREMELY USEFUL FEATURE TO EASILY DEBUG FAULTY FIBER LINKS), FAR-END-FAULT  (FEF) AND ACTS ON A STORE-AND-FORWARD SWITCHING PLATFORM. USED WITH THEIR COMPATIBLE FMC-CH08 FIBER OPTIC CHASSIS THEY CAN BE AGGREGATED UP TO 16 UNITS IN A 19" WIDE AND 2U HEIGHT SPACE ONLY. FMC SERIES OFFER THE SAME ABILITY TO BE AGGREGATED IN A THE CENTRAL FMC-CH08 CHASSIS, LIKE THEIR FIB1 MANAGED COUNTERPARTS. IN AN ALWAYS CHANGING AND GROWING NETWORKING ENVIRONMENT, SUCH A VERSATILE FEATURE ALLOWS NETWORK OPERATORS TO SWITCH TO HIGHER DENSITY AND AGGREGATION HUBS WITHOUT THE NEED TO PURCHASE NEW FIBER OPTIC CONVERTERS. COPPER INTERFACE: RJ45 COPPER IEEE 802.3 10BASE-T, 802.3U 100BASE-TX COMPLIANT AND IEEE 802.3AB 1000BASE-T COMPLIANT OPTICAL INTERFACE: 1000BASE-ZX, 1550NM, 80KM, DUAL LC CONNECTOR ETHERNET INTERFACE: SUPPORTS 10/100/1000BASE-T/TX, FULL, HALF DUPLEX N-WAY (AUTO-NEGOTIATION). SUPPORTS FULL, HALF DUPLEX, 10/100/1000 SPEED MANUAL SELECTION. TRANSMISSION PACKET RATE FOR 10/100/1000BASE-T/TX : 14880 PER SECOND /148800/1488000 PER SECOND. COPPER TP CABLE 4 PAIR CAT. 5, 5E OR 6 UTP FEATURES: FEF (FAR-END-FAULT) AND LFP (LINK-FAULT-PASS THROUGH) FIBER OPERATING DISTANCE: 80KM OVER 9/125UM FIBER OPTICAL CONNECTOR: DUAL LC CONNECTOR FRONT LEDS: PWR, LLF, FIBER LINK, TP LINK, DUPLEX, SPEED POWER: EXTERNAL 90-260V AC SWITCHING ADAPTER 9VDC@1A WITH NEMA1-15(2 BLADES ONLY), US TYPE MAIN PLUG TEMPERATURE: 0 — 50°C (OPERATING); 0 — 70°C (STORAGE) HUMIDITY: 20 — 80% NON CONDENSING (OPERATING); 0 — 90% (STORAGE) CONSUMPTION: LESS THAN 4W DIMENSIONS(WXDXH): 73MM X 108MM X 23MM WEIGHT: 160G (WITHOUT AC ADAPTER) COMPLIANCE: FCC PART 15, SUBPART B, CLASS A, ANSI C63.4:2003 CE EN55022:2006, CLASS A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 MTBF: 65,000 HOURS FMC-1000MS CTC UNION CONVERSOR DE MIDIA GERENCIAVEL WEB 80KM MAIORES DETALHES DE FMC-1000MS NO SITE DO FABRICANTE: HTTP://DATAINTERFACES.COM/DATASHEET/FMC-1000MS-DATASHEET.PDF TAGS DE FMC-1000MS: FMC-1000MS-SM80, FMC-1000MS, CONVERSOR MIDIA, MEDIA, MIDEA, FMC1000MS, CONVERSOR DE MIDIA 80KM, CONVERSOR 80KM, FMC-100M, FMC-1000M, FMC 1000MS, FMC-CH08-DC, GIGABIT ETHERNET TO SFP SLOT FIBER OPTIC MEDIA CONVERTER WEB MANAGED, 80KM WEBSMART MANAGED, LC CONECTOR, CONECTOR LC, GT-802, GT802, GT-802S, GT-802S, CTC UNION
