Especificações Técnicas

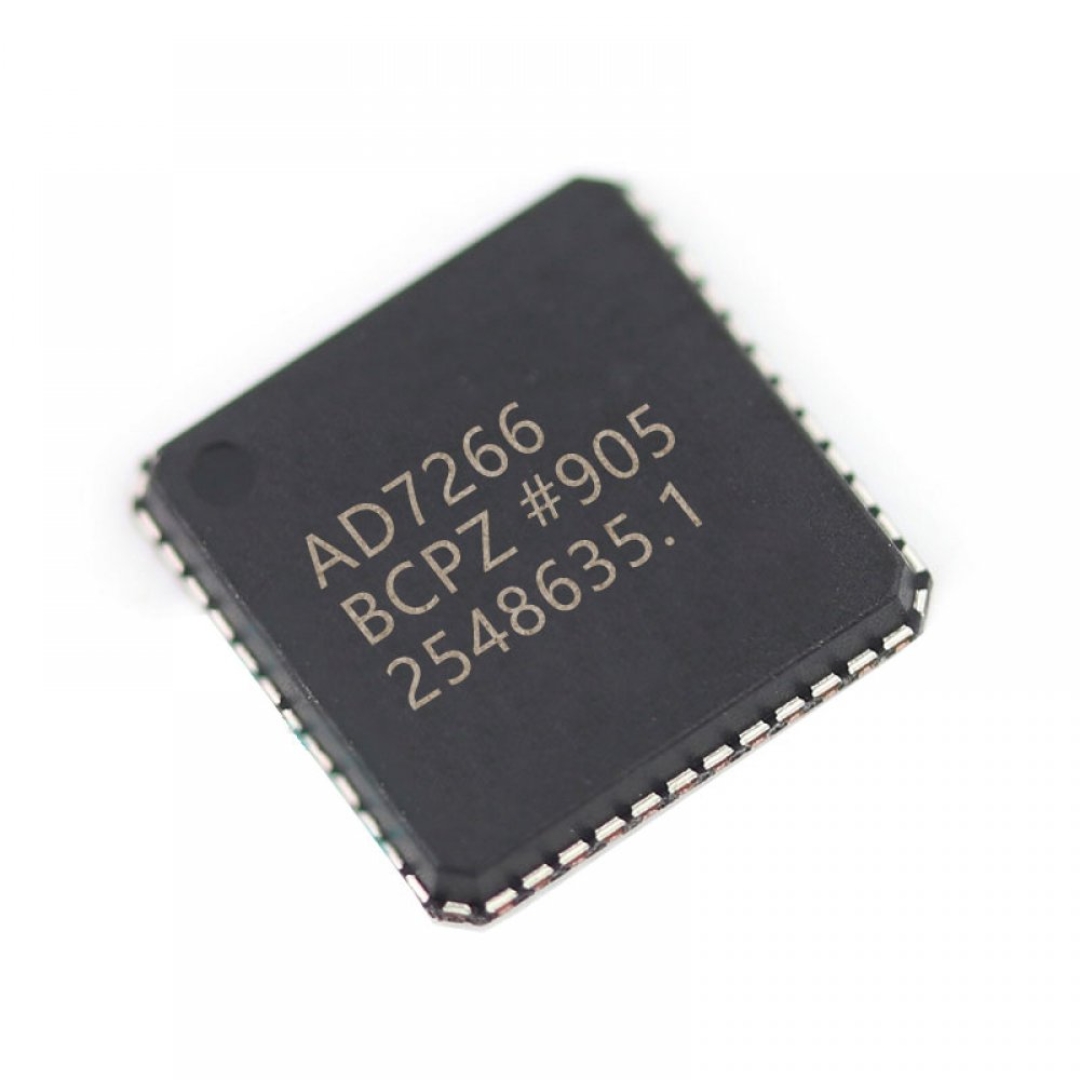

OUTROS PART NUMBERS PARA ESTE COMPONENTE: AD7266BCPZ MANUFACTURER: ANALOG DEVICES INC. PRODUCT CATEGORY: ANALOG TO DIGITAL CONVERTERS - ADC ROHS:   SERIES: AD7266 MOUNTING STYLE: SMD/SMT PACKAGE / CASE: LFCSP-32 RESOLUTION: 12 BIT NUMBER OF CHANNELS: 6 CHANNEL INTERFACE TYPE: MICROWIRE, QSPI, SPI SAMPLING RATE: 2 MS/S INPUT TYPE: DIFFERENTIAL/PSEUDO-DIFFERENTIAL/SINGLE-ENDED ARCHITECTURE: SAR SNR - SIGNAL TO NOISE RATIO: 71DB MINIMUM OPERATING TEMPERATURE: - 40 C MAXIMUM OPERATING TEMPERATURE: 125 C PACKAGING: TRAY BRAND: ANALOG DEVICES DEVELOPMENT KIT: EVAL-AD7266EDZ DNL - DIFFERENTIAL NONLINEARITY: - 0.99 LSB/1.5 LSB GAIN ERROR: /- 2.5 LSB HEIGHT: 0.83 MM INL - INTEGRAL NONLINEARITY: /- 1.5 LSB INPUT VOLTAGE: 2.5 V/5 V LENGTH: 5 MM MOISTURE SENSITIVE: YES NUMBER OF ADC INPUTS: 12 INPUT/6 INPUT NUMBER OF CONVERTERS: 2 CONVERTER OPERATING SUPPLY VOLTAGE: 2.7 V TO 5.25 V PD - POWER DISSIPATION: 33.6 MW PRODUCT TYPE: ADCS - ANALOG TO DIGITAL CONVERTERS REFERENCE TYPE: EXTERNAL, INTERNAL SAMPLE AND HOLD: YES AD7266 CONVERSOR ANALOGICO DIGITAL ADC DUAL 12BIT 3CH MAIORES DETALHES DE AD7266 NO SITE DO FABRICANTE: HTTPS://WWW.ANALOG.COM/MEDIA/EN/TECHNICAL-DOCUMENTATION/DATA-SHEETS/AD7266.PDF TAGS DE AD7266: AD7266BCPZ, AD7266, CONVERSOR ANALOGICO DIGITAL, AD7266BSUZ-REEL7, AD7266BSUZ, AD7266BCPZ-REEL7, ADC 12BITS, ADC 12 BITS, ADC 12-BITS

Informações Adicionais
