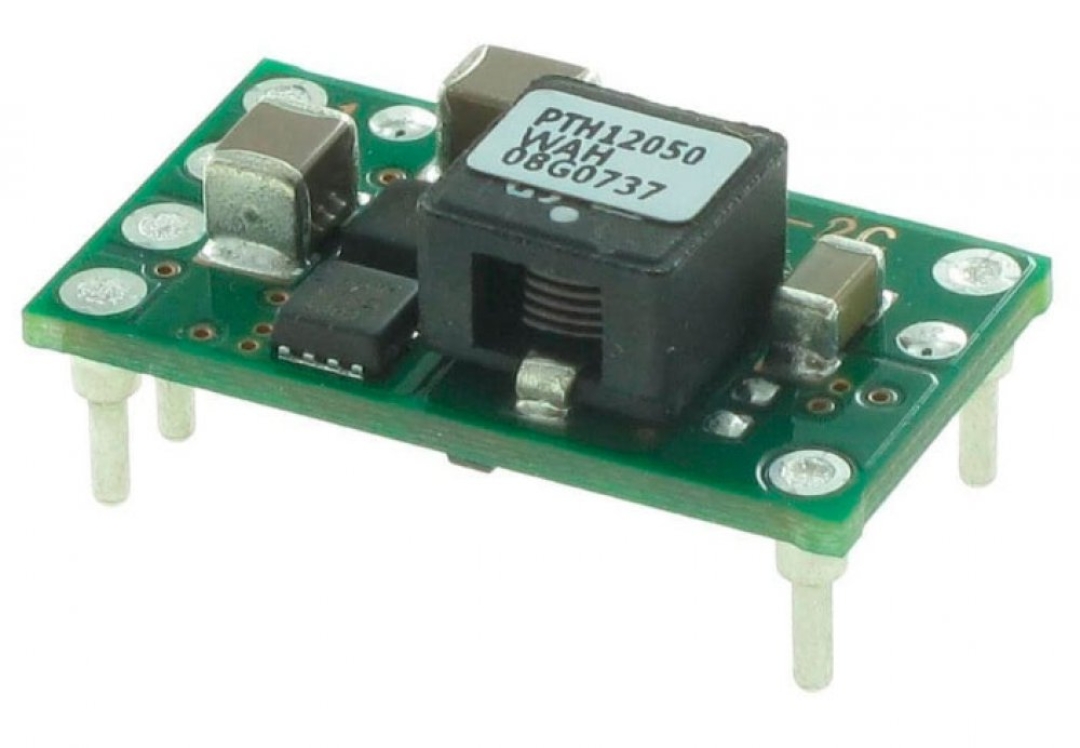

DESCRIPTION FOR THE PTH12050W THE PTH12050 SERIES IS THE SMALLEST NON-ISOLATED POWER MODULES THAT FEATURES AUTO-TRACK- SEQUENCING. AUTO-TRACK SIMPLIFIES THE SEQUENCING OF SUPPLY VOLTAGES IN POWER SYSTEMS BY ENABLING MODULES TO TRACK EACH OTHER, OR ANY OTHER EXTERNAL VOLTAGE, DURING POWER UP AND POWER DOWN.   ALTHOUGH SMALL IN SIZE (0.87 INCHES × 0.5 INCHES), THESE MODULES ARE RATED FOR UP TO 6 A OF OUTPUT CURRENT, AND ARE AN IDEAL CHOICE IN APPLICATIONS WHERE SPACE, PERFORMANCE, AND A POWER-UP SEQUENCING CAPABILITY ARE IMPORTANT ATTRIBUTES.   THE SERIES OPERATES FROM AN INPUT VOLTAGE OF 12-V TO PROVIDE STEP-DOWN CONVERSION TO A WIDE RANGE OF OUTPUT VOLTAGES. THE OUTPUT VOLTAGE OF THE W-SUFFIX DEVICE MAY SET TO ANY VOLTAGE OVER THE ADJUST RANGE, 1.2 V TO 5.5 V. THE L-SUFFIX DEVICE HAS AN ADJUSTMENT RANGE OF 0.8 V TO 1.8 V. THE OUTPUT VOLTAGE IS SET WITHIN THE ADJUSTMENT RANGE USING A SINGLE EXTERNAL RESISTOR.   OTHER OPERATING FEATURES INCLUDE AN ON/OFF INHIBIT, OUTPUT VOLTAGE ADJUST (TRIM), AND OUTPUT OVERCURRENT PROTECTION. FOR HIGH EFFICIENCY, THESE PARTS EMPLOY A SYNCHRONOUS RECTIFIER OUTPUT STAGE. TARGET APPLICATIONS INCLUDE TELECOM, INDUSTRIAL, AND GENERAL PURPOSE CIRCUITS, INCLUDING LOW-POWER DUAL-VOLTAGE SYSTEMS THAT USE THE TMS320- DSP FAMILY, MICROPROCESSOR, ASIC, OR FPGA.   FEATURES FOR THE PTH12050W UP TO 6-A OUTPUT CURRENT 12-V INPUT VOLTAGE WIDE-OUTPUT VOLTAGE ADJUST (1.2 V TO 5.5 V)/(0.8 V TO 1.8 V) EFFICIENCIES UP TO 93% 200 W/IN3 POWER DENSITY ON/OFF INHIBIT UNDERVOLTAGE LOCKOUT OPERATING TEMPERATURE: -40°C TO 85 °C AUTO-TRACK SEQUENCING OUTPUT OVERCURRENT PROTECTION (NONLATCHING, AUTO-RESET) SAFETY AGENCY APPROVALS: UL/IEC/CSA-22.2 60950-1 POINT-OF-LOAD ALLIANCE (POLA)- COMPATIBLE   APPLICATIONS TELECOM, INDUSTRIAL, AND GENERAL-PURPOSE CIRCUITS PTH12050WAH CONVERSOR ADJ DC/DC 1.2V A 5.5V 6A ENTRADA 12VCC MAIORES DETALHES DE PTH12050WAH NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/PRODUCT/PTH12050W/PART-DETAILS/PTH12050WAH TAGS DE PTH12050WAH: PTV1205, PTH12050WAH, CHP-PTV1205-XXX, CHP-PTV1205, NON-ISOLATED DC/DC CONVERTERS 1.2 TO 5.5V 6A 12V INPUT WIDE ADJ MODULE, NON ISOLATED DC/DC CONVERTER, FONTE DC DC AJUSTAVEL, FONTE DC-DC AJUSTAVEL, FONTE DC/DC AJUSTAVEL, MODULO DC-DC, PTH1203, PTH12030WAH, PTH12060WAH, PTH12060WAH, PTH12030WAH/L, CONVERSOR DC-DC 12V PARA 5V, CONVERSOR DC-DC 12V PARA 3.3V, DC-DC CONVERTER, DC/DC CONVERTER, FONTE DC 5V 26A
