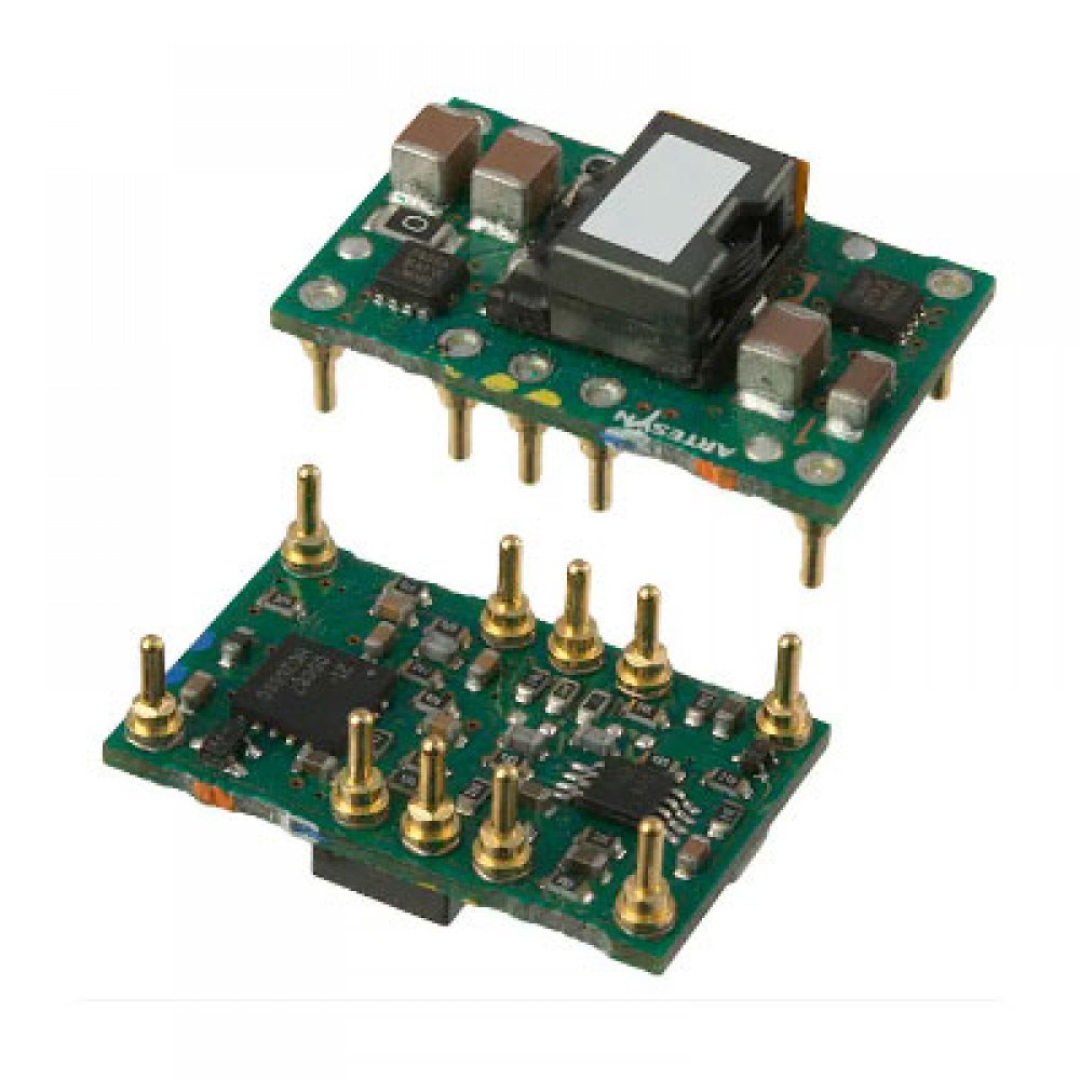

THE PTH12060 SERIES IS A NON-ISOLATED POWER MODULE, AND PART OF A NEW CLASS OF COMPLETE DC/DC CONVERTERS FROM TEXAS INSTRUMENTS. THESE MODULES ARE SMALL IN SIZE, AND ARE AN ALTERNATIVE FOR APPLICATIONS REQUIRING UP TO 10A OF LOAD CURRENT. THE SMALL FOOTPRINT, (1 INCH × 0.62 INCH) AND INDUSTRY LEADING FEATURES MAKES THIS MODULE SUITABLE FOR SPACE CONSCIOUS DIGITAL SYSTEMS THAT INCORPORATE MULTIPLE PROCESSORS.   THIS SERIES OF MODULES OPERATE FROM A 12V INPUT BUS VOLTAGE TO PROVIDE STEP-DOWN POWER CONVERSION TO A WIDE RANGE OF OUTPUT VOLTAGES. THE OUTPUT VOLTAGE OF THE W-SUFFIX DEVICE MAY BE SET TO ANY VOLTAGE OVER THE ADJUST RANGE, 1.2 V TO 5.5 V. THE L-SUFFIX DEVICE HAS AN ADJUSTMENT RANGE OF 0.8 V TO 1.8 V. THE OUTPUT VOLTAGE IS SET WITHIN THE ADJUST RANGE USING A SINGLE EXTERNAL RESISTOR.   THIS PRODUCT INCLUDES AUTO-TRACK- SEQUENCING. AUTO-TRACK SIMPLIFIES THE TASK OF SUPPLY VOLTAGE SEQUENCING IN A POWER SYSTEM, BY ENABLING MODULES TO TRACK EACH OTHER, OR ANY OTHER EXTERNAL VOLTAGE, DURING POWER UP AND POWER DOWN. OTHER FEATURES INCLUDE AN ON/OFF INHIBIT AND MARGIN UP/DOWN CONTROLS. AN OUTPUT VOLTAGE SENSE ENSURES TIGHT LOAD REGULATION. NON-LATCHING OVERCURRENT TRIP PROTECTS AGAINST LOAD FAULTS   APPLICATIONS - COMPLEX DIGITAL SYSTEMS   FEATURES - UP TO 10-A OUTPUT CURRENT - 12-V INPUT VOLTAGE - WIDE-OUTPUT VOLTAGE ADJUST (1.2 V TO 5.5 V/(0.8 V TO 1.8 V) - EFFICIENCIES UP TO 95% - 225 W/IN3 POWER DENSITY - OUTPUT VOLTAGE SENSE - MARGIN UP/DOWN CONTROLS - UNDERVOLTAGE LOCKOUT - AUTO-TRACK- SEQUENCING - PRE-BIAS START-UP CAPABILITY USING ON/OFF INHIBIT - OUTPUT OVERCURRENT PROTECTION (NON-LATCHING, AUTO-RESET) - OPERATING TEMPERATURE: -40°C TO 85°C - SAFETY AGENCY APPROVALS: UL/IEC/CSA C22.2 60950-1 - POINT-OF-LOAD ALLIANCE (POLA-) COMPATIBLE PTH12060WAH CONVERSOR ADJ DC/DC 1.2V A 5.5V 10A ENTRADA 12VCC MAIORES DETALHES DE PTH12060WAH NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/PTH12060L.PDF?TS=1670242784686&REF_URL=HTTPS%2 TAGS DE PTH12060WAH: PTH12060WAH, PTH12060WA, PTH12060W, PTH12060, PTH04000WAH, PTH04000WA, PTH04000W, PTH12030WAH, PTH12050WAH, EVW010A0B41Z, FONTE DC DC AJUSTAVEL, FONTE DC-DC AJUSTAVEL, FONTE DC/DC AJUSTAVEL, MODULO DC-DC, PTH1203, PTH12030WAH, PTH12060WAH, PTH12060WAH, PTH12030WAH/L, CONVERSOR DC-DC 12V PARA 5V, CONVERSOR DC-DC 12V PARA 3.3V, DC-DC CONVERTER, DC/DC CONVERTER, FONTE DC 5V 26A, PTH12060WAH, PTH12060WAH, PTH12030WAH/L, CONVERSOR DC-DC 12V PARA 5V, CONVERSOR DC-DC 12V PARA 3.3V, DC-DC CONVERTER, DC/DC, POWER SUPPLIES - BOARD MOUNT DC DC CONVERTERS, ISOLATED DC/DC CONVERTERS - THROUGH HOLE, CONVERSOR DC-DC 1/8 BRICK ISOLADO SÉRIE EVW ENTRADA DE 48V E SAÍDA DE 12V/5V 120W 100 W, EIGHTH-BRICK, EVW010A0B SERIES (EIGHTH-BRICK) DC-DC POWER MODULES, ABB EMBEDDED POWER, GE CRITICAL POWER
