Especificações Técnicas

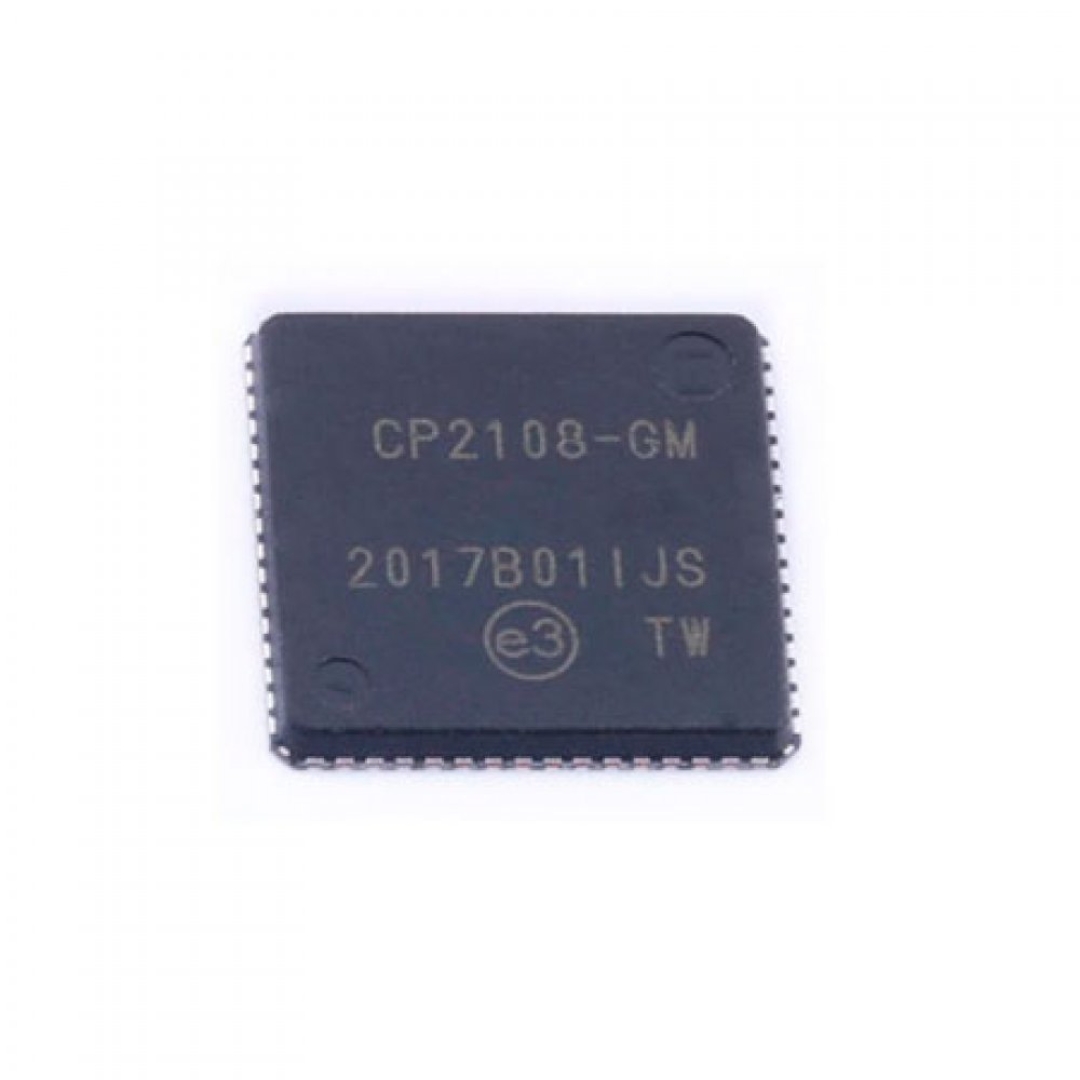

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: CP2108, CP2108-B02-GM, CP2108-B02-GMR THE CP2108-B02-GM IS A HIGHLY INTEGRATED USB TO QUAD UART BRIDGE CONTROLLER PROVIDING A SIMPLE SOLUTION FOR UPDATING RS-232/ RS-485 DESIGNS TO USB USING A MINIMUM OF COMPONENTS AND PCB SPACE.   THE CP2108 INCLUDES A USB 2.0 FULL-SPEED CONTROLLER, USB TRANSCEIVER, OSCILLATOR, EEPROM, AND FOUR ASYNCHRONOUS SERIAL DATA BUSES (UART) WITH FULL MODEM CONTROL SIGNALS IN A COMPACT 9 MM X 9 MM 64-PIN QFN PACKAGE. THE ON-CHIP EEPROM MAY BE USED TO CUSTOMIZE THE USB VENDOR ID (VID), PRODUCT ID (PID), PRODUCT DESCRIPTION STRING, POWER DESCRIPTOR, DEVICE RELEASE NUMBER, INTERFACE STRINGS, DEVICE SERIAL NUMBER, MODEM AND GPIO CONFIGURATION AS DESIRED FOR APPLICATIONS. ALL CUSTOMIZATION AND CONFIGURATION OPTIONS CAN BE SELECTED USING A SIMPLE GUI-BASED CONFIGURATOR. BY ELIMINATING THE NEED FOR COMPLEX FIRMWARE AND DRIVER DEVELOPMENT, THE CP2108 DEVICES ENABLE QUICK USB CONNECTIVITY WITH MINIMAL DEVELOPMENT EFFORT.   - NO FIRMWARE DEVELOPMENT REQUIRED - SIMPLE GUI-BASED CONFIGURATOR - INTEGRATED USB TRANSCEIVER; NO EXTERNAL RESISTORS REQUIRED - INTEGRATED CLOCK; NO EXTERNAL CRYSTAL REQUIRED - USB 2.0 FULL-SPEED COMPATIBLE - FOUR INDEPENDENT UART INTERFACES - 16 GPIOS WITH CONFIGURABLE OPTIONS - ROYALTY FREE VIRTUAL COM PORT (VCP) DRIVERS     SINGLE-CHIP USB-TO-QUAD UART DATA TRANSFER - FOUR INDEPENDENT UART INTERFACES - INTEGRATED USB TRANSCEIVER; NO EXTERNAL RESISTOR REQUIRED - INTEGRATED CLOCK; NO EXTERNAL CRYSTAL REQUIRED - INTEGRATED PROGRAMMABLE EEPROM FOR STORING CUSTOMIZABLE PRODUCT INFORMATION - ON-CHIP POWER-ON RESET CIRCUIT - ON-CHIP VOLTAGE REGULATOR: 3.3 V OUTPUT   USB PERIPHERAL FUNCTION CONTROLLER - USB SPECIFICATION 2.0 COMPLIANT; FULL-SPEED (12 MBPS) - USB SUSPEND STATES SUPPORTED VIA SUSPEND PINS VIRTUAL COM PORT DRIVERS - WORKS WITH EXISTING COM PORT PC APPLICATIONS - ROYALTY-FREE DISTRIBUTION LICENSE - SUPPORTED ON WINDOWS, MAC, AND LINUX SUPPLY VOLTAGE - SELF-POWERED: 3.0 TO 3.6 V - USB BUS POWERED: 4.0 TO 5.5 V - VIO VOLTAGE: 3.0 TO VDD - VIOHD VOLTAGE: 2.7 TO 6 V     CP2108-GM IO CONTROLLER INTERFACE IC USB TO QUAD UART BRIDGE MAIORES DETALHES DE CP2108-GM NO SITE DO FABRICANTE: HTTPS://WWW.SILABS.COM/DOCUMENTS/PUBLIC/DATA-SHEETS/CP2108-DATASHEET.PDF TAGS DE CP2108-GM: CP2108-B02-GM, CP2108-B02-GMR, CP2108, USB TO QUAD UART BRIDGE CONTROLLER, USB 2.0 CONTROLLER, CI CONTROLADOR DE USB, CI DRIVER DE USB

Informações Adicionais
