Especificações Técnicas

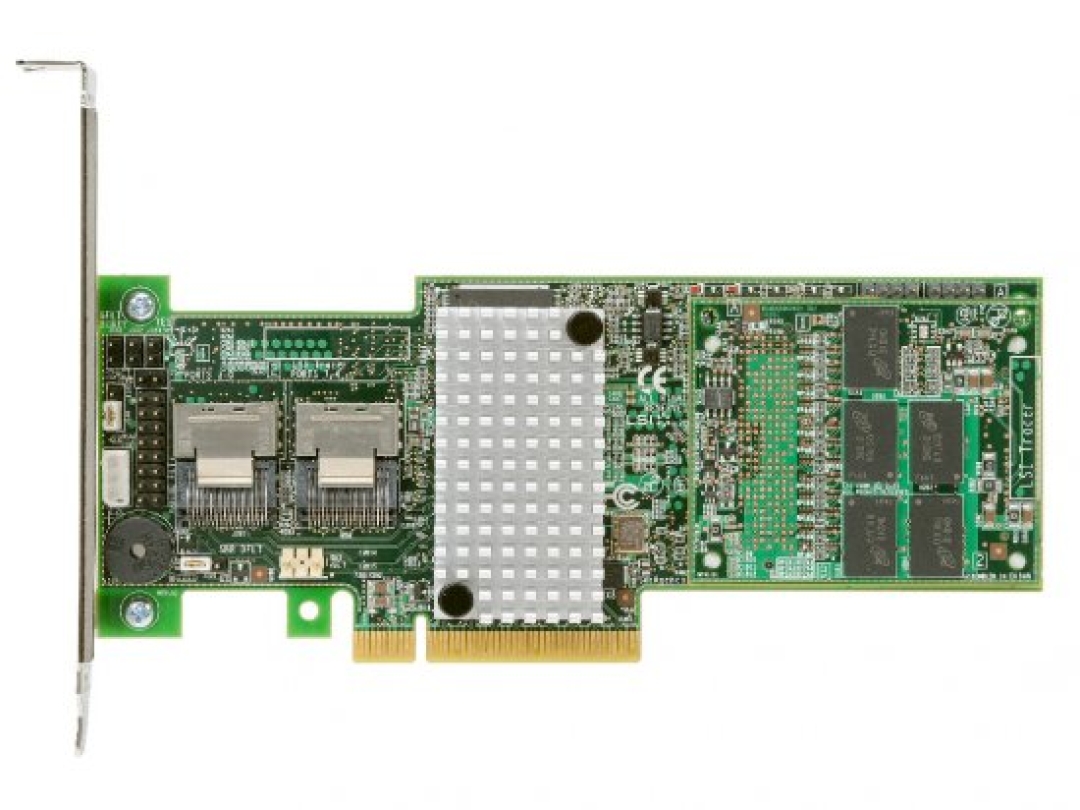

  PRODUCT NAME RAID SAS SATA 8 PORT PCIE X8-0/1/5 6GB 1GB PRODUCT TYPE SAS CONTROLLER PORTS 2 X SFF-8087 6GB/S SAS - SERIAL ATTACHED SCSI (SAS) INTERNAL RAID SUPPORTED YES HEIGHT 2.5 WIDTH 6.6 INTERFACES SERIAL ATA/600 SERIAL ATTACHED SCSI (SAS) FORM FACTOR HALF-LENGTH LOW-PROFILE PLUG-IN CARD PRODUCT MODEL RS25DB080 DATA TRANSFER RATE UP TO 600 MBPS PER PORT RAID LEVELS 0 1 5 6 10 50 60 STANDARD MEMORY 1 GB DDR3 SDRAM HOST INTERFACE PCI EXPRESS X8 DRIVE SUPPORTED UP TO 128 X PHYSICAL NUMBER OF PORTS 2       PRODUCT ORDER CODE    RS25DB080 ESSENTIALS BOARD FORM FACTOR LOW-PROFILE MD2 DATA TRANSFER RATE 6 GB/S SUPPORTED DEVICES SAS / SATA DEVICES COMPATIBLE BATTERY BACKUP OPTIONS AXXRSBBU9 RAID LEVEL SUPPORTED 0, 1, 5, 6, 10, 50, 60 # OF PORTS INTERNAL 8 # OF PORTS EXTERNAL 0 # OF DEVICES SUPPORTED 128 EMBEDDED MEMORY 1GB PCIE HOST INTERFACE PCI EXPRESS 2.0 X8 I/O PROCESSOR MODEL LSI 2208 COMPATIBLE PRODUCTS LISTS COMPATIBLE SERVER/WORKSTATION BOARD INTEL® SERVER BOARD S5500HCV INTEL® SERVER BOARD S3420GPLC INTEL® SERVER BOARD S5520UR INTEL® SERVER BOARD S5520HC INTEL® WORKSTATION BOARD S5520SC INTEL® SERVER BOARD S5500BC INTEL® SERVER BOARD S5500WB INTEL® SERVER BOARD S5500HV INTEL® SERVER BOARD S3420GPV INTEL® SERVER BOARD S3420GPRX INTEL® SERVER BOARD S5520HCT INTEL® SERVER BOARD S2600GZ INTEL® SERVER BOARD S2600GL INTEL® SERVER BOARD S2600CP2 INTEL® SERVER BOARD S2600CP4 INTEL® SERVER BOARD S2600CO4 INTEL® WORKSTATION BOARD W2600CR2 INTEL® SERVER BOARD S2400GP2 INTEL® SERVER BOARD S2600CP2IOC INTEL® SERVER BOARD S2600CP4IOC INTEL® SERVER BOARD S2600COEIOC INTEL® SERVER BOARD S5500WB12V INTEL® SERVER BOARD S3420GPLX INTEL® SERVER BOARD S1200BTL INTEL® SERVER BOARD S1200BTS INTEL® SERVER BOARD S2600IP4 INTEL® SERVER BOARD S5520URT INTEL® SERVER BOARD S2400SC2 INTEL® SERVER BOARD S2400GP4 INTEL® SERVER BOARD S2600COE INTEL® SERVER BOARD S2600CP2J COMPATIBLE SYSTEM INTEL® SERVER SYSTEM SR2625URLXR INTEL® SERVER SYSTEM SR2625URBRPR INTEL® SERVER SYSTEM SR1600URR INTEL® SERVER SYSTEM SR1600URHSR INTEL® SERVER SYSTEM SR1625URSASR INTEL® SERVER SYSTEM SR1695WBDC INTEL® SERVER SYSTEM SR1690WBR INTEL® SERVER SYSTEM R1304GZ4GC INTEL® SERVER SYSTEM R1208GL4DS INTEL® SERVER SYSTEM R2208GZ4GC INTEL® SERVER SYSTEM R2308GZ4GC INTEL® SERVER SYSTEM R2208GL4GS INTEL® SERVER SYSTEM R2308GL4GS INTEL® WORKSTATION SYSTEM P4304CR2LFKN INTEL® WORKSTATION SYSTEM P4304CR2LFJN INTEL® WORKSTATION SYSTEM P4304CR2LFGN INTEL® SERVER SYSTEM R2216IP4LHPC INTEL® SERVER SYSTEM P4308CP4MHEN INTEL® SERVER SYSTEM P4308CP4MHGC INTEL® SERVER SYSTEM P4216IP4LHKC INTEL® SERVER SYSTEM P4208IP4LHGC INTEL® SERVER SYSTEM P4308IP4LHKC INTEL® SERVER SYSTEM P4308IP4LHJC INTEL® SERVER SYSTEM P4308IP4LHGC INTEL® SERVER SYSTEM R2208BB4GC INTEL® SERVER SYSTEM R2216BB4GC INTEL® SERVER SYSTEM R2308BB4GC INTEL® SERVER SYSTEM R2216GZ4GCLX INTEL® SERVER SYSTEM R2312BB4GCSAS INTEL® SERVER SYSTEM P4308IP4LHJCL INTEL® WORKSTATION SYSTEM P4304CR2LFJNL INTEL® WORKSTATION SYSTEM SC5650SCWS INTEL® SERVER SYSTEM SR1630BCR INTEL® SERVER SYSTEM SC5650BCDPR INTEL® SERVER SYSTEM SC5650HCBRPR INTEL® SERVER SYSTEM SR2625URLXT INTEL® SERVER SYSTEM SR1625URR INTEL® SERVER SYSTEM SR2600URBRPR INTEL® SERVER SYSTEM SR2600URLXR INTEL® SERVER SYSTEM SR2600URSATAR INTEL® SERVER SYSTEM SR1695WBAC INTEL® SERVER SYSTEM R1208GZ4GC INTEL® SERVER SYSTEM R1208GZ4GCSAS INTEL® SERVER SYSTEM R2216GZ4GC INTEL® SERVER SYSTEM R2312GL4GS INTEL® SERVER SYSTEM R2208GZ4GC10G INTEL® SERVER SYSTEM R2224GZ4GCSAS INTEL® SERVER SYSTEM R2312GZ4GCSAS INTEL® SERVER SYSTEM R2224IP4LHPC INTEL® SERVER SYSTEM R2312IP4LHPC INTEL® SERVER SYSTEM P4208CP4MHGC INTEL® SERVER SYSTEM P4224IP4LHKC INTEL® SERVER SYSTEM P4216IP4LHJC INTEL® SERVER SYSTEM R1304BB4DC INTEL® SERVER SYSTEM R1208BB4DC INTEL® SERVER SYSTEM R2208GZ4IS INTEL® SERVER SYSTEM R2208IP4LHPC INTEL® SERVER SYSTEM R2308IP4LHPC INTEL® SERVER SYSTEM R2224BB4GCSAS INTEL® SERVER SYSTEM R2216GZ4GCIOC INTEL® SERVER SYSTEM R2308GZ4GCIOC INTEL® SERVER SYSTEM R1208GZ4GCIOC COMPATIBLE SPARES, ACCESSORIES, AND SERVICES INTEL® RAID EXTENDED WARRANTY   COMPATIBLE RAID INTEL® RAID SSD CACHE WITH FAST PATH *I/O INTEL® RAID SMART BATTERY AXXRSBBU9 INTEL® RAID/SAS CABLE KIT CBL740MS7P       RS25DB080 INTEL CONTROLADORA SAS/SATA 8 CANAIS 6GB TAGS DE RS25DB080: RS25DB080, AXXRSBBU9, PCI-E X8, CONTROLADORA SAS INTEL, RS25DB080, SFF-8087, SFF8087, SFF 8087, SAS RAID, SATA RAID, 2 CANAIS SAS, 2 CANAIS SATA, SAS 6GBS, CONTROLADORA RAID, CONTROLADORA SATA, CONTROLADORA DE BACKUP, PLACA CONTROLADORA, =RS25DB080
