Especificações Técnicas

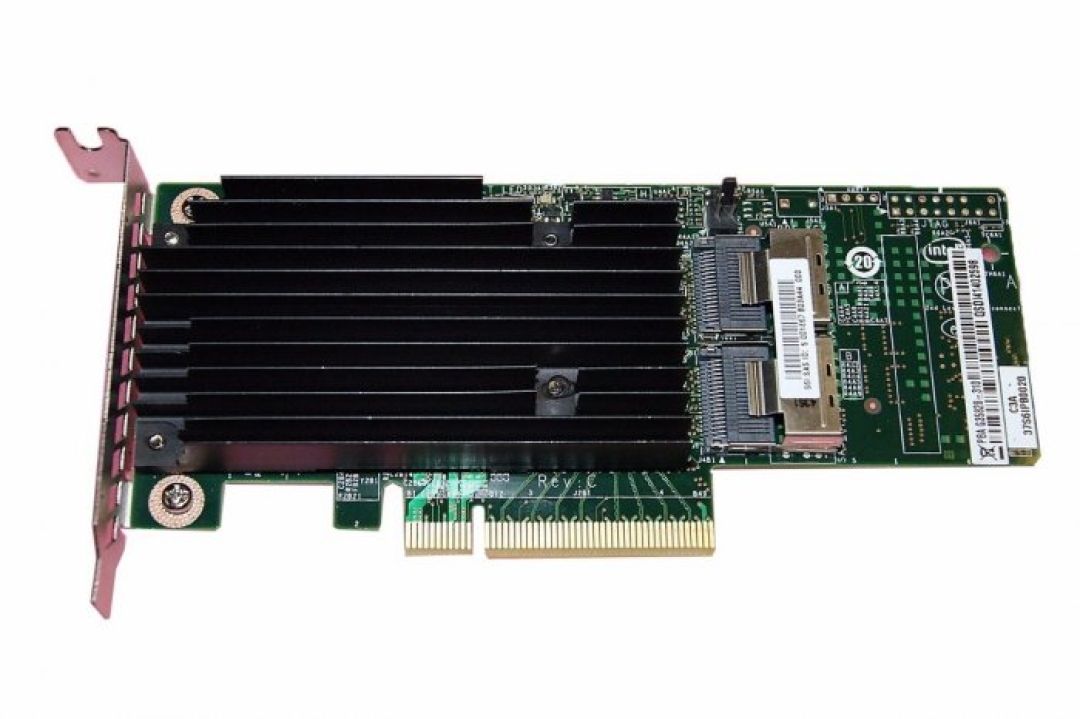

THE INTEL® INTEGRATED RAID MODULE RMS25KB080 AND RMS25KB040 IN A SMALL MD2-COMPLIANT PCIE RAID CARD THAT ALLOWS FOR AN EXCELLENT ENTRY-LEVEL RAID OR JBOD-MODE SOLUTION. THIS HIGH-THROUGHPUT RAID CONTROLLER PROVIDES SAS CAPABILITY AND OFFERS COMPATIBILITY WITH 6 GB/S AND 3 GB/S SAS AND SATA HARD DRIVES, AND SAS EXPANDER DEVICES. WHILE MANY OTHER SAS CONTROLLERS ARE DRIVEN BY LARGE RAID SOFTWARE STACKS BETWEEN THE HOST CPU AND CONTROLLER, THE INTEL INTEGRATED RAID MODULES RMS25KB080 AND RMS25KB040 USE THE EMBEDDED CPU IN THE LSI 2308 ASIC TO PERFORM RAID 0, 1, AND 1E/10 OPERATIONS. WITH THE REDUCTION IN RAID OVERHEAD, THE INTEL® INTEGRATED RAID MODULE RMS25KB FAMILY OFFERS SUPERIOR INTERNAL READ/WRITE PERFORMANCE. PRODUCT NAME 8 PORT RAID MOD PCIE LSI2308-SAS LSI IR 0-1E PRODUCT TYPE SAS CONTROLLER PORTS 6GB/S SAS - SERIAL ATTACHED SCSI (SAS) RAID SUPPORTED YES INTERFACES SERIAL ATA/600 SERIAL ATTACHED SCSI (SAS) BRACKET FULL AND LOW-PROFILE DATA TRANSFER RATE 600 MBPS RAID LEVELS 0, 1, 1E STANDARD MEMORY 2MB HOST INTERFACE PCI EXPRESS 2.0 X8 COMPATIBILITY INTEL XEON E5 SERIES SERVER BOARDS RMS25KB080 CONTROLADORA INTEL RAID SAS/SATA 6GB 8 PORTAS MAIORES DETALHES DE RMS25KB080 NO SITE DO FABRICANTE: HTTP://WWW.INTEL.COM/CONTENT/WWW/US/EN/SERVERS/RAID/INTEGRATED-RAID-MODULE-RMS25 TAGS DE RMS25KB080: LSI2308, RMS25KB040, CONTROLADORA SAS, G35828-310, G35828-311, G35828-31, SAS CONTROLER, 4X SAS, CONTROLADORA RAID SAS, SAS RAID, PCI-E X8, SFF-8087, SFF8087, SFF 8087, MINI SAS, MINISAS, MINI-SAS, CONTROLADORA 4 CANAIS, 4CANAIS, 8 CANAIS, 8CANAIS, RMS25KB080, CONTROLADORA SATA, CONTROLADORA DE BACKUP, PLACA CONTROLADORA

Informações Adicionais
