Especificações Técnicas

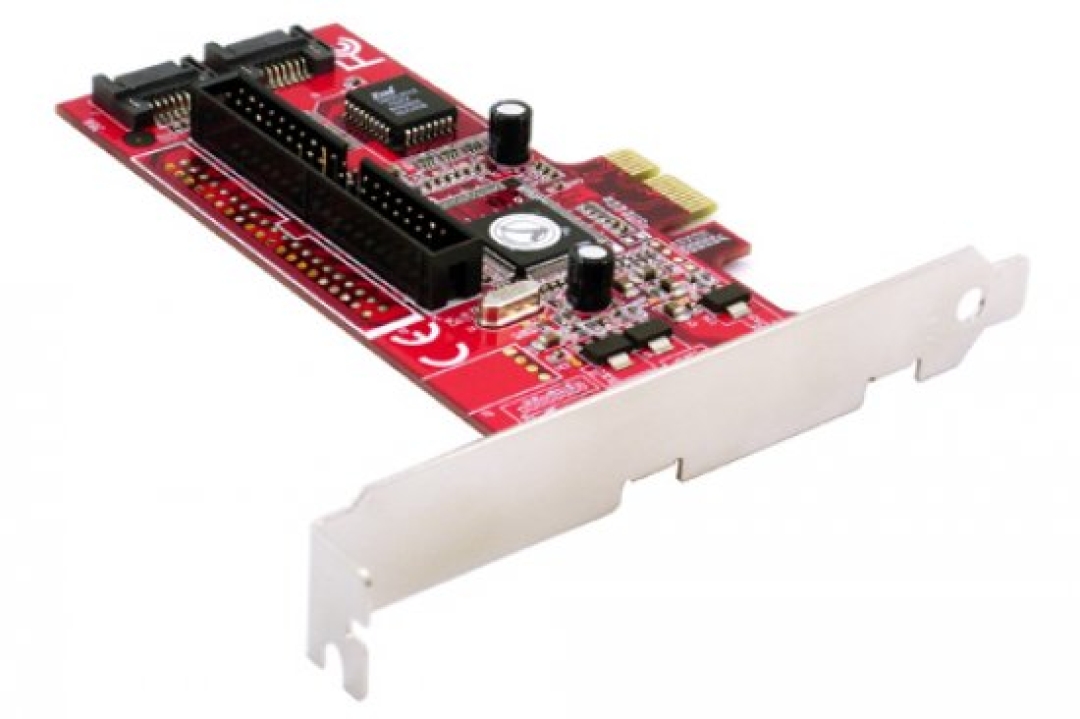

JMICRON JMB363 SATA II & IDE PCI EXPRESS CARD THE SATA PCI EXPRESS CARD PROVIDES TWO-PORT SATA II AND ONE-PORT ULTAR ATA CONNECTIVITY.THIS JMB363 CHIPSET SUPPORT BOTH AHCI AND LEGACY IDE CONTROLLER TO INCREASE SYSTEM FEASIBILITY, INCLUDING NATIVE COMMAND QUEUING(NCQ), HOT PLUGGING, PROGRAMMABLE OUTPUT SWING CONTROL TO FIT SATA II GEN2I AND GEN2M (EXTERNAL SATA CONNECTION, ESATA). IT FEATURES PCI EXPRESS BUS AND SERIAL ATA II INTERFACE TO EXPRESS HIGH PERFORMANCE STORAGE DEVICES. PCI INTERFACE 33MHZ OPERATION. SUPPORT PCI 2X MODE SUPPORT PCI NATIVE MODES. COMPLIES WITH PCI LOCAL BUS SPECIFICATION REVISION 2.2 ULTRA ATA-133/IDE INTERFACE: SINGLE CHANNEL MASTER MODE HARD DISK CONTROLLER SUPPORTING TWO (FOUR)ENHANCED IDE DEVICES. REDEFINED BUS MASTER PROGRAMMING INTERFACE FOR IDE CONTROLLERS TO SUPPORT UP TO FOUR BUSMASTERS IN A SINGLE . SUPPORTS ATA PIO MODE, MULTI-WORD DMA-MODE 2 DRIVERS AND ULTRADMA-MODE 6. EXTENSION TO ULTRADMA-133 INTERFACE FOR UP TO 133MB/SEC TRANSFER RATE. COMPLIES WITH ATA/ATA-6 SERIAL ATA INTERFACE COMPLIES WITH SERIAL ATA SPECIFICATION REVISION1.0 SUPPORTS INTERNAL PHY, WITH EACH PHY SUPPORTING UP TWO SATA DEVICES THE S-ATA DRIVE TRANSFER RATE IS CAPABLE UP TO 150MB/S PER CHANNEL. DRIVER SUPPORT WINDOW 98SE/ME/NT/2000/XP   JMB363 CONTROLADORA JMICRON JMB363 2 PORTAS SATA II E 1 POR TAGS DE JMB363: CONTROLADORA IDE, CONTROLADORA SATA, SATA 2 CANAIS, SATA PCI EXPRESS, PCI EXPRESS, PCI EXPRESS X1, CONTROLADORA PCI EXPRESS, JMB363, JMICRON, JMICROM, CONTROLADORA RAID, PLACA CONTROLADORA, CONTROLADORA SAS
