Especificações Técnicas

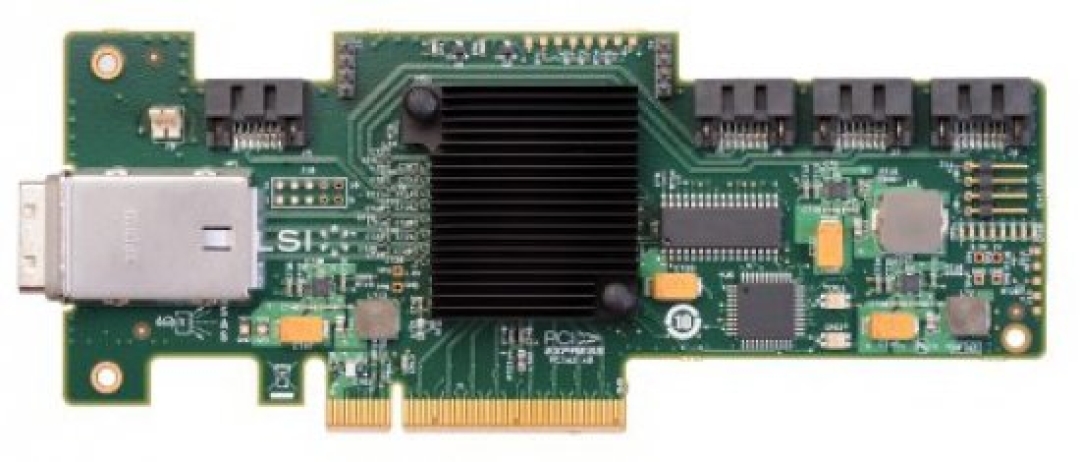

THE IBM 6 GB SAS HOST BUS ADAPTER HAS THE FOLLOWING SPECIFICATIONS:   FOUR INTERNAL SATA CONNECTORS ONE EXTERNAL SAS X4 CONNECTOR (SFF-8088) PCI EXPRESS X8 2.0 HOST INTERFACE SAS CONTROLLER: LSI SAS2008 6 GBPS PER PORT DATA TRANSFER RATE MD2 SMALL FORM FACTOR HIGH PERFORMANCE I/O PROCESSOR: POWERPC 440 @ 533 MHZ UEFI SUPPORT RAID LEVELS : NONE (USES RAID AS PROVIDED BY EXTERNAL DISK ENCLOSURES) MAXIMUM ENDPOINT DEVICES: 512 POWER CONSUMPTION: 13.5 W THE IBM 6 GB SAS HOST BUS ADAPTER HAS THE FOLLOWING KEY FEATURES: CONNECTION TO SUPPORTED INTERNAL AND EXTERNAL TAPE DRIVES CONNECTION TO SUPPORTED EXTERNAL STORAGE CONTROLLERS POWER MANAGEMENT SUPPORT SUPPORT FOR SSP, SMP, STP AND SATA PROTOCOLS - FLEXIBLE TO OPTIMIZE COSTS ENVIRONMENTALLY FRIENDLY DUE TO LOW POWER CONSUMPTION LSI FUSION-MPT ARCHITECTURE DRIVES MORE THAN 290,000 I/OS PER SECOND END-TO-END CRC WITH ADVANCED ERROR REPORTING T-10 PROTECTION MODEL FOR EARLY DETECTION OF AND RECOVERY FROM DATA CORRUPTION SPREAD SPECTRUM CLOCKING FOR EMI REDUCTIONS 46M0907 CONTROLADORA IBM 6GB SAS HBA LSI SAS2008 MAIORES DETALHES DE 46M0907 NO SITE DO FABRICANTE: HTTP://WWW.REDBOOKS.IBM.COM/ABSTRACTS/TIPS0776.HTML TAGS DE 46M0907: 46M0907, SYSTEM X3100 M4, X3200 M2, X3200 M3, X3250 M2, X3250 M3, X3250 M4, X3350, X3400, X3400 M2, X3455, X3500, X3500 M2, X3550, X3550 M2, X3550 M3, X3620 M3, X3630 M3, X3650, X3650 M2, X3650 M3, X3655, X3755, X3850 M2, X3850 X5, X3950 M2, X3950 X5, CONTROLADORA HBA, CONTROLADORA DE BACKUP, PLACA HBA

Informações Adicionais
