Especificações Técnicas

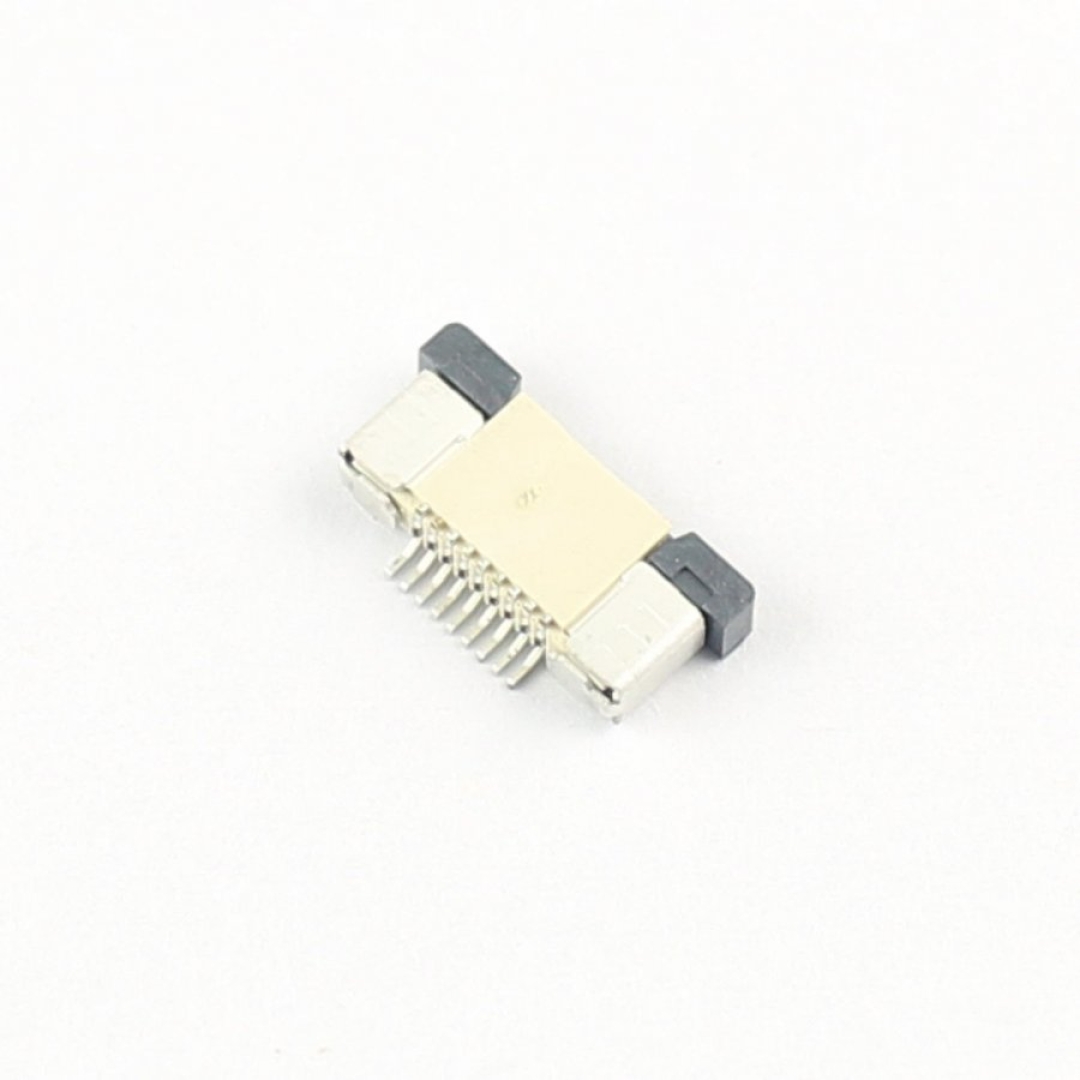

OUTROS PART NUMBERS PARA ESTE COMPONENTE: CONECTOR PITCH:0.5MM TYPE: TOP CONTACT NUMBER OF PIN: 9 PIN MATERIAL DESCRIPTION: TERMINAL: PHOSPHOR BRONZE TIN-PLATED FITTING NAIL: BRASS TIN-PLATED HOUSING: THERMOPLASTIC(UL94V-O) SLIDER:THERMOPLASTIC(UL94V-O) ELECTRICAL CHARACTERISTICS: CURRENT RATING: 0.4A AC/DC VOLTAGE RATING: 50V AC/DC TEMPERATURE RANGE: -25 TO 85 DEGREES WITHSTAND VOLTAGE: 500V AC/MINUTE CONTACT RESISTANCE: -20M OHM INSULATION RESISTANCE: -500M OHM RELATIVE HUMIDITY:93% 40- PACKAGE INCLUDED: FPC FFC 0.5MM PITCH 9 PIN DRAWER TYPE FLAT CABLE CONNECTOR TOP CONTACT 0.5A-WTS-NP CONECTOR FPC FFC 0.5MM PITCH 9 PINOS TAGS DE 0.5A-WTS-NP: 0.5A-WTS-NP, 05AWTSNP, CONECTOR 9 PINOS LAPTOP, LAPTOP 9PIN CONNECTOR FLAT, CONECTOR FLAT DE 9 PINOS PARA NOTEBOOK, NOTEBOOK 9PIN CONECTOR, LAPTOP 9PIN CONNECTOR, CONECTOR DE 9 VIAS FLAT, CONECTOR DE CABO FLAT DE 9 VIAS PARA NOTEBOOK, FPC FFC 0.5MM PITCH 10 PIN DRAWER TYPE FLAT CABLE CONNECTOR BOTTOM CONTACT, OEM

Informações Adicionais
