Especificações Técnicas

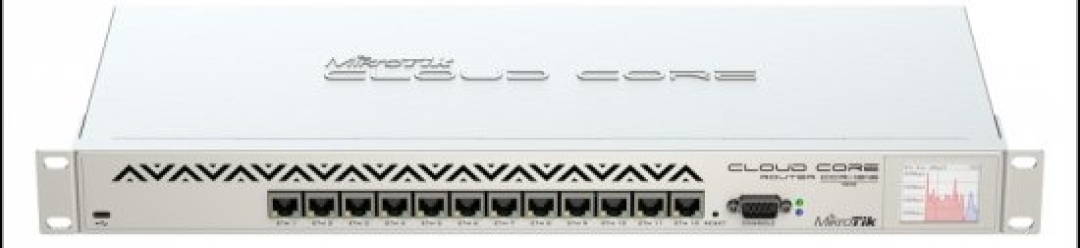

SPECIFICATIONS: DETAILS PRODUCT CODE CCR101612G CPU NOMINAL FREQUENCY 1.2 GHZ CPU CORE COUNT 16 ARCHITECTURE TILE GX SIZE OF RAM 2 GB 10/100 ETHERNET PORTS 0 10/100/1000 ETHERNET PORTS 12 MINIPCI SLOTS 0 MINIPCIE SLOTS 0 NUMBER OF USB PORTS 1 POWER JACK 1 SUPPORTED INPUT VOLTAGE 13 V 28 V POE OUT NO POE IN NO VOLTAGE MONITOR YES CPU TEMPERATURE MONITOR YES PCB TEMPERATURE MONITOR NO DIMENSIONS 355X145X55MM OPERATING SYSTEM ROUTEROS V6 (64BIT) OPERATING TEMPERATURE RANGE MIN AMBIENT 10C; MAX AMBIENT TEMPERATURE 50C @1.2GHZ; 70C @1GHZ CPU CORE FREQUENCY LICENSE LEVEL 6 ANTENNA GAIN DBI NO CURRENT MONITOR YES CPU TLR401680CG12CEA3A MAX POWER CONSUMPTION 48W SFP PORTS 0 SFP PORTS 0 USB SLOT TYPE MICROUSB TYPE AB NUMBER OF CHAINS 0 SERIAL PORT RS232 PERFORMANCE TEST RESULTS: CCR101612G TILE 16 CORE MAX POSSIBLE THROUGHPUT TEST MODE CONFIGURATION 1518 BYTE 512 BYTE 64 BYTE KPPS MBPS KPPS MBPS KPPS MBPS BRIDGING NONE (FAST PATH) 974.0 11,828.3 2,817.0 11,538.4 15,244.5 7,805.2 BRIDGING 25 BRIDGE FILTER RULES 974.0 11,828.3 1,981.6 8,116.6 2,101.5 1,076.0 ROUTING NONE (FAST PATH) 974.0 11,828.3 2,817.0 11,538.4 13,186.3 6,751.4 ROUTING 25 SIMPLE QUEUES 974.0 11,828.3 2,809.0 11,505.7 3,274.0 1,676.3 ROUTING 25 IP FILTER RULES 974.0 11,828.3 1,191.4 4,880.0 1,298.8 665.0 CCR1016-12G MIKROTIK CLOUD CORE ROUTER RACK 1U TAGS DE CCR1016-12G: 12 PORTAS GIGABIT, CLOUD ROUTER, CCR1016, 1016-12G, CCR1016-12G, 12 PORTAS GIGABIT CCR1016, MIKROTIK CLOUD, MIKROTIK 1.2GHZ, MIKROTIK RACK 1U, MIKROTIK POE, TLR4-01680CG-12CE-A3A
