Especificações Técnicas

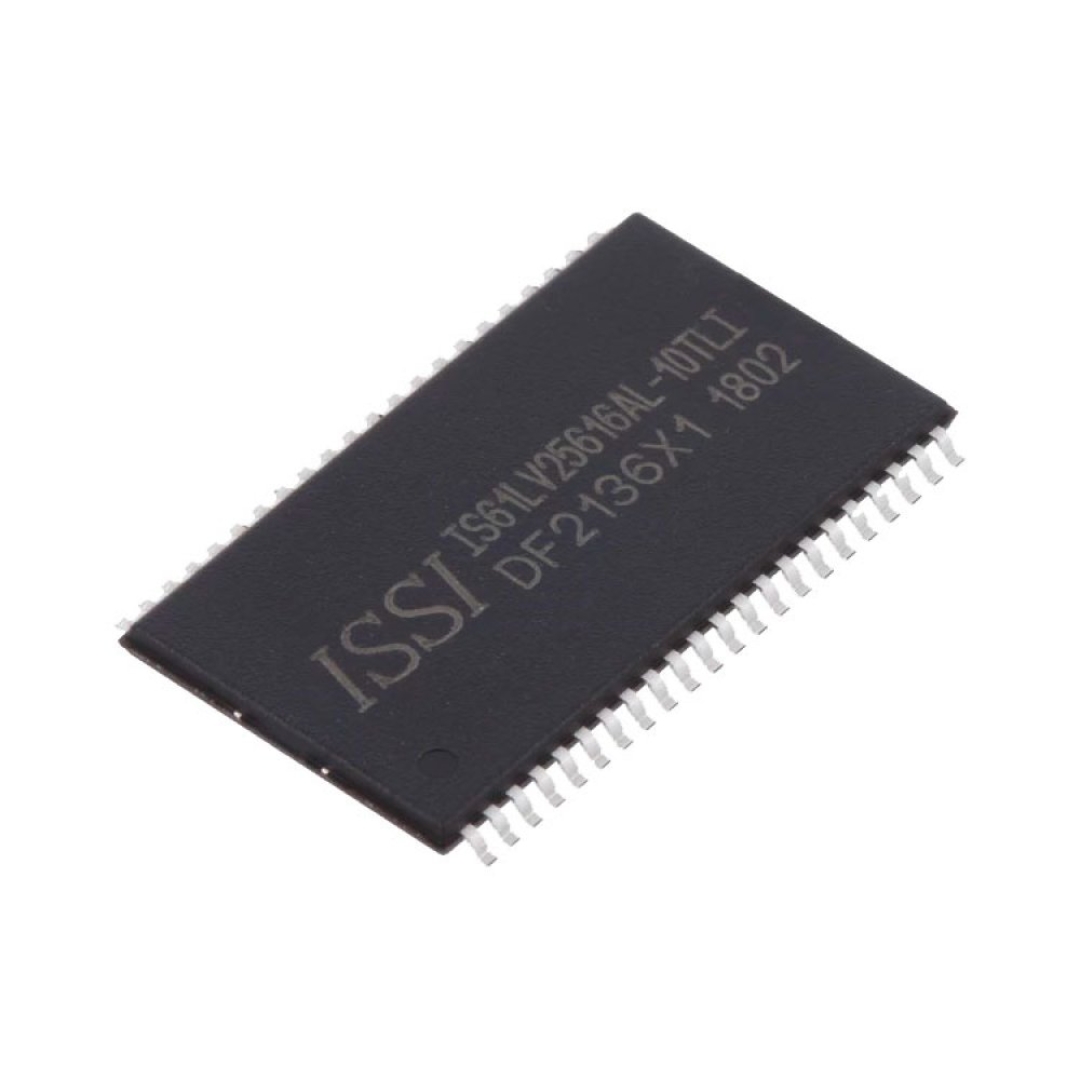

OUTROS PART NUMBERS PARA ESTE COMPONENTE: IS61LV25616AL-10TLI DESCRIPTION:   - THE ISSI IS61LV25616AL IS A HIGH-SPEED, 4,194,304-BIT STATIC RAM ORGANIZED AS 262,144 WORDS BY 16 BITS. IT IS FABRICATED USING ISSIS HIGH-PERFORMANCE CMOS TECHNOLOGY. THIS HIGHLY RELIABLE PROCESS COUPLED WITH INNOVATIVE CIRCUIT DESIGN TECHNIQUES, YIELDS HIGH-PERFORMANCE ANDLOW POWER CONSUMPTION DEVICES.  - WHEN CE IS HIGH (DESELECTED), THE DEVICE ASSUMES A STANDBY MODE AT WHICH THE POWER DISSIPATION CAN BE REDUCED DOWN WITH CMOS INPUT LEVELS. - EASY MEMORY EXPANSION IS PROVIDED BY USING CHIP ENABLE AND OUTPUT ENABLE INPUTS, CE AND OE. THE ACTIVE LOW WRITE ENABLE (WE) CONTROLS BOTH WRITING AND READING OF THE MEMORY. A DATA BYTE ALLOWS UPPER BYTE (UB) AND LOWER BYTE (LB) ACCESS. - THE IS61LV25616AL IS PACKAGED IN THE JEDEC STANDARD 44-PIN 400-MIL SOJ, 44-PIN TSOP TYPE II, 44-PIN LQFP AND 48-PIN MINI BGA (8MM X 10MM).       MANUFACTURER: ISSI PRODUCT CATEGORY: SRAM     MEMORY SIZE: 4 MBIT ORGANIZATION: 256 K X 16 ACCESS TIME: 10 NS MAXIMUM CLOCK FREQUENCY: - INTERFACE TYPE: PARALLEL SUPPLY VOLTAGE - MAX: 3.6 V SUPPLY VOLTAGE - MIN: 3.135 V SUPPLY CURRENT - MAX: 15 MA MINIMUM OPERATING TEMPERATURE: - 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: TSOP-44 PACKAGING: TRAY BRAND: ISSI DATA RATE: SDR MOISTURE SENSITIVE: YES NUMBER OF PORTS: 1 PRODUCT TYPE: SRAM SERIES: IS61LV25616AL IS61LV25616AL CI SRAM 4MB ASYNC 256KX1610NS 3.3V 44PIN TSOP-44 MAIORES DETALHES DE IS61LV25616AL NO SITE DO FABRICANTE: HTTPS://WWW.ISSI.COM/WW/PDF/61LV25616AL.PDF TAGS DE IS61LV25616AL: IS61LV25616AL, IS61LV25616AL-10TLI, 256K X 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V SUPPLY

Informações Adicionais
