Especificações Técnicas

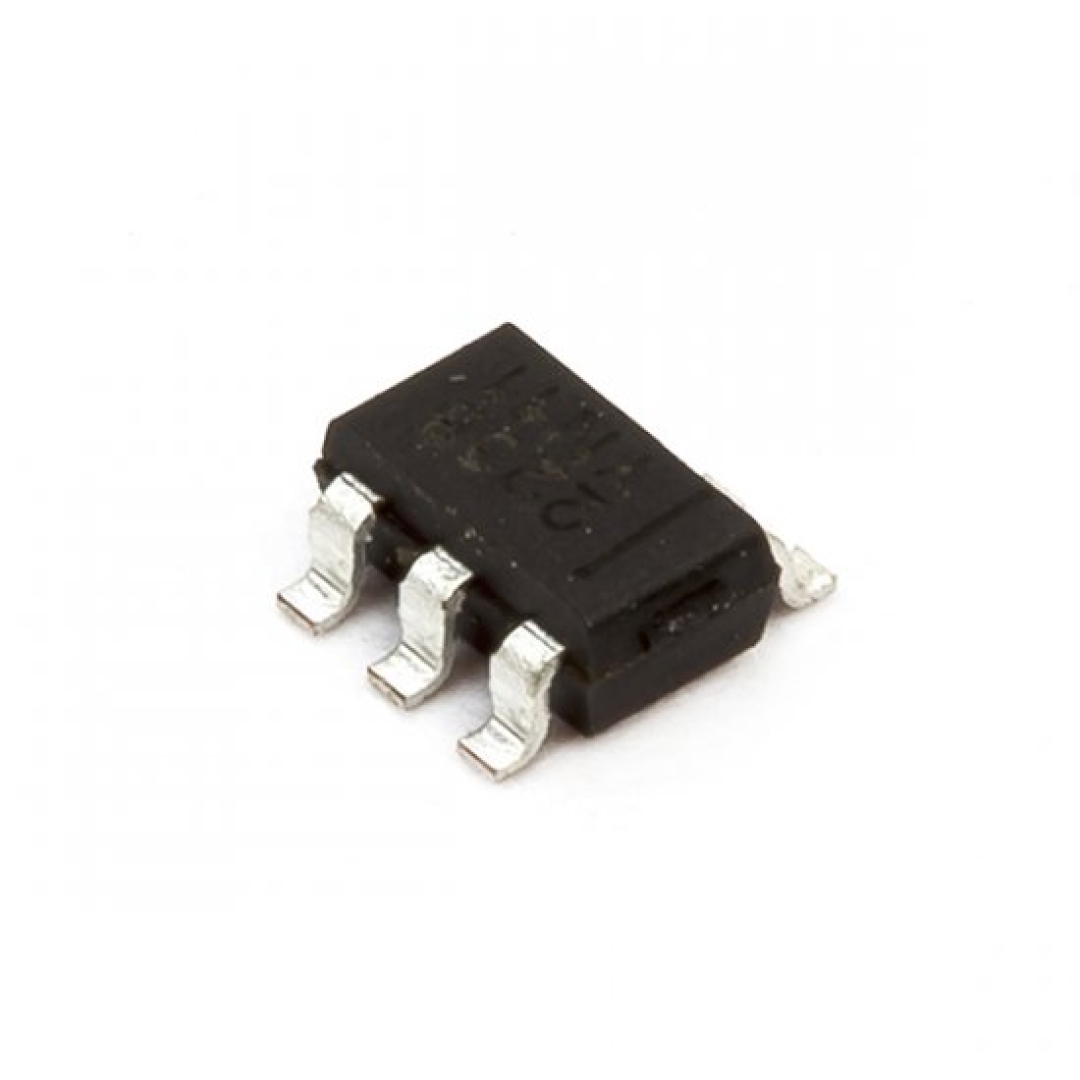

FEATURES OPERATING VOLTAGE 2.0V~5.5V OPERATING CURRENT @VDD=3V, NO LOAD AT LOW POWER MODE TYPICAL 1.5UA, MAXIMUM 3.0UA THE RESPONSE TIME MAX 220MS AT LOW POWER MODE @VDD=3V SENSITIVITY CAN ADJUST BY THE CAPACITANCE(0~50PF) OUTSIDE   STABLE TOUCHING DETECTION OF HUMAN BODY FOR REPLACING TRADITIONAL DIRECT SWITCH KEY   PROVIDES LOW POWER MODE PROVIDES DIRECT MODE TOGGLE MODE BY PAD OPTION(TOG PIN) Q PIN IS CMOS OUTPUT   ALL OUTPUT MODES CAN BE SELECTED ACTIVE HIGH OR ACTIVE LOW BY PAD OPTION(AHLB PIN) AFTER POWER-ON HAVE ABOUT 0.5SEC STABLE-TIME, DURING THE TIME DO NOT TOUCH THE KEY PAD, AND THE IS DISABLED   AUTO CALIBRATION FOR LIFE AT LOW POWER MODE THE RE-CALIBRATION PERIOD IS ABOUT 4.0SEC NORMALLY, WHEN KEY DETECTED TOUCH AND RELEASED TOUCH, THE AUTO RE-CALIBRATION WILL BE REDOING AFTER ABOUT 16SEC FROM RELEASING KEY   THE SENSITIVITY OF TTP223N-BA6 IS BETTER THAN TTP223-BA6-S. BUT THE STABILITY OF TTP223N-B A6 IS WORSE THAN TTP223-BA6-S. APPLICATION - WIDE CONSUMER PRODUCTS - BUTTON KEY REPLACEMENT TTP223B CI SENDOR TOUCH CAPACITIVO (PACK COM 10 UNIDADES) TAGS DE TTP223B: TTP223-BA6, 223B, TTP223B, TTP223-B, TTP223, TTP 223, TRANSISTOR 223B, CI 223, TTP223 IC, SOT23-6, SOT23 6, SENSOR TOUCH CAPACITIVO TTP223B, 1 KEY TOUCH PAD DETECTOR IC

Informações Adicionais
