Especificações Técnicas

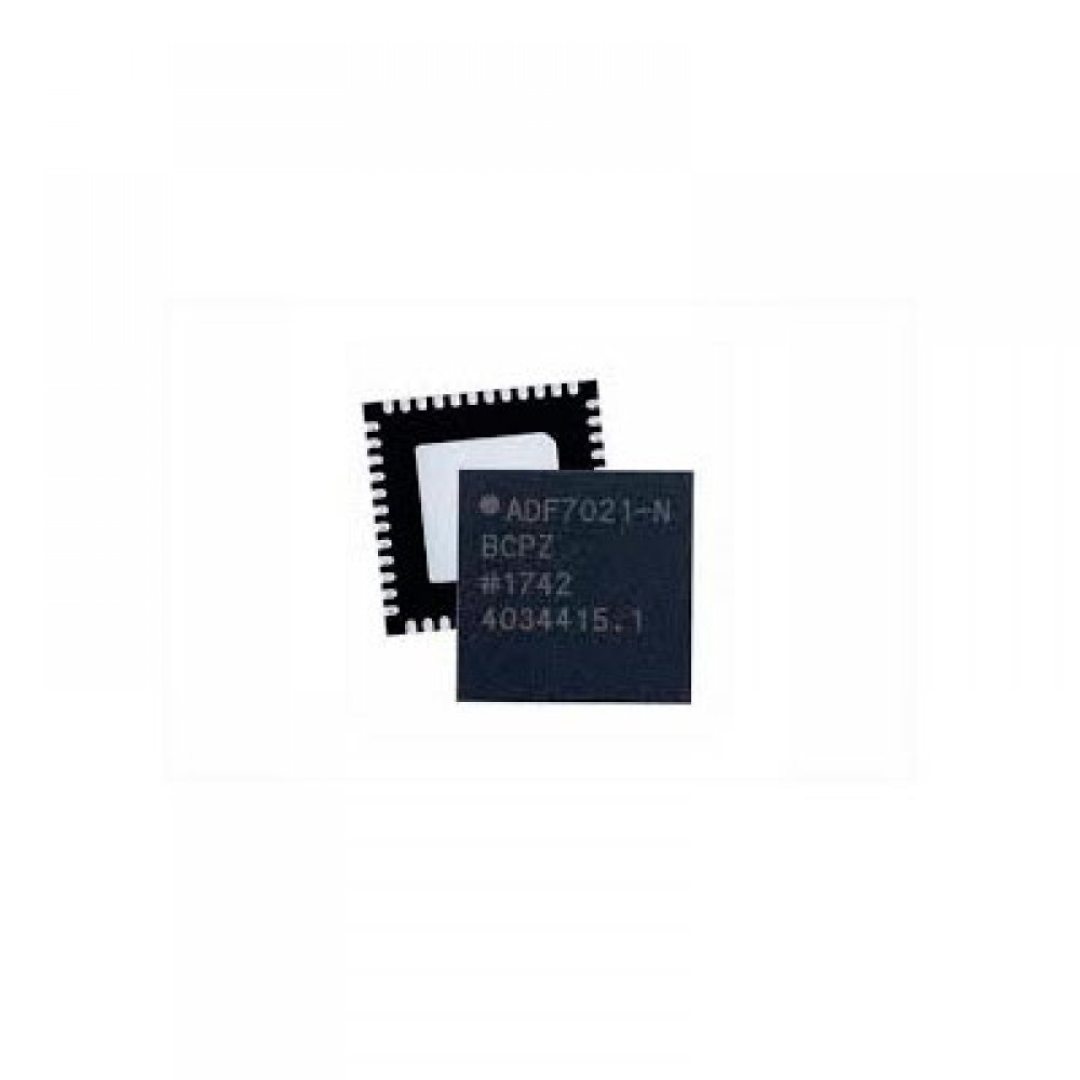

FEATURES LOW POWER, NARROW-BAND TRANSCEIVER FREQUENCY BANDS USING DUAL VCO  80 MHZ TO 650 MHZ  862 MHZ TO 950 MHZ MODULATION SCHEMES 2FSK, 3FSK, 4FSK, MSK SPECTRAL SHAPING GAUSSIAN AND RAISED COSINE FILTERING   DATA RATES SUPPORTED 0.05 KBPS TO 32.8 KBPS 2.3 V TO 3.6 V POWER SUPPLY   PROGRAMMABLE OUTPUT POWER 16 DBM TO 13 DBM IN 63 STEPS   AUTOMATIC PA RAMP CONTROL RECEIVER SENSITIVITY -130 DBM AT 100 BPS, 2FSK -122 DBM AT 1 KBPS, 2FSK - 113 DBM AT 25 KBPS, RAISED COSINE 2FSK   APPLICATIONS NARROW-BAND STANDARDS ETSI EN 300 220, FCC PART 15, FCC PART 90, FCC PART 95, ARIB STD-T67 LOW COST, WIRELESS DATA TRANSFER REMOTE CONTROL/SECURITY SYSTEMS WIRELESS METERING PRIVATE MOBILE RADIO WIRELESS MEDICAL TELEMETRY SERVICE (WMTS) KEYLESS ENTRY HOME AUTOMATION PROCESS AND BUILDING CONTROL PAGERS ADF7021-NBCPZ-RL7 CI RF TRANSCEIVER HIGH PERFORMANCE NARROW BAND MAIORES DETALHES DE ADF7021-NBCPZ-RL7 NO SITE DO FABRICANTE: HTTPS://WWW.ANALOG.COM/MEDIA/EN/TECHNICAL-DOCUMENTATION/DATA-SHEETS/ADF7021.PDF TAGS DE ADF7021-NBCPZ-RL7: ADF7021-NBCPZ-RL7, ADF7021-NBCPZ, ADF7021, ADF7021-N, ADF7021-VBCPZ
