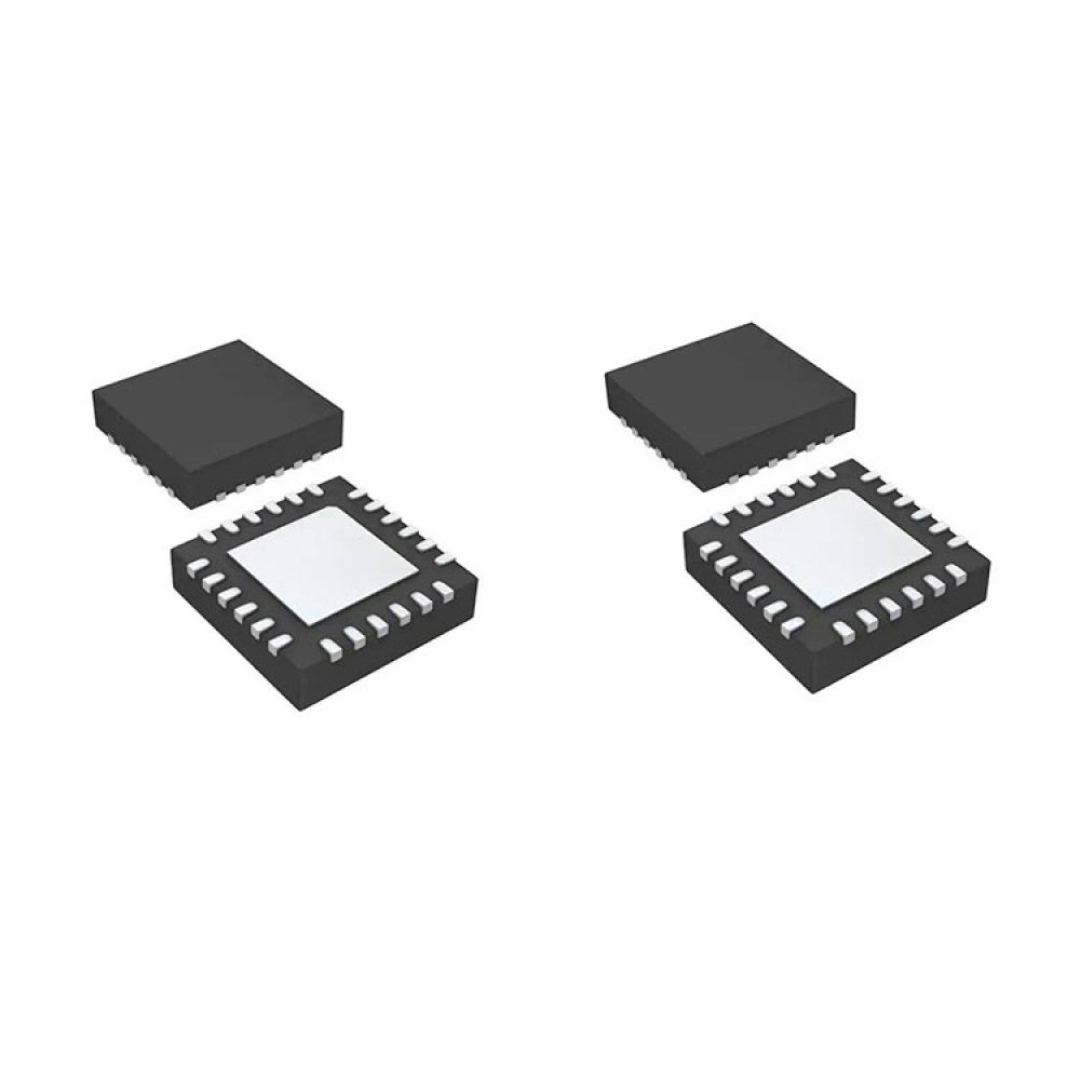

CI PS8713 USB 3.0 BIDIRECTIONAL REDRIVER (KIT 2)

REFERÊNCIA: 8713B | CÓDIGO: 185345 | MARCA: PARADE

CI PS8713 USB 3.0 BIDIRECTIONAL REDRIVER (KIT 2)

REFERÊNCIA: 8713B | CÓDIGO: 185345 | MARCA: PARADE

R$200,38

à vista no Pix, boleto ou em 10x cartão de crédito



Calcular frete e prazo

Carregando...

Especificações Técnicas

OUTROS PART NUMBERS PARA ESTE COMPONENTE: PS8713BTQFN24GTR2, PS8713B THE PS8713 IS A SINGLE PORT, BIDIRECTIONAL USB 3.0 REDRIVER DEVICE THAT EXHIBITS LOW POWER CONSUMPTION.  IT IS DESIGNED TO BE PLACED WITHIN THE USB 3.0 HIGH SPEED SIGNAL PATH TO IMPROVE SIGNAL INTEGRITY, ENABLING A LONGER PHYSICAL MEDIA LINK, FOR EXAMPLE, AND/OR TO IMPROVE RELIABILITY.  THE DEVICE-S BIDIRECTIONAL CONFIGURATION PROVIDES A HIGH LEVEL OF SYSTEM INTEGRATION.   CONFIGURABLE ON-CHIP INPUT EQUALIZATION AND OUTPUT DE-EMPHASIS CIRCUITS PROVIDE IMPROVED SYSTEM SIGNAL INTEGRITY.  IN ADDITION TO SUPPORTING FULL USB 3.0 POWER MANAGEMENT, OTHER AUTOMATIC POWER SAVING FEATURES ARE INCLUDED SUCH AS POWER REDUCTION BETWEEN DATA PACKETS, A SUSPEND MODE TRIGGERED BY USB DEVICE UNPLUG OR DISABLE THROUGH RX TERMINATION SENSING, AND POWER DOWN.   KEY FEATURES BIDIRECTIONAL ONE-CHANNEL USB 3.0 REDRIVER (5.0GBPS) LOW POWER CONSUMPTION IN ACTIVE, STANDBY, SUSPEND (NO-CONNECT), AND POWER DOWN MODES SUPPORTS LOW FREQUENCY PERIODIC SIGNALING (LFPS) WITH FAST LFPS ENTER/EXIT TIME SUPPORTS FULL USB 3.0 POWER MANAGEMENT WITH ADDITIONAL AUTOMATIC POWER SAVING S CONFIGURABLE INPUT EQUALIZATION AND OUTPUT DE-EMPHASIS LEVELS SUPPORTS HOT PLUG WITH AUTOMATIC RECEIVER DETECT INTEGRATED 50- TERMINATION RESISTORS ON INPUT AND OUTPUT IN-LINE SIGNAL CONNECTION PINS FOR FLOW-THROUGH PCB LAYOUT SINGLE POWER SUPPLY PS8713A: SINGLE 1.5V SUPPLY PS8713B: SINGLE 3.3V SUPPLY 4X4MM 24-PIN TQFN HALOGEN FREE ROHS PACKAGE 0° TO 85°C OPERATING TEMPERATURE RANGE ESD: HUMAN BODY MODEL AT 8 KV E IEC 6100-4-2, 5KV DIRECT PIN ZAPPING APPLICATIONS DESKTOP AND MOBILE PERSONAL COMPUTERS DOCKING STATIONS SERVERS WORKSTATIONS DATA STORAGE SYSTEMS 8713B CI PS8713 USB 3.0 BIDIRECTIONAL REDRIVER (KIT 2) MAIORES DETALHES DE 8713B NO SITE DO FABRICANTE: HTTPS://WWW.PARADETECH.COM/PRODUCTS/PS8713/ TAGS DE 8713B: PS8713BTQFN24GTR2, 8713B, PS8713B

Informações Adicionais

Referência 8713B
Código do Fabricante 8713B
Código Southsafe 185345
Marca PARADE
Unidade de Venda
Peso 1.000 Kg
